Ecs B350AM4-M2 V1.0A mATX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
Ecs B350am4-M2 V1.0A Matx Motherboard
Ecs B350am4-M2 V1.0A Matx Motherboard
Ecs B350am4-M2 V1.0A Matx Motherboard
Ecs B350am4-M2 V1.0A Matx Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDSKB350AM4M2N
BrandEcs - Elitegroup
ModelB350AM4-M2 V1.0A
Compatible Part NumbersB350AM4-M2 89-206-MC3110
CategoryAmd Socket Am4 Motherboard
ConditionBrand New

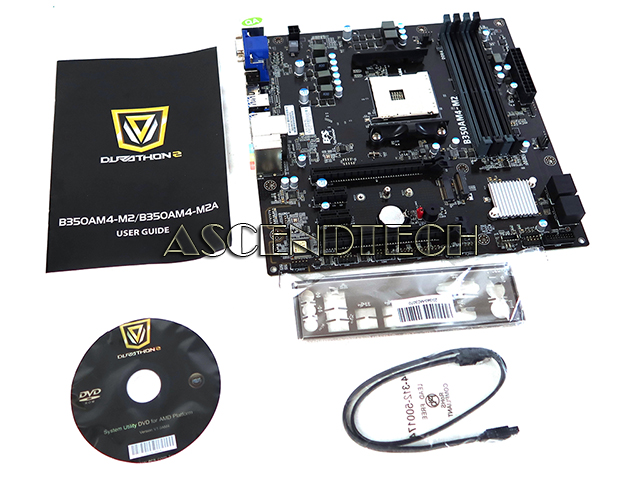

Condition DescriptionPlease note, this item comes with I/O Shield Backplate, SATA Cable, System Utility DVD, and User Guide.

Description

ECS Elitegroup B350AM4-M2 V1.0A AMD Chipset B350 Socket AM4 DDR4 D-Sub DP HDMI USB SATA 6Gb/s Micro ATX Desktop Motherboard.

Chipset: AMD B350
Socket: AMD AM4
Max Supported Memory: 64GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Pins: 288
Storage Interface: 4x SATA III 6Gb/s
RAID Support: RAID0, RAID1, RAID10
Network/Communications: RTL 8111GN Gigabit Fast Ethernet Controller
Audio: Realtek ALC662 6-channel HD audio
Connectors: 1x 24-pin ATX Power Supply Connector; 1x 4-pin Power Connector for Graphics; 1x 4-pin CPU FAN Connector; 1x 4-pin SYS FAN Connector; 1x 4-pin SYS FAN Connector With Smart Fan; 1x Front Panel Switch/LED Header; 1x Front Panel Audio Header; 1x Onboard Buzzer (Support Additional 2 USB Ports); 1x USB 3.2 Gen 1x1 Header (Support Additional 2 USB Ports); 2x USB 2.0 Header (Support Additional 3 USB Ports); 1x CLR CMOS Header; 4x SATA III 6Gb/s Connector; 2x Serial Port Header (COM); 1x Parallel Port Header (LPT)

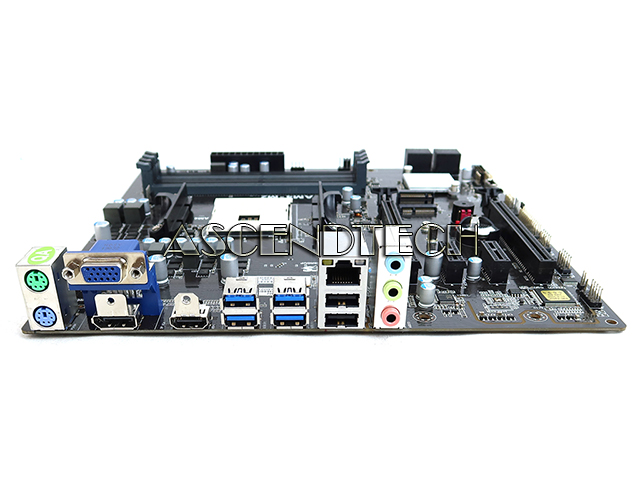

Input/Output Ports: 1x PS/2 Keyboard Connector; 1x PS/2 Mouse Connector; 1x Audio Port (Line Out, Line In, Mic In); 1x LAN RJ-45 port; 1x HDMI; 1x DP; 1x D-Sub (VGA); 4x USB 3.2 Gen 1x1; 2x USB 2.0;
Expansion Slots: 1x PCI Express X16 Gen 3.0; 1x PCI Express X16 Gen 2.0 (Runs At x2); 2x PCI Express X1 Gen 2.0; 1x M.2 slot for SSD (For 2260/2280 SATA/PCIE X2 SSD); 1x M.2 slot for WiFi PCIe Gen 2
Height: 244 mm
Width: 244 mm
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit

Additional Features:

- Windows 10 Workable support
- 2-Way multi-graphics solution
- Supports 3 independent displays
- 6 Phase Power Design
- Applied 100% Solid capacitor design to maximize component reliability
- ECS Durathon Technology ensure the stability, reliability and performance of system.
- ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
- Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
- Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
- Dual Display design for multiple output support
- Supports HDMI 1.4a Technology (resolution up to 1920X1200) and HDCP function
- Supports DP 1.2 Technology
- Supports AMD Dual Graphics Technology
- ECS Intelligent EZ Utility : eDLU, eSF

Additional Specifications:

System Bios:

- AMI BIOS with 128 MB SPI Flash ROM
- F7 hot key for boot up devices option
- Dual Display
- Support ECS EZ BIOS
- Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
- Multi-Language BIOS
- Audio, LAN, can be disabled in BIOS
- Supports PgUp clear CMOS Hotkey

Certifications:

- CE/FCC Certification
- ErP/EuP Certification
- WHCK Certification

Supported processors:

SocketFamilyProcessorWattageFrequencyCacheSince BIOS
Socket AM4MatisseRyzen 5 360065W3.60GHz32MB2019/06/21
Socket AM4MatisseRyzen 5 3600X95W3.80GHz32MB2019/06/21
Socket AM4MatisseRyzen 5 PRO 360065W3.60GHz32MB2019/06/21
Socket AM4MatisseRyzen 7 3700X95W3.60GHz32MB2019/06/21
Socket AM4PicassoAthlon 300GE35W3.40GHz4MB2019/06/21
Socket AM4PicassoAthlon 320GE35W3.50GHz4MB2019/06/21
Socket AM4PicassoAthlon PRO 300GE35W3.40GHz4MB2019/06/21
Socket AM4PicassoRyzen 3 3200G65W3.60GHz4MB2019/06/21
Socket AM4PicassoRyzen 3 3200GE35W3.30GHz4MB2019/06/21
Socket AM4PicassoRyzen 3 PRO 3200G65W3.60GHz4MB2019/06/21
Socket AM4PicassoRyzen 3 PRO 3200GE35W3.30GHz4MB2019/06/21
Socket AM4PicassoRyzen 5 3400G65W3.70GHz4MB2019/06/21
Socket AM4PicassoRyzen 5 3400GE35W3.30GHz4MB2019/06/21
Socket AM4PicassoRyzen 5 PRO 3400G65W3.70GHz4MB2019/06/21
Socket AM4PicassoRyzen 5 PRO 3400GE35W3.30GHz4MB2019/06/21
Socket AM4Pinnacle RidgeRyzen 3 2300X65W3.50GHz8MB2019/06/21
Socket AM4Pinnacle RidgeRyzen 5 2500X65W3.60GHz8MB2019/06/21
Socket AM4Pinnacle RidgeRyzen 5 260065W3.40GHz16MB2019/06/21
Socket AM4Pinnacle RidgeRyzen 5 2600E45W3.10GHz16MB2019/06/21
Socket AM4Pinnacle RidgeRyzen 5 2600X95W3.60GHz16MB2019/06/21
Socket AM4Pinnacle RidgeRyzen 5 PRO 260065W3.40GHz16MB2019/06/21
Socket AM4Pinnacle RidgeRyzen 7 270065W3.20GHz16MB2019/06/21
Socket AM4Pinnacle RidgeRyzen 7 2700E45W2.80GHz16MB2019/06/21
Socket AM4Pinnacle RidgeRyzen 7 PRO 270065W3.20GHz16MB2019/06/21
Socket AM4Pinnacle RidgeRyzen 7 PRO 2700X95W3.60GHz16MB2019/06/21
Socket AM4Raven RidgeAthlon 200GE35W3.20GHz4MB2019/06/21
Socket AM4Raven RidgeAthlon 220GE35W3.40GHz4MB2019/06/21
Socket AM4Raven RidgeAthlon 240GE35W3.50GHz4MB2019/06/21
Socket AM4Raven RidgeAthlon PRO 200GE35W3.20GHz4MB2019/06/21
Socket AM4Raven RidgeRyzen 3 2200G65W3.50GHz4MB2019/06/21
Socket AM4Raven RidgeRyzen 3 2200GE35W3.20GHz4MB2019/06/21
Socket AM4Raven RidgeRyzen 3 PRO 2200G65W3.50GHz4MB2019/06/21
Socket AM4Raven RidgeRyzen 5 2400G65W3.60GHz4MB2019/06/21
Socket AM4Raven RidgeRyzen 5 2400GE35W3.20GHz4MB2019/06/21
Socket AM4Raven RidgeRyzen 5 PRO 2400G65W3.60GHz4MB2019/06/21
Socket AM4Raven RidgeRyzen 5 PRO 2400GE35W3.20GHz4MB2019/06/21
Socket AM4Summit RidgeRyzen 3 1300X65W3.50GHz8MB2019/06/21
Socket AM4Summit RidgeRyzen 3 PRO 130065W3.50GHz8MB2019/06/21
Socket AM4Summit RidgeRyzen 5 PRO 150065W3.50GHz16MB2019/06/21
Socket AM4Summit RidgeRyzen 5 PRO 160065W3.20GHz16MB2019/06/21
