ECS B75H2-M2 V1.0 Micro ATX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

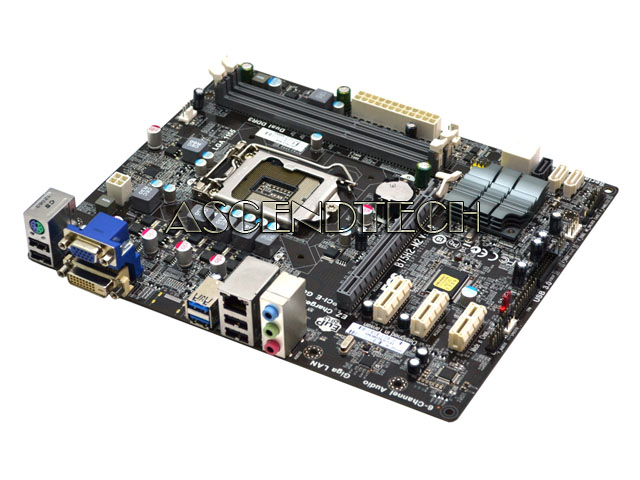

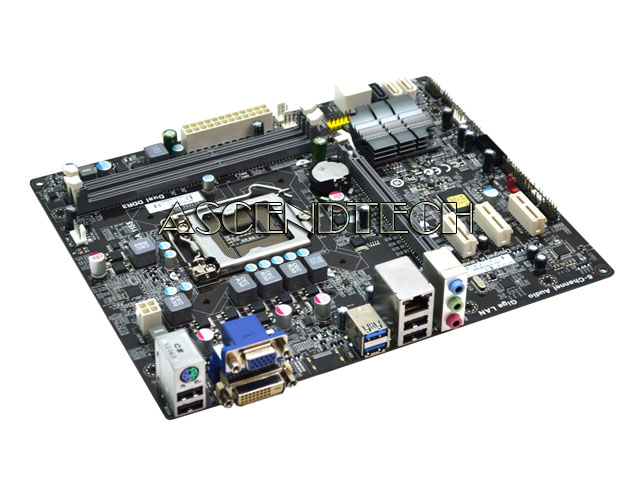

Ecs B75h2-M2 V1.0 Micro Atx Motherboard. Model: B75h2-M2 V1.0 Lga1155
  Enlarge
Ecs B75h2-M2 V1.0 Micro Atx Motherboard. Model: B75h2-M2 V1.0 Lga1155
Ecs B75h2-M2 V1.0 Micro Atx Motherboard. Model: B75h2-M2 V1.0 Lga1155
Ecs B75h2-M2 V1.0 Micro Atx Motherboard. Model: B75h2-M2 V1.0 Lga1155
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSB75H2M2V10
Brand Ecs - Elitegroup
Model B75H2-M2 V1.0 LGA1155
Category Intel Lga1155 Motherboard

Description

ECS B75H2-M2 V1.0 Intel B75 Express Socket LGA1155 Micro ATX Motherboard.





Features:

  • Supports Intel® K Series unlock CPU
  • Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
  • ECS Durathon Technology ensure the stability, reliability and performance of system.
  • ESD Protection prevents computers from electrostatic discharge damage to enhance
        its durability and lifespan
  • ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off
  • Supports Intel® Small Business Advantage (SBA) technology
  • Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi
        language environment
  • ECS MIB III - A friendly interface for overclocking
  • Microsoft Windows 8 Certified
  • Intel ® VRD 12 Ready
  • Supports DirectX® 11 to enhance graphical performance
  • Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
        Insider™
  • Supports Intel® Smart Response, Smart Connect and Rapid Start Technology
  • ECS Intelligent EZ Utility : eBLU, eDLU, eSF
  • Free Bundle: CyberLink Media Suite





    • Specifications:


    CPU

    º Supports new 2nd gen Intel® Core™ family, Pentium, Celeron series processors in LGA1155 socket
    º DMI 5.0GT/s
    º VRD 12.0
    º Solid Capacitor for CPU side
    º Supports Intel® Turbo Boost 2.0 Technology
    º Supports Intel® Hyper-Threading Technology
    º Intel® K Series Unlock CPU Support
    º Please refer to CPU support list for details

    CHIPSET

    º Intel® B75 Express Chipset
    º Supports Intel® Small Business Advantage
    º Intel® Smart Response Technology, Intel® Smart Connect Technology & Intel® Rapid Start Technolog

    GRAPHICS

    º Support Intel® HD Graphics 2000/3000(Intel 2nd gen CPU)
    º Supports DirectX® 11
    º Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
        Insider™
    º Supports OpenGL 3.1(Intel 3rd gen CPU)
    º Supports OpenCL 1.1(Intel 3rd gen CPU)

    MEMORY

    º Dual-channel DDR3 Memory architecture
    º Supports DDR3 1600/1333/1066 non-ECC, Un-buffered SDRAM Memory
    º 2 X 240-pin DDR3 DIMM socket
    º Support up to 32 GB*
    º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
    º Note:Please refer to the latest Memory support list for details

    EXPANSION SLOT

    º 1 X PCI Express X16 Gen 3.0 slot(s)
    º 3 X PCI Express X 1 Gen 2.0 slot(s)

    Storage

    º Support by B75 Express Chipset
        • 1 X Serial ATAIII 6Gb/s
        • 4 X Serial ATAII 3Gb/s
    º Supports NCQ, AHCI and "Hot Plug" functions

    Audio

    º 6-Channel HD audio CODEC
    º Compliant with HD audio specification
    º Realtek ALC662
    ‧Realtek ALC662 6-channel High Definition audio CODEC
    ‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
    ‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
    ‧Emulation of 26 sound environments to enhance gaming experience
    ‧Voice Cancellation and Key Shifting in Karaoke mode
    ‧Compatible with Direct Sound 3D™, A3D™, I3DL2
    º BluRay DVD/HD DVD support

    LAN

    º Realtek 8111E Gigabit Fast Ethernet Controller
    º Wake-On-LAN

    USB

    º Support by B75 Express Chipset
        • 4 X USB3.0 port(s) up to 5Gb/s
          Back Panel 2 port(s)
          Onboard 2 port(s)
        • 8 X USB2.0 port(s) Up to 480 Mb/s
          Back Panel 4 port(s)
          Onboard 4 port(s)
    º ECS EZ Charger (Gray USB header)

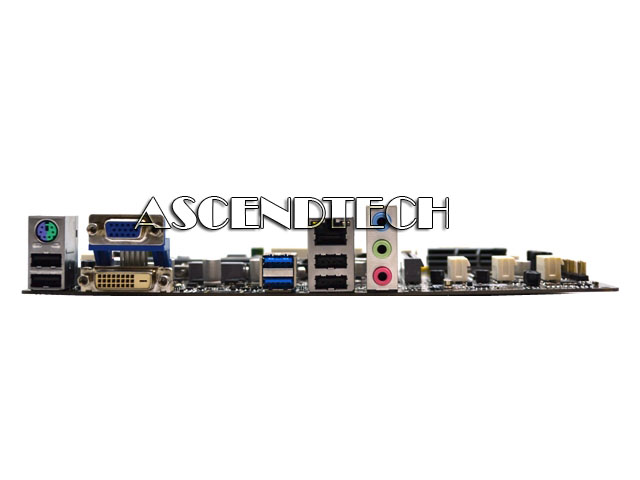

    REAR PANEL I/O

    º 1 X PS/2 combo connector
    º 1 X Audio port (Line Out/Line In/Mic In)
    º 1 X RJ-45 port
    º 1 X DVI-D port(s)
    º 1 X D-Sub (VGA) port(s)
    º 2 X USB3.0 port(s)
    º 4 X USB2.0 port(s)

    CONNECTORS & HEADERS

    º 1 X 24-pin ATX Power Supply connector
    º 1 X 4-pin 12V Power connector
    º 1 X 4-pin CPU_FAN connector
    º 1 X 3-pin SYS_FAN connector
    º 1 X 3-pin PWR_FAN connector
    º 1 X Front Panel switch/LED header
    º 1 X Front panel audio header
    º 1 X Speaker header
    º 1 X USB 3.0 header
        • Support additional 2 USB ports
    º 2 X USB 2.0 header
        • Support additional 4 USB ports
    º 1 X S/PDIF out header
    º 1 X SATA III 6Gb/s connector(s)
    º 4 X SATA II 3Gb/s connector(s)
    º 1 X CLR_CMOS header
    º 1 X Serial port header (COM)
    º 1 X TPM header
    º 1 X Chassis intrusion header

    SYSTEM BIOS

    º AMI BIOS with 64 MB SPI Flash ROM
    º Supports M.I.B III Utility
    º Supports ACPI 3.0 & DMI
    º F7 hot key for boot up devices option
    º Graphic OC Support
    º Support ECS EZ BIOS
    º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
    º Multi-Language BIOS
    º Audio, LAN, can be disabled in BIOS
    º Supports PgUp clear CMOS Hotkey
    º Dual-Monitor function
    º * Adjustable CPU Voltage
    º * Memory Voltage Adjustable

    FORM FACTOR

    º mATX Form Factor
    º  244mm(W)*200mm(H)

    OS Support

    º Windows XP 32-bit
    º Windows XP 64-bit
    º Windows Vista 32-bit
    º Windows Vista 64-bit
    º Windows 7 32-bit
    º Windows 7 64-bit
    º Windows 8 64-bit

    Certifications

    º CE/FCC Certification
    º ErP/EuP Certification
    º WHQL Certification
    º WHCK Certification

    Bundled Software

    º ECS Intelligent EZ Utility : eBLU, eDLU, eSF
    º Free Bundle: CyberLink Media Suite






    CPU Socket List:

    * means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.


    Socket

    Family

    Processor

    Wattage

    Frequency

    Cache

    Stepping

    Since BIOS

    LGA1155

    Intel Core™ i7

    2600 (SNB)

    95W

    3.40GHz

    8MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i7

    2600K (SNB)

    95W

    3.40GHz

    8MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i7

    2600S (SNB)

    65W

    2.80GHz

    8MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i7

    2700K (SNB)

    95W

    3.50GHz

    8MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i7

    3770 (IVB)

    77W

    3.40GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i7

    3770K (IVB)

    77W

    3.50GHz

    8MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i7

    3770K (IVB)

    77W

    3.50GHz

    8MB

    E1

    06/18/2013

    LGA1155

    Intel Core™ i7

    3770S (IVB)

    65W

    3.10GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i5

    2300 (SNB)

    95W

    2.80GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    2310 (SNB)

    65W

    2.90GHz

    6MB

    Q0

    06/18/2013

    LGA1155

    Intel Core™ i5

    2320 (SNB)

    95W

    3.00GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    2380P (SNB)

    95W

    3.10GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    2390T (SNB)

    35W

    2.70GHz

    6MB

    Q0

    06/18/2013

    LGA1155

    Intel Core™ i5

    2400 (SNB)

    95W

    3.10GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    2400S (SNB)

    65W

    2.50GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    2405S (SNB)

    65W

    2.50GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    2450P (SNB)

    95W

    3.20GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    2500 (SNB)

    95W

    3.30GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    2500K (SNB)

    95W

    3.30GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    2500S (SNB)

    65W

    2.70GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    2500T (SNB)

    45W

    2.30GHz

    6MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i5

    3330 (IVB)

    77W

    3.00GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i5

    3330 (IVB)

    77W

    3.00GHz

    6MB

    E1

    06/18/2013

    LGA1155

    Intel Core™ i5

    3330S (IVB)

    65W

    2.70GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i5

    3330S (IVB)

    65W

    2.70GHz

    6MB

    E1

    06/18/2013

    LGA1155

    Intel Core™ i5

    3450 (IVB)

    77W

    3.10GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i5

    3450 (IVB)

    77W

    3.10GHz

    6MB

    E1

    06/18/2013

    LGA1155

    Intel Core™ i5

    3450S (IVB)

    65W

    2.80GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i5

    3470 (IVB)

    77W

    3.20GHz

    6MB

    N0

    05/03/2012

    LGA1155

    Intel Core™ i5

    3470S (IVB)

    65W

    2.90GHz

    6MB

    N0

    05/03/2012

    LGA1155

    Intel Core™ i5

    3470T (IVB)

    35W

    2.90GHz

    3MB

    L1

    05/03/2012

    LGA1155

    Intel Core™ i5

    3475S (IVB)

    65W

    2.90GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i5

    3550 (IVB)

    77W

    3.30GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i5

    3550 (IVB)

    77W

    3.30GHz

    6MB

    E1

    06/18/2013

    LGA1155

    Intel Core™ i5

    3550S (IVB)

    65W

    3.00GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i5

    3550S (IVB)

    65W

    3.00GHz

    6MB

    E1

    06/18/2013

    LGA1155

    Intel Core™ i5

    3570 (IVB)

    77W

    3.40GHz

    6MB

    N0

    05/03/2012

    LGA1155

    Intel Core™ i5

    3570K (IVB)

    77W

    3.40GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i5

    3570K (IVB)

    77W

    3.40GHz

    6MB

    E1

    06/18/2013

    LGA1155

    Intel Core™ i5

    3570S (IVB)

    65W

    3.10GHz

    6MB

    N0

    05/03/2012

    LGA1155

    Intel Core™ i5

    3570T (IVB)

    45W

    2.30GHz

    6MB

    E0

    06/18/2013

    LGA1155

    Intel Core™ i3

    2100 (SNB)

    65W

    3.10GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Core™ i3

    2100T (SNB)

    35W

    2.50GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Core™ i3

    2105 (SNB)

    65W

    3.10GHz

    3 MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i3

    2120 (SNB)

    65W

    3.30GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Core™ i3

    2120T (SNB)

    35W

    2.60GHz

    3MB

    D2

    06/18/2013

    LGA1155

    Intel Core™ i3

    2125 (SNB)

    65W

    3.30GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Core™ i3

    2130 (SNB)

    65W

    3.40GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Core™ i3

    3210 (IVB)

    55W

    3.20GHz

    3MB

    P0

    01/03/2013

    LGA1155

    Intel Core™ i3

    3220T (IVB)

    35W

    2.80GHz

    3MB

    L1

    05/03/2012

    LGA1155

    Intel Core™ i3

    3240 (IVB)

    55W

    3.40GHz

    3MB

    L1

    2013/06/08

    LGA1155

    Intel Core™ i3

    3240T (IVB)

    35W

    2.90GHz

    3MB

    L1

    05/03/2012

    LGA1155

    Intel Core™ i3

    3245 (IVB)

    55W

    3.40GHz

    3MB

    L1

    06/28/2013

    LGA1155

    Intel Core™ i3

    3250 (IVB)

    55W

    3.00GHz

    3MB

    P0

    06/28/2013

    LGA1155

    Intel Core™ i3

    3250T (IVB)

    35W

    3.00GHz

    3MB

    P0

    06/28/2013

    LGA1155

    Intel Pentium

    G2010 (IVB)

    55W

    2.80GHz

    3MB

    P0

    01/03/2013

    LGA1155

    Intel Pentium

    G2020 (IVB)

    55W

    2.90GHz

    3MB

    P0

    01/03/2013

    LGA1155

    Intel Pentium

    G2020T (IVB)

    35W

    2.50GHz

    3MB

    P0

    01/03/2013

    LGA1155

    Intel Pentium

    G2030 (IVB)

    55W

    3.00GHz

    3MB

    P0

    06/28/2013

    LGA1155

    Intel Pentium

    G2030T (IVB)

    35W

    2.60GHz

    3MB

    P0

    06/28/2013

    LGA1155

    Intel Pentium

    G2120T (IVB)

    35W

    2.70GHz

    3MB

    P0

    06/28/2013

    LGA1155

    Intel Pentium

    G2130 (IVB)

    55W

    3.20GHz

    3MB

    P0

    01/03/2013

    LGA1155

    Intel Pentium

    G2140 (IVB)

    55W

    3.30GHz

    3MB

    P0

    06/28/2013

    LGA1155

    Intel Pentium

    G620 (SNB)

    65W

    2.60GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Pentium

    G620T (SNB)

    35W

    2.20GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Pentium

    G630 (SNB)

    65W

    2.70GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Pentium

    G630T (SNB)

    35W

    2.30GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Pentium

    G840 (SNB)

    65W

    2.80GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Pentium

    G850 (SNB)

    65W

    2.90GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Pentium

    G860 (SNB)

    65W

    3.00GHz

    3 MB

    Q0

    06/18/2013

    LGA1155

    Intel Celeron

    G1610 (IVB)

    55W

    2.60GHz

    2MB

    P0

    01/03/2013

    LGA1155

    Intel Celeron

    G1610T (IVB)

    35W

    2.30GHz

    2MB

    P0

    01/03/2013

    LGA1155

    Intel Celeron

    G1620 (IVB)

    55W

    2.70GHz

    2MB

    P0

    01/03/2013

    LGA1155

    Intel Celeron

    G440 (SNB)

    35W

    1.60GHz

    1 MB

    Q0

    06/18/2013

    LGA1155

    Intel Celeron

    G460 (SNB)

    35W

    1.80GHz

    1.5 MB

    Q0

    06/18/2013

    LGA1155

    Intel Celeron

    G470 (SNB)

    35W

    2.00GHz

    1.5MB

    Q0

    06/28/2013

    LGA1155

    Intel Celeron

    G530 (SNB)

    65W

    2.40GHz

    2 MB

    D2

    06/18/2013

    LGA1155

    Intel Celeron

    G530T (SNB)

    35W

    2.00GHz

    2 MB

    Q0

    06/18/2013

    LGA1155

    Intel Celeron

    G540 (SNB)

    65W

    2.50GHz

    2 MB

    Q0

    06/18/2013

    LGA1155

    Intel Celeron

    G550T

    35W

    2.20GHz

    2MB

    D2

    05/03/2012
