ECS B85H3-M LGA1150 DDR3 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

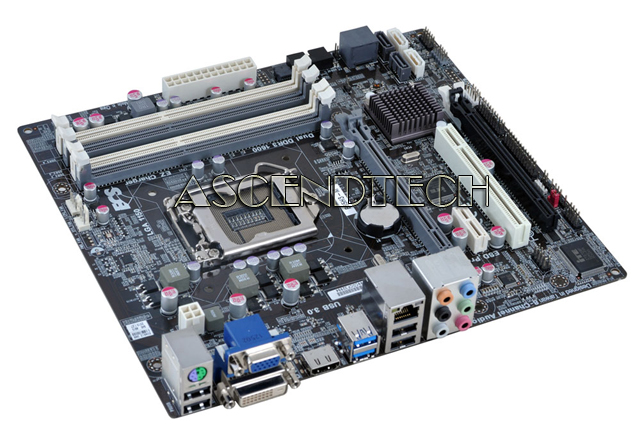

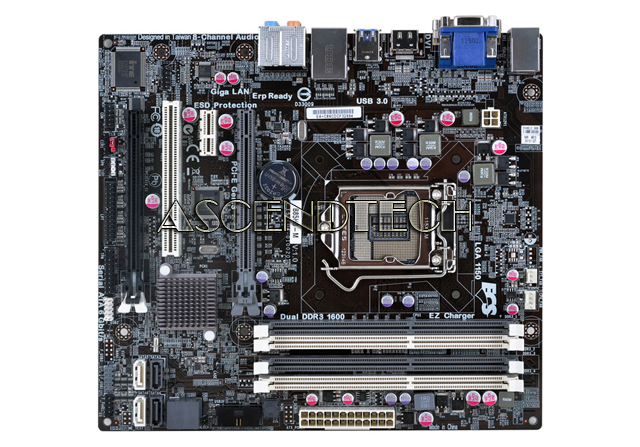

Ecs B85h3-M Lga1150 Ddr3 Motherboard
Ecs B85h3-M Lga1150 Ddr3 Motherboard
Ecs B85h3-M Lga1150 Ddr3 Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBECSB85H3MHDMI
BrandEcs - Elitegroup
ModelB85H3-M V1.0
CategoryIntel Lga1150 Motherboard
ConditionLike New Grade A

Description

ECS B85H3-M V1.0 Intel Chipset B85 Socket LGA1150 HDMI SATA 6GB/s USB 3.0 Micro ATX Motherboard. Improve your system’s functioning considerably using the ECS Motherboard. This MicroATX motherboard is a reliable platform for adding a number of devices to your PC. The LGA1150 interface goes well with 4th Generation Intel Core Family/Pentium/Celeron Processors. Coming with 1600 MHz DDR3 Memory, it assures a smooth functioning while the Gigabit LAN feature lets you go online in a jiffy. The SATA III (6Gb/s) headers and the USB 3.0 Ports expands your system’s capabilities. This Intel B85 motherboard comes with CrossFireX feature for playing complex games and 5.1-CH Audio for superior audio quality. Order the ECS Motherboard and obtain an efficient system.





Features:

• 2-Way multi-graphics solution
• Supports 3 independent displays
• Supports Intel K Series unlock CPU
• Applied 100% Solid capacitor design to maximize component reliability
• ECS Durathon Technology ensure the stability, reliability and performance of system.
• ESD Protection prevents computers from electrostatic discharge damage to enhance
• its durability and lifespan
• Supports Intel Small Business Advantage (SBA) technology
• Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi
• language environment
• ECS MIB III - A friendly interface for overclocking
• Microsoft Windows 8 Certified
• Intel 22nm 4th generation Multi-Core CPU support
• Intel VRD 12.5 Ready
• Supports DirectX 11.1 to enhance graphical performance
• Supports AMD CrossFire to expand your system's graphics capabilities.
• Supports Intel HD Graphics
• Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
• Supports Intel Rapid Start technology
• Supports Intel Smart Connect technology
• ECS Intelligent EZ Utility: eBLU, eDLU, eSF





Specifications:

CPU

º Supports New 4th & 4th gen Intel Core family, Pentium, Celeron series processors in LGA1150 socket
º DMI 5.0GT/s
º 3 Phase Thermal Design Power
º VRD 12.5
º 100% Solid capacitor design
º Supports Intel Turbo Boost 3.0 Technology
º Supports Intel Hyper-Threading Technology
º Intel K Series Unlock CPU Support
º Please refer to CPU support list for details

CHIPSET

º Intel B85 Express Chipset
º Supports Intel Small Business Advantage
º Supports Intel Rapid Start technology
º Supports Intel Smart Connect technology
º Supports Intel Identity Protection Technology

GRAPHICS

º Supports DirectX 11 .1
º Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
º Supports HDMI 1.4a & Premium Audio
º Supports Full HD 1080P Blu-ray / HD-DVD Playback

MEMORY

º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
º 4 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation
º Note: DDR3_1 with DDR3_3 are the same channel, DDR3_2 with DDR3_4 are the same channel by Intel® Specification

EXPANSION SLOT

º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X PCI Express X16 Gen 2.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0 slot(s)
º Supports AMD CrossFire Technology
º 1 X PCI slot(s)
º *The second PCIE X16 only support bandwidth X4

Storage

º Support by B85 Express Chipset
    â€¢ 4 X Serial ATAIII 6Gb/s
      Located in SATA1, SATA2, SATA3,SATA4 Port
    â€¢ 2 X Serial ATAII 3Gb/s
      Located in SATA5, SATA6 Port

Audio

º Realtek ALC892
‧Realtek ALC892 8-channel High Definition audio CODEC
‧Compatible with Direct Sound 3D, A3D, I3DL2
‧Smart multiple streaming operation
‧Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience
‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP
º BluRay DVD/HD DVD support

LAN

º Realtek 8111G Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by B85 Express Chipset
    â€¢ 4 X USB3.0 port(s) up to 5Gb/s
      Back Panel 2 port(s)
      Onboard 2 port(s)
    â€¢ 8 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 4 port(s)
º ECS EZ Charger (Gray USB header)

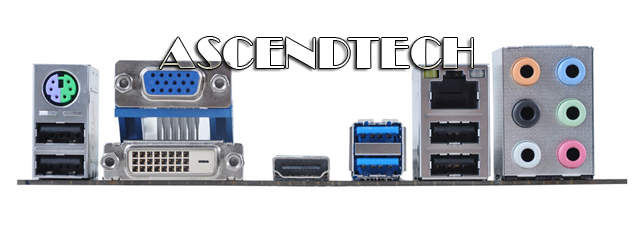

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line-in,4x Line-out, Mic in)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-I port(s)
º 1 X D-Sub (VGA) port(s)
º 2 X USB3.0 port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector with smart fan
º 1 X 3-pin SYS_FAN connector with smart fan
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X USB 3.0 header
    â€¢ Support additional 2 USB ports
º 2 X USB 2.0 header
    â€¢ Support additional 4 USB ports
º Support EZ charger (gray color)
º 4 X SATA III 6Gb/s connector(s)
º 2 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X CIR header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X TPM header
º 1 X Chassis intrusion header

SYSTEM BIOS

º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º Supports ACPI 5.0 & DMI
º F7 hot key for boot up devices option
º Triple Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Dual-Monitor function

FORM FACTOR

º mATX Form Factor
º 244mm(W) X 220 mm(H)

OS Support

º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHCK Certification





CPU Support List:

Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA1150

Intel Core i7

4765T

35W

2.00GHz

8MB

C0

08/23/2013

LGA1150

Intel Core i7

4770K

84W

3.50GHz

8MB

C0

07/16/2013

LGA1150

Intel Core i7

4770S

65W

3.10GHz

8MB

C0

07/16/2013

LGA1150

Intel Core i7

4771

84W

3.50GHz

8MB

C0

05/10/2013

LGA1150

Intel Core i7

4785T

35W

2.20GHz

8MB

C0

05/08/2014

LGA1150

Intel Core i7

4790

84W

3.60GHz

8MB

C0

05/08/2014

LGA1150

Intel Core i7

4790S

65W

3.20GHz

8MB

C0

05/08/2014

LGA1150

Intel Core i7

4790T

45W

2.70GHz

8MB

C0

05/08/2014

LGA1150

Intel Core i5

4430S

65W

2.70GHz

6MB

C0

07/16/2013

LGA1150

Intel Core i5

4440

84W

3.10GHz

6MB

C0

05/10/2013

LGA1150

Intel Core i5

4440S

65W

2.80GHz

6MB

C0

05/10/2013

LGA1150

Intel Core i5

4460

84W

3.20GHz

6MB

C0

05/08/2014

LGA1150

Intel Core i5

4460S

65W

2.90GHz

6MB

C0

05/08/2014

LGA1150

Intel Core i5

4460T

35W

1.90GHz

6MB

C0

05/08/2014

LGA1150

Intel Core i5

4570T

35W

2.90GHz

4MB

C0

08/23/2013

LGA1150

Intel Core i5

4590

84W

3.30GHz

6MB

C0

05/08/2014

LGA1150

Intel Core i5

4590S

65W

3.00GHz

6MB

C0

05/08/2014

LGA1150

Intel Core i5

4590T

35W

2.00GHz

6MB

C0

05/08/2014

LGA1150

Intel Core i5

4670T

45W

2.30GHz

6MB

C0

08/23/2013

LGA1150

Intel Core i5

4690

84W

3.50GHz

6MB

C0

05/08/2014

LGA1150

Intel Core i5

4690S

65W

3.20GHz

6MB

C0

05/08/2014

LGA1150

Intel Core i3

4130

54W

3.40GHz

3MB

C0

05/10/2013

LGA1150

Intel Core i3

4130T

35W

2.90GHz

3MB

C0

05/10/2013

LGA1150

Intel Core i3

4150

54W

3.50GHz

3MB

C0

05/08/2014

LGA1150

Intel Core i3

4150T

35W

3.00GHz

3MB

C0

05/08/2014

LGA1150

Intel Core i3

4160

54W

3.60GHz

3MB

C0

06/27/2014

LGA1150

Intel Core i3

4160T

35W

3.10GHz

3MB

C0

06/27/2014

LGA1150

Intel Core i3

4330

54W

3.50GHz

4MB

C0

05/10/2013

LGA1150

Intel Core i3

4330T

35W

3.00GHz

4MB

C0

05/10/2013

LGA1150

Intel Core i3

4340

54W

3.60GHz

4MB

C0

05/10/2013

LGA1150

Intel Core i3

4350

54W

3.60GHz

4MB

C0

05/08/2014

LGA1150

Intel Core i3

4350T

35W

3.10GHz

4MB

C0

05/08/2014

LGA1150

Intel Core i3

4360

54W

3.70GHz

4MB

C0

05/08/2014

LGA1150

Intel Core i3

4360T

35W

3.20GHz

4MB

C0

06/27/2014

LGA1150

Intel Core i3

4370

54W

3.80GHz

4MB

C0

06/27/2014

LGA1150

Intel Pentium

G3220

53W

3.00GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3220T

35W

2.60GHz

3MB

C0

05/10/2013

LGA1150

Intel Pentium

G3240

53W

3.10GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3240T

35W

2.70GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3250

53W

3.20GHz

3MB

C0

06/27/2014

LGA1150

Intel Pentium

G3250T

35W

2.80GHz

3MB

C0

06/27/2014

LGA1150

Intel Pentium

G3420

53W

3.20GHz

3MB

C0

05/10/2013

LGA1150

Intel Pentium

G3420T

35W

2.70GHz

3MB

C0

05/10/2013

LGA1150

Intel Pentium

G3430

53W

3.30GHz

3MB

C0

05/10/2013

LGA1150

Intel Pentium

G3440

53W

3.30GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3440T

35W

2.80GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3450

53W

3.40GHz

3MB

C0

05/08/2014

LGA1150

Intel Pentium

G3450T

35W

2.90GHz

3MB

C0

06/27/2014

LGA1150

Intel Pentium

G3460

53W

3.50GHz

3MB

C0

06/27/2014

LGA1150

Intel Celeron

G1820

65W

2.70GHz

2MB

C0

12/16/2013

LGA1150

Intel Celeron

G1820T

35W

2.40GHz

2MB

C0

12/16/2013

LGA1150

Intel Celeron

G1830

65W

2.80GHz

2MB

C0

12/16/2013

LGA1150

Intel Celeron

G1840

53W

2.80GHz

2MB

C0

05/08/2014

LGA1150

Intel Celeron

G1840T

35W

2.50GHz

2MB

C0

05/08/2014

LGA1150

Intel Celeron

G1850

53W

2.90GHz

2MB

C0

05/08/2014
