ECS B85H3-M3 LGA1150 Intel DDR3 No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

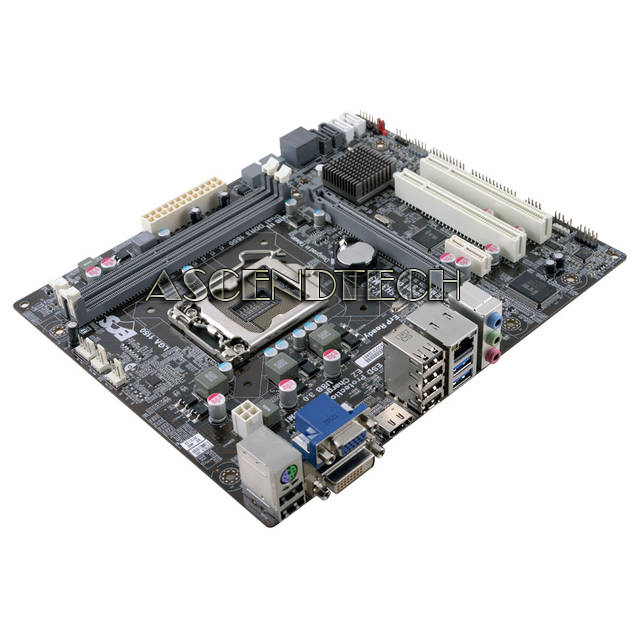

Ecs B85h3-M3 Lga1150 Intel Ddr3 No I/O. Model: Ecs B85h3-M3 V1.0
  Enlarge
Ecs B85h3-M3 Lga1150 Intel Ddr3 No I/O. Model: Ecs B85h3-M3 V1.0
Ecs B85h3-M3 Lga1150 Intel Ddr3 No I/O. Model: Ecs B85h3-M3 V1.0
Ecs B85h3-M3 Lga1150 Intel Ddr3 No I/O. Model: Ecs B85h3-M3 V1.0
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSB85H3M3V1N
Brand Ecs - Elitegroup
Model ECS B85H3-M3 V1.0
Category Intel Lga1150 Motherboard
Condition Like New Grade A
Condition Description Please Note, this motherboard does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.

Description

ECS B85H3-M3 V1.0 Intel Chipset B85 Socket LGA1150 DDR3 HDMI 4x SATA 6GB/s USB 3.0 Micro ATX Motherboard. The MicroATX Motherboard makes it possible to add the latest hard drive and other components to your system. With LGA1150 interface, this is compatible with 4th Generation Intel Core Family/Pentium/Celeron Processors. Accelerating the system’s performance with its DDR3 memory, the motherboard also features Gigabit LAN for downloading games and other applications. Also coming with SATA 6.0 Gb/s header and USB 3.0 ports, you can increase your storage capacity or add other USB devices.





Features:

  • Supports 3 independent displays
  • Supports Intel K Series unlock CPU
  • Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
  • ECS Durathon Technology ensure the stability, reliability and performance of system.
  • ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
  • Supports Intel Small Business Advantage (SBA) technology
  • Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
  • ECS MIB III - A friendly interface for overclocking
  • Microsoft Windows 8 Certified
  • Intel 22nm 4th generation Multi-Core CPU support
  • Intel VRD 12.5 Ready
  • Supports DirectX 11.1 to enhance graphical performance
  • Supports Intel HD Graphics
  • Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
  • Supports Intel Rapid Start technology
  • Supports Intel Smart Connect technology
  • ECS Intelligent EZ Utility: eBLU, eDLU, eSF





Specifications:

CPU

º Supports New 4th & 4th gen Intel Core family, Pentium, Celeron series processors in LGA1150 socket
º DMI 5.0GT/s
º 3 Phase Thermal Design Power
º VRD 12.5
º Solid Capacitor for CPU side
º Supports Intel Turbo Boost 2.0 Technology
º Supports Intel Hyper-Threading Technology
º Intel K Series Unlock CPU Support
º Please refer to CPU support list for details

CHIPSET

º Intel B85 Express Chipset
º Supports Intel Small Business Advantage

GRAPHICS

º Supports DirectX 11 .1
º Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology,
    Insider
º Supports HDMI 1.4a & Premium Audio
º Supports Full HD 1080P Blu-ray / HD-DVD Playback

MEMORY

º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 16 GB*
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 X PCI Express X16 Gen 3.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0 slot(s)
º 2 X PCI slot(s)

Storage

º Support by B85 Express Chipset
    • 4 X Serial ATA III 6Gb/s
    • 2 X Serial ATA II 3Gb/s

Audio

º 6-Channel HD audio CODEC
º Realtek ALC662 6-channel High Definition audio CODEC
º BluRay DVD/HD DVD support

LAN

º Realtek 8111G Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by B85 Express Chipset
    • 4 X USB3.0 port(s) up to 5Gb/s
      Back Panel 2 port(s)
      Onboard 2 port(s)
    • 8 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 6 port(s)
      Onboard 2 port(s)

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-D port(s)
º 1 X D-Sub (VGA) port(s)
º 2 X USB3.0 port(s)
º 6 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector with smart fan
º 1 X 3-pin SYS_FAN connector with smart fan
º 1 X 3-pin PWR_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Speaker header
º 1 X USB 3.0 header
    • Support additional 2 USB ports
º 1 X USB 2.0 header
    • Support additional 2 USB ports
º Support EZ charger (gray color)
º 1 X S/PDIF out header
º 4 X SATA III 6Gb/s connector(s)
º 2 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X CIR header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X TPM header
º 1 X Chassis intrusion header

SYSTEM BIOS

º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º Supports ACPI 5.0 & DMI
º F7 hot key for boot up devices option
º Triple Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Dual-Monitor function

FORM FACTOR

º mATX Form Factor
º 244mm(W) X 200 mm(H)

OS Support

º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHCK Certification





CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.


Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA1150

Intel Core i7

4765T

35W

2.00GHz

8MB

C0

07/25/2013

LGA1150

Intel Core i7

4770

84W

3.40GHz

8MB

C0

06/10/2013

LGA1150

Intel Core i7

4770K

84W

3.50GHz

8MB

C0

06/10/2013

LGA1150

Intel Core i7

4770S

65W

3.10GHz

8MB

C0

06/10/2013

LGA1150

Intel Core i7

4770T

45W

2.50GHz

8MB

C0

06/10/2013

LGA1150

Intel Core i7

4771

84W

3.50GHz

8MB

C0

06/10/2013

LGA1150

Intel Core i7

4785T

35W

2.20GHz

8MB

C0

03/24/2014

LGA1150

Intel Core i7

4790

84W

3.60GHz

8MB

C0

03/24/2014

LGA1150

Intel Core i7

4790S

65W

3.20GHz

8MB

C0

03/24/2014

LGA1150

Intel Core i7

4790T

45W

2.70GHz

8MB

C0

03/24/2014

LGA1150

Intel Core i5

4430

84W

3.00GHz

6MB

C0

06/10/2013

LGA1150

Intel Core i5

4430S

65W

2.70GHz

6MB

C0

06/10/2013

LGA1150

Intel Core i5

4440

84W

3.10GHz

6MB

C0

06/10/2013

LGA1150

Intel Core i5

4440S

65W

2.80GHz

6MB

C0

06/10/2013

LGA1150

Intel Core i5

4460

84W

3.20GHz

6MB

C0

03/24/2014

LGA1150

Intel Core i5

4460S

65W

2.90GHz

6MB

C0

03/24/2014

LGA1150

Intel Core i5

4460T

35W

1.90GHz

6MB

C0

03/24/2014

LGA1150

Intel Core i5

4570

84W

3.20GHz

6MB

C0

06/10/2013

LGA1150

Intel Core i5

4570S

65W

2.90GHz

6MB

C0

06/10/2013

LGA1150

Intel Core i5

4570T

35W

2.90GHz

4MB

C0

07/25/2013

LGA1150

Intel Core i5

4590

84W

3.30GHz

6MB

C0

03/24/2014

LGA1150

Intel Core i5

4590S

65W

3.00GHz

6MB

C0

03/24/2014

LGA1150

Intel Core i5

4590T

35W

2.00GHz

6MB

C0

03/24/2014

LGA1150

Intel Core i5

4670

84W

3.40GHz

6MB

C0

06/10/2013

LGA1150

Intel Core i5

4670K

84W

3.40GHz

6MB

C0

06/10/2013

LGA1150

Intel Core i5

4670S

65W

3.10GHz

6MB

C0

06/10/2013

LGA1150

Intel Core i5

4670T

45W

2.30GHz

6MB

C0

07/25/2013

LGA1150

Intel Core i5

4690

84W

3.50GHz

6MB

C0

03/24/2014

LGA1150

Intel Core i5

4690S

65W

3.20GHz

6MB

C0

03/24/2014

LGA1150

Intel Core i3

4130

54W

3.40GHz

3MB

C0

06/10/2013

LGA1150

Intel Core i3

4130T

35W

2.90GHz

3MB

C0

06/10/2013

LGA1150

Intel Core i3

4150

54W

3.50GHz

3MB

C0

03/24/2014

LGA1150

Intel Core i3

4150T

35W

3.00GHz

3MB

C0

03/24/2014

LGA1150

Intel Core i3

4160

54W

3.60GHz

3MB

C0

07/02/2014

LGA1150

Intel Core i3

4160T

35W

3.10GHz

3MB

C0

07/02/2014

LGA1150

Intel Core i3

4330

54W

3.50GHz

4MB

C0

06/10/2013

LGA1150

Intel Core i3

4330T

35W

3.00GHz

4MB

C0

06/10/2013

LGA1150

Intel Core i3

4340

54W

3.60GHz

4MB

C0

06/10/2013

LGA1150

Intel Core i3

4350

54W

3.60GHz

4MB

C0

03/24/2014

LGA1150

Intel Core i3

4350T

35W

3.10GHz

4MB

C0

03/24/2014

LGA1150

Intel Core i3

4360

54W

3.70GHz

4MB

C0

03/24/2014

LGA1150

Intel Core i3

4360T

35W

3.20GHz

4MB

C0

07/02/2014

LGA1150

Intel Pentium

G3220

53W

3.00GHz

3MB

C0

03/24/2014

LGA1150

Intel Pentium

G3220T

35W

2.60GHz

3MB

C0

06/10/2013

LGA1150

Intel Pentium

G3240

53W

3.10GHz

3MB

C0

03/24/2014

LGA1150

Intel Pentium

G3240T

35W

2.70GHz

3MB

C0

03/24/2014

LGA1150

Intel Pentium

G3250

53W

3.20GHz

3MB

C0

07/02/2014

LGA1150

Intel Pentium

G3250T

35W

2.80GHz

3MB

C0

07/02/2014

LGA1150

Intel Pentium

G3420

53W

3.20GHz

3MB

C0

06/10/2013

LGA1150

Intel Pentium

G3420T

35W

2.70GHz

3MB

C0

06/10/2013

LGA1150

Intel Pentium

G3430

53W

3.30GHz

3MB

C0

06/10/2013

LGA1150

Intel Pentium

G3440

53W

3.30GHz

3MB

C0

03/24/2014

LGA1150

Intel Pentium

G3440T

35W

2.80GHz

3MB

C0

03/24/2014

LGA1150

Intel Pentium

G3450

53W

3.40GHz

3MB

C0

03/24/2014

LGA1150

Intel Pentium

G3450T

35W

2.90GHz

3MB

C0

07/02/2014

LGA1150

Intel Pentium

G3460

53W

3.50GHz

3MB

C0

07/02/2014

LGA1150

Intel Celeron

G1820

65W

2.70GHz

2MB

C0

12/16/2013

LGA1150

Intel Celeron

G1820T

35W

2.40GHz

2MB

C0

12/16/2013

LGA1150

Intel Celeron

G1830

65W

2.80GHz

2MB

C0

12/16/2013

LGA1150

Intel Celeron

G1840

53W

2.80GHz

2MB

C0

03/24/2014

LGA1150

Intel Celeron

G1840T

35W

2.50GHz

2MB

C0

03/24/2014

LGA1150

Intel Celeron

G1850

53W

2.90GHz

2MB

C0

03/24/2014
