BAT-I/J1800 V1.2 | Ecs Bat-I/J1800 Ddr3 Sata Ii Motherboard

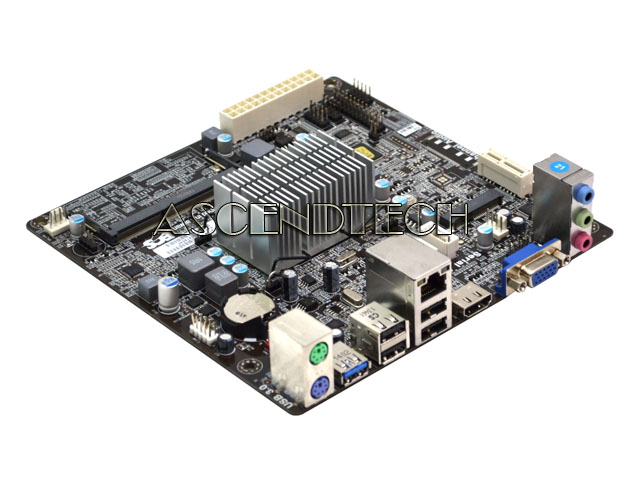

ECS BAT-I/J1800 V1.2 Intel Celeron (Bay Trail-D) J1800 2.41GHz Processor DDR3 SO-DIMM Serial ATA II 3Gb/s Mini ITX Motherboard.

ECS Model Number: BAT-I/J1800 V1.2

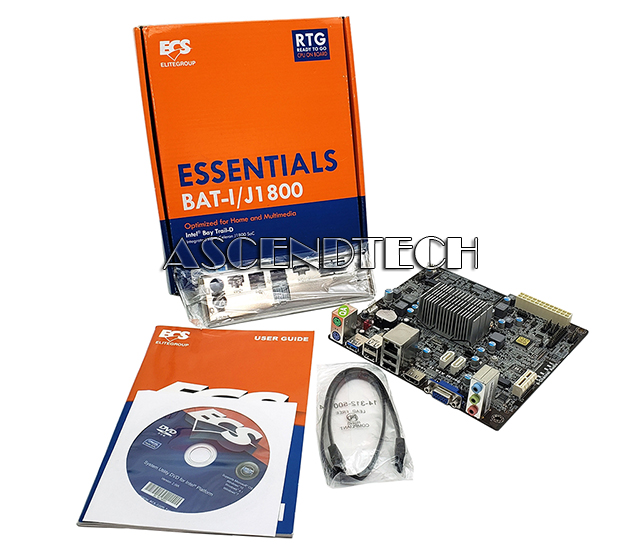

Includes: I/O Panel, and SATA Cable, Manual, and System Utility DVD

Features:

- Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
- ECS Durathon Technology ensure the stability, reliability and performance of system.
- Dual Display design for multiple output support
- Integrated Printer (LPT) port / header to expand functionality
- Microsoft Windows 8 Certified
- Intel VRD 12 Ready
- Supports DirectX 11 to enhance graphical performance
- Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
- Free Bundle: CyberLink Media Suite

Specifications:

CPU	º Intel Bay Trail J1800 processor.
GRAPHICS	º Supports DirectX 11 º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY	º Single-channel DDR3 Memory architecture º 1 X DDR3 SO-DIMM socket º Support up to 8 GB*
EXPANSION SLOT	º 1 X PCI Express X 1 Gen 2.0slot(s) º 1 X Mini PCI Express X1 slot(s) for Wi-Fi /Bluetooth modules
Storage	º 2 X Serial ATA II 3Gb/s
Audio	º 6-Channel HD audio CODEC º VIA VT1705 6-channel High Definition audio CODEC º BluRay DVD/HD DVD support
LAN	º Realtek RTL8111G Gigabit Fast Ethernet Controller º (Realtek RTL8106E 10/100Mbps Fast Ethernet Controller optional)
USB	º 1 X USB3.0 port(s) up to 5Gb/s • 6 X USB2.0 port(s) Up to 480 Mb/s • Back Panel 4 port(s) • Onboard 2 port(s)

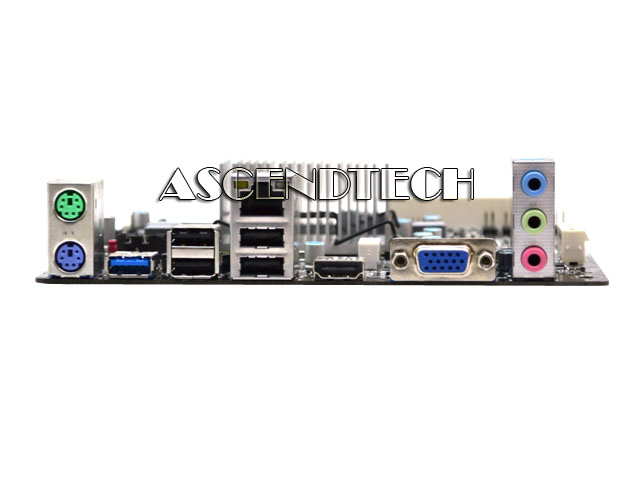

REAR PANEL I/O	º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 port º 1 X HDMI port(s) º 1 X D-Sub (VGA) port(s) º 1 X USB3.0 port(s) º 4 X USB2.0 port(s)
CONNECTORS & HEADERS	º 1 X 4-pin CPU_FAN connector with smart fan º 1 X 4-pin SYS_FAN connector with smart fan º 1 X Front Panel MIC/Speaker out header º 1 X Front Panel switch/LED header º 1 X USB 2.0 header • Support additional 2 USB ports º 2 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 2 X Serial port header (COM) º 1 X Parallel port header (LPT) º 1 X LVDS connector (optional)
SYSTEM BIOS	º AMI BIOS with 8 MB SPI Flash ROM º Supports ACPI 5.0 & DMI º Dual Display º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Dual-Monitor function
FORM FACTOR	º Mini ITX Form Factor º 170 mm x 170 mm

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket	Family	Processor	Wattage	Frequency	Cache	Stepping	Since BIOS
FCBGA1170	Intel Pentium	J2850	10W	2.41GHz	2MB	B2	04/22/2014
FCBGA1170	Intel Pentium	J2900	10W	2.41GHz	2MB	B3	04/22/2014
FCBGA1170	Intel Celeron	J1750	10W	2.41GHz	1MB	B2	04/22/2014
FCBGA1170	Intel Celeron	J1800	10W	2.41GHz	1MB	B3	04/22/2014
FCBGA1170	Intel Celeron	J1850	10W	2.00GHz	2MB	B2	04/22/2014
FCBGA1170	Intel Celeron	J1900	10W	2.00GHz	2MB	B3	04/22/2014
