ECS BAT-I/J1900 J1900 CPU Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MTHBRDBATIJ1900
Brand Ecs - Elitegroup
Model BAT-I/J1900
Condition Like New Grade A

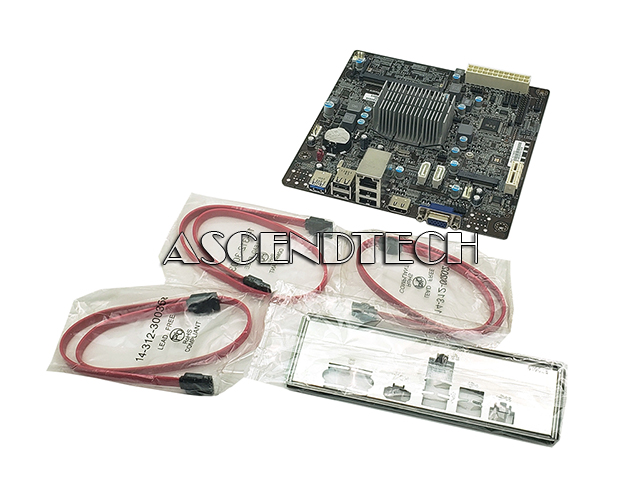

Condition Description Please Note Motherboard comes with I/O Shield, 3 SATA Cable
Description

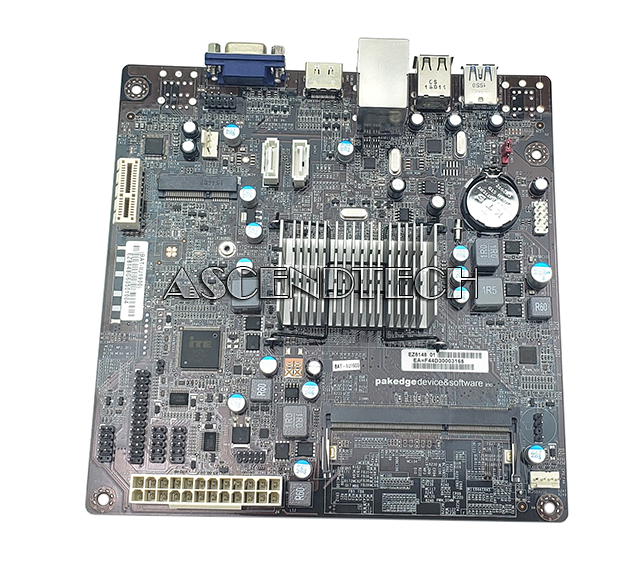

ECS BAT-I/J1900 Intel Bay Trail J1900 DDR3 SATA2 3GB/S Mini ITX Motherboard.
ECS Model Number: BAT-I/J1900
Includes: I/O Shield, 3 SATA Cable.
Features:
Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
Dual Display design for multiple output support
Integrated Printer (LPT) port / header to expand functionality
Microsoft Windows 8 Certified
Intel VRD 12 Ready
Supports DirectX 11 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
ECS Model Number: BAT-I/J1900
Includes: I/O Shield, 3 SATA Cable.
Features:
Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
Dual Display design for multiple output support
Integrated Printer (LPT) port / header to expand functionality
Microsoft Windows 8 Certified
Intel VRD 12 Ready
Supports DirectX 11 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
| CPU | Onboard Intel Bay Trail processors |
| On-Board CPU Selections | |
| Intel Bay Trail J1900 processor. | |
| VRD 12.0 | |
| Solid Capacitor for CPU side | |
| Supports Intel Hyper-Threading Technology | |
| GRAPHICS | Supports DirectX 11 |
| Supports Full HD 1080P Blu-ray / HD-DVD Playback | |
| MEMORY | Single-channel DDR3 Memory architecture |
| 1 X DDR3 SO-DIMM socket | |
| Support up to 8 GB* | |
| EXPANSION SLOT | 1 X PCI Express X 1 Gen 2.0slot(s) |
| 1 X Mini PCI Express X1 slot(s) for Wi-Fi /Blutooth modules | |
| STORAGE | 2 X Serial ATAII 3Gb/s |
| Audio | 6-Channel HD audio CODEC |
| VIA VT1705 6-channel High Definition audio CODEC | |
| BluRay DVD/HD DVD support | |
| LAN | Realtek RTL8111G Gigabit Fast Ethernet Controller |
| (Realtek RTL8106E 10/100Mbps Fast Ethernet Controller optional) | |
| USB | 1 X USB3.0 port(s) up to 5Gb/s |
| Back Panel 1 port(s) | |
| 6 X USB2.0 port(s) Up to 480 Mb/s | |
| Back Panel 4 port(s) | |
| Onboard 2 port(s) | |
| REAR PANEL I/O | 1 X PS/2 Keyboard & PS/2 mouse connectors |
| 1 X Audio port (Line Out/Line In/Mic In) | |
| 1 X RJ-45 port | |
| 1 X HDMI port(s) | |
| 1 X D-Sub (VGA) port(s) | |
| 1 X USB3.0 port(s) | |
| 4 X USB2.0 port(s) | |
| CONNECTORS & HEADERS | 1 X 4-pin CPU_FAN connector with smart fan |
| 1 X 4-pin SYS_FAN connector with smart fan | |
| 1 X Front Panel MIC/Speaker out header | |
| 1 X Front Panel switch/LED header | |
| 1 X USB 2.0 header | |
| Support additional 2 USB ports | |
| 2 X SATA II 3Gb/s connector(s) | |
| 1 X CLR_CMOS header | |
| 2 X Serial port header (COM) | |
| 1 X Parallel port header (LPT) | |
| 1 X LVDS connector (optional) | |
| SYSTEM BIOS | AMI BIOS with 8 MB SPI Flash ROM |
| Supports ACPI 5.0 & DMI | |
| Dual Display | |
| Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot | |
| Multi-Language BIOS | |
| Audio, LAN, can be disabled in BIOS | |
| Dual-Monitor function | |
| FORM FACTOR | Mini ITX Form Factor |
| 170 mm x 170 mm |
