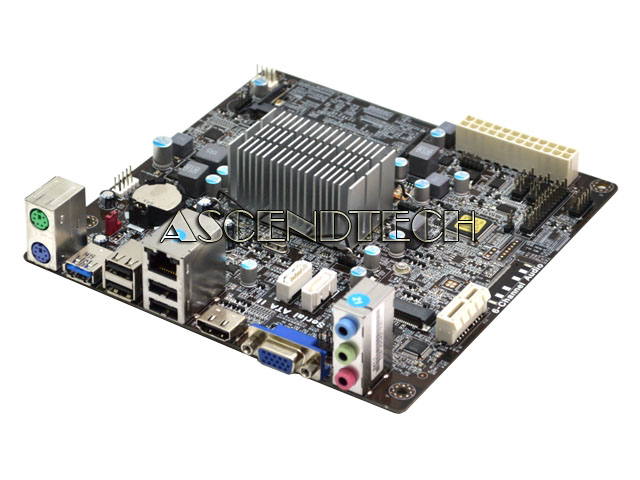

ECS BAT-I/J1900 V1.2 | Ecs Bat-I/J1900 V1.2 Itx Motherboard

ECS BAT-I/J1900 V1.2 Intel Bay Trail J1900 DDR3 SO-DIMM Socket Serial ATAII 3Gb/s Mini ITX Motherboard.

ECS Model Number: BAT-I/J1900 V1.2

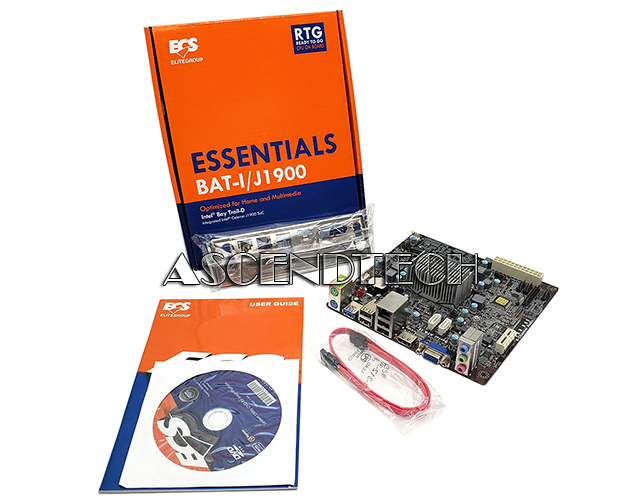

Includes: I/O Shield, Manual, SATA Cable, and System Utility DVD

Features:

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
Dual Display design for multiple output support
Integrated Printer (LPT) port / header to expand functionality
Microsoft Windows 8 Certified
Intel VRD 12 Ready
Supports DirectX 11 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function

CPU	º Intel Bay Trail J1900 processor.
GRAPHICS	º Supports DirectX 11 º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY	º Single-channel DDR3 Memory architecture º 1 X DDR3 SO-DIMM socket º Support up to 8 GB*
EXPANSION SLOT	º 1 X PCI Express X 1 Gen 2.0slot(s) º 1 X Mini PCI Express X1 slot(s) for Wi-Fi /Blutooth modules
Storage	º 2 X Serial ATAII 3Gb/s
Audio	º 6-Channel HD audio CODEC º VIA VT1705 6-channel High Definition audio CODEC º BluRay DVD/HD DVD support
LAN	º Realtek RTL8111G Gigabit Fast Ethernet Controller º (Realtek RTL8106E 10/100Mbps Fast Ethernet Controller optional)
USB	º 1 X USB3.0 port(s) up to 5Gb/s Back Panel 1 port(s) • 6 X USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 2 port(s)

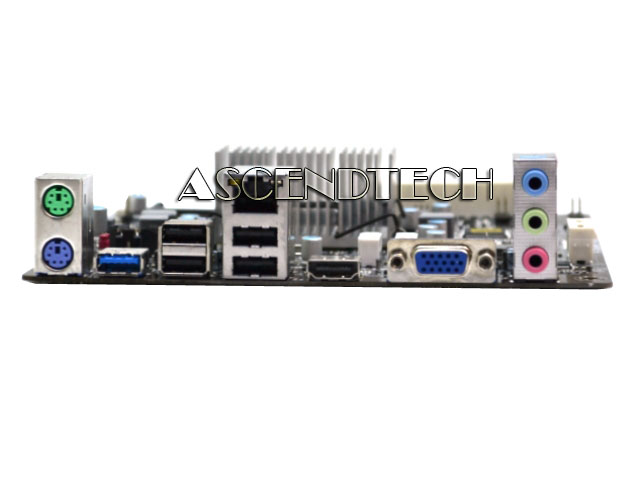

REAR PANEL I/O	º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 port º 1 X HDMI port(s) º 1 X D-Sub (VGA) port(s) º 1 X USB3.0 port(s) º 4 X USB2.0 port(s)
CONNECTORS & HEADERS	º 1 X 4-pin CPU_FAN connector with smart fan º 1 X 4-pin SYS_FAN connector with smart fan º 1 X Front Panel MIC/Speaker out header º 1 X Front Panel switch/LED header º 1 X USB 2.0 header • Support additional 2 USB ports º 2 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 2 X Serial port header (COM) º 1 X Parallel port header (LPT) º 1 X LVDS connector (optional)
SYSTEM BIOS	º AMI BIOS with 8 MB SPI Flash ROM º Supports ACPI 5.0 & DMI º Dual Display º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Dual-Monitor function
FORM FACTOR	º Mini ITX Form Factor º 170 mm x 170 mm

Socket	Family	Processor	Wattage	Frequency	Cache	Stepping	Since BIOS
FCBGA1170	Intel Pentium	J2850	10W	2.41GHz	2MB	B2	04/22/2014
FCBGA1170	Intel Pentium	J2900	10W	2.41GHz	2MB	B3	04/22/2014
FCBGA1170	Intel Celeron	J1750	10W	2.41GHz	1MB	B2	04/22/2014
FCBGA1170	Intel Celeron	J1800	10W	2.41GHz	1MB	B3	04/22/2014
FCBGA1170	Intel Celeron	J1850	10W	2.00GHz	2MB	B2	04/22/2014
FCBGA1170	Intel Celeron	J1900	10W	2.00GHz	2MB	B3	04/22/2014
