ECS BAT-I V1.2 Celeron J1800 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs Bat-I V1.2 Celeron J1800 Motherboard
  Enlarge
Ecs Bat-I V1.2 Celeron J1800 Motherboard
Ecs Bat-I V1.2 Celeron J1800 Motherboard
Ecs Bat-I V1.2 Celeron J1800 Motherboard
Ecs Bat-I V1.2 Celeron J1800 Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKBATIJ1800N
Brand Ecs - Elitegroup
Model BAT-I V1.2
Compatible Part Numbers BAT-I/J1800 V1.2 15-EZ8-011201 EZ8163
Category All-In-One Desktop Motherboards
Condition Brand New FS

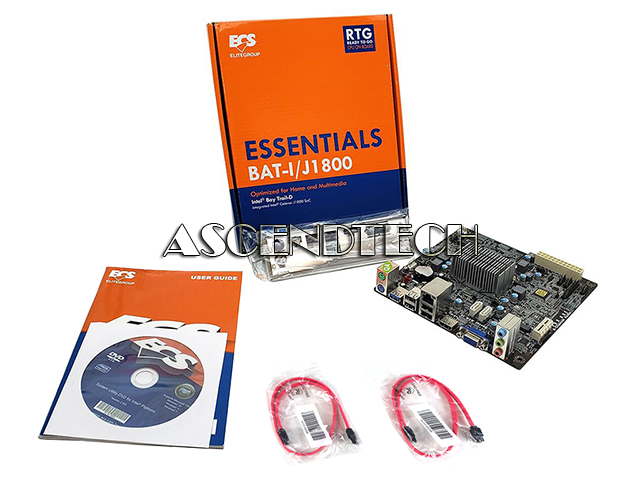

Condition Description Please note, this item comes with I/O Shield Backplate, 2x SATA Cables, System Utility DVD, and User Guide.

Description

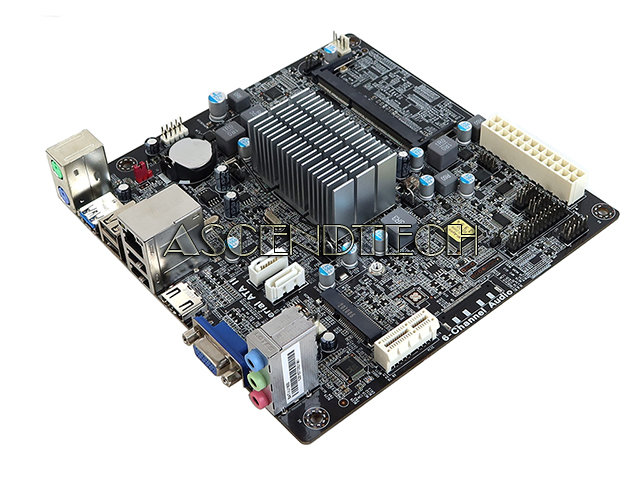

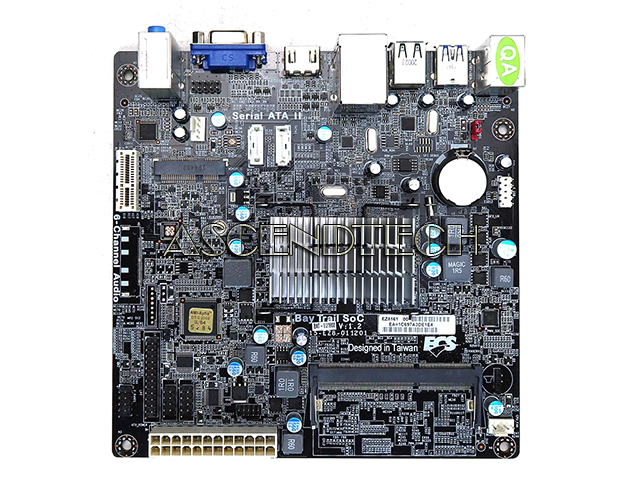

ECS Elitegroup BAT-I V1.2 Intel Celeron Bay Trail J1800 2.41GHz Processor DDR3L SO-DIMM D-Sub HDMI USB SATA 3Gb/s Mini ITX Desktop Motherboard.

Processor/CPU: Intel Celeron Bay Trail J1800
Processor/CPU Speed: 2.41GHz (2.58GHz Max Turbo)
Number of Cores: 2
L2/L3 Cache: 1MB
Max Supported Memory: 8GB
Number of Memory Slots: 1
Memory Type: DDR3L SDRAM
Storage Interface: 2x SATA II 3Gb/s
Network/Communications: Realtek RTL8111G
Audio: 6-Channel HD audio
Connectors: 1x 4-pin CPU FAN connector with smart fan; 1x 4-pin SYS FAN connector with smart fan; 1x Front Panel MIC/Speaker out header; 1x Front Panel switch/LED header; 1x USB 2.0 header (Support additional 2 USB ports); 1x CLR CMOS header; 2x Serial port header (COM); 1x Parallel port header (LPT);

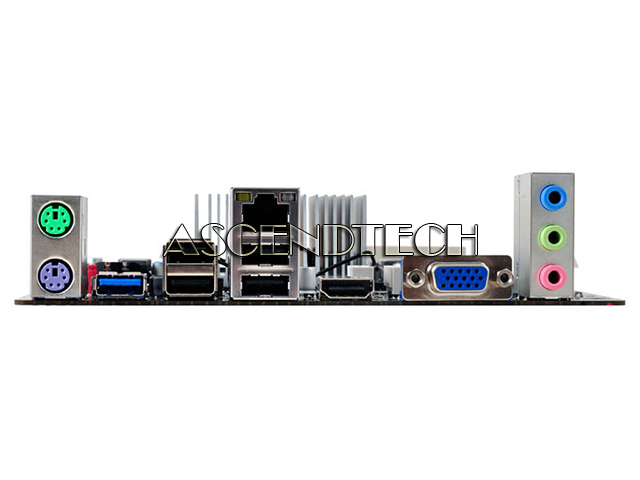

Input/Output Ports: 1x PS/2 Keyboard Connector; 1x PS/2 Mouse Connector; 3x Audio (Line Out, Line In, Mic In); 1x RJ-45 LAN; 1x HDMI; 1x D-Sub (VGA); 1x USB 3.2 Gen 1x1; 4x USB 2.0
Expansion Slots: 1x PCI Express X1 Gen 2.0
Width: 170 mm
Length: 170 mm
Form Factor: Mini ITX
Type: Desktop Motherboard
Supported Operating System: Windows 7 64-bit, Windows 8.1, Windows 10

Additional Specifications:

System Bios:

-AMI BIOS with 8 MB SPI Flash ROM
-Supports ACPI 5.0 & DMI
-Dual Display
-Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
-Multi-Language BIOS
-Audio, LAN, can be disabled in BIOS
-Dual-Monitor function

Certifications:

-CE/FCC Certification
-ErP/EuP Certification
-WHQL Certification
-WHCK Certification

Additional Features:

-Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
-ECS Durathon Technology ensure the stability, reliability and performance of system.
-Dual Display design for multiple output support
-Integrated Printer (LPT) port / header to expand functionality
-Intel VRD 12 Ready
-Supports DirectX 11 to enhance graphical performance
-Supports HDMI 1.4a Technology (resolution up to 1920X1200) and HDCP function
