BAT-I2/J1800 V2.0 | Ecs Bat-I2/J1800 V2 Mini Itx Motherboad

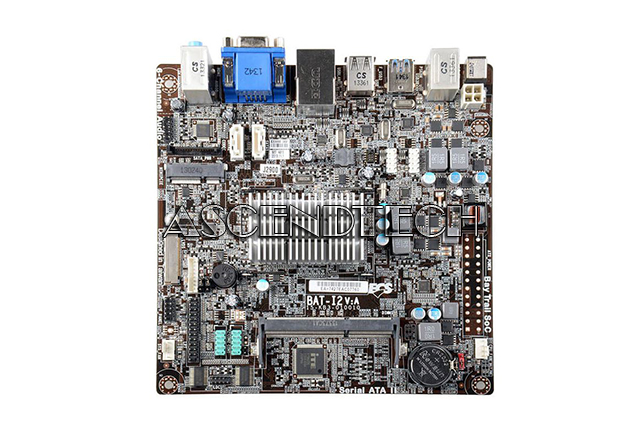

ECS BAT-I2/J1800 V2.0 Intel Bay Trail-D Intel Celeron J1800 DDR3 SATA2 3GB/s USB 3.0 Mini-ITX Motherboard.

ECS Model Number: BAT-I2/J1800 V2.0

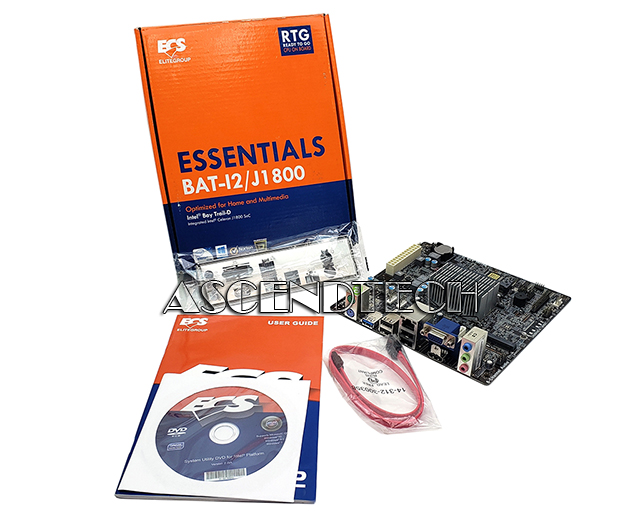

Includes: I/O Shield, SATA Cables, and Manuals

Features:

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
Dual Display design for multiple output support
Integrated Printer (LPT) port / header to expand functionality
Microsoft Windows 8 Certified
Intel VRD 12 Ready
Supports DirectX 11 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
Free Bundle: CyberLink Media Suite

Specifications:

CPU	Intel Bay Trail J1800 processor.
GRAPHICS	Supports DirectX 11 Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY	Single-channel DDR3 Memory architecture 1 X DDR3 SO-DIMM socket Support up to 8 GB*
EXPANSION SLOT	1 X Mini PCI Express X1 slot(s) for Wi-Fi /Blutooth modules
Storage	2 X Serial ATA II 3Gb/s
Audio	6-Channel HD audio CODEC ( Colay VIA VT1705 or Realtek ALC662 6-Channel HD audio) BluRay DVD/HD DVD support
LAN	Realtek RTL8111G Gigabit Fast Ethernet Controller (Realtek RTL8106E 10/100Mbps Fast Ethernet Controller optional)
USB	1 X USB3.1 Gen1 port(s) up to 5Gb/s 8 X USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 4 port(s)

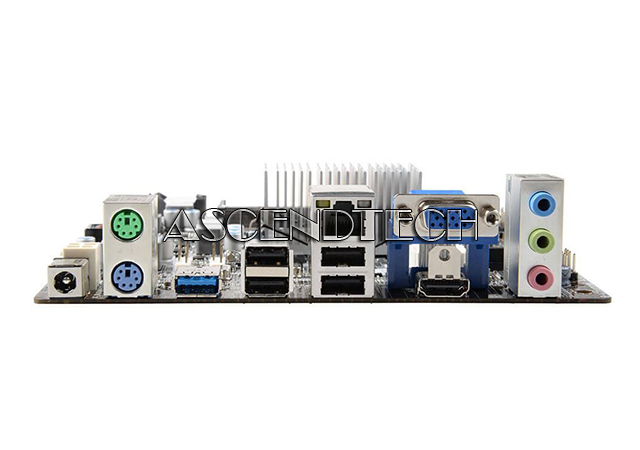

REAR PANEL I/O	1 X PS/2 Keyboard & PS/2 mouse connectors 1 X Audio port (Line Out/Line In/Mic In) 1 X RJ-45 port 1 X HDMI port(s) 1 X D-Sub (VGA) port(s) 1 X USB3.1 Gen1 port(s) 4 X USB2.0 port(s) 1 X DC-in Connetor
CONNECTORS & HEADERS	1 X 4-pin CPU_FAN connector with smart fan 1 X 4-pin SYS_FAN connector with smart fan 1 X Front Panel MIC/Speaker out header 1 X Front Panel switch/LED header 2 X USB 2.0 header Support additional 4 USB ports 2 X SATA II 3Gb/s connector(s) 1 X CLR_CMOS header 2 X Serial port header (COM) 1 X Parallel port header (LPT) 1 X LVDS connector (optional)
SYSTEM BIOS	AMI BIOS with 8 MB SPI Flash ROM Supports ACPI 5.0 & DMI Dual Display Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot Multi-Language BIOS Audio, LAN, can be disabled in BIOS Dual-Monitor function
FORM FACTOR	Mini ITX Form Factor 170 mm x 170 mm

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket	Family	Processor	Wattage	Frequency	Cache	Stepping	Since BIOS
FCBGA1170	Intel Pentium	J2900	10W	2.41GHz	2MB	B3	2015/12/16
FCBGA1170	Intel Celeron	J1750	10W	2.41GHz	1MB	B2	2015/12/16
FCBGA1170	Intel Celeron	J1850	10W	2.00GHz	2MB	B2	2015/12/16
