ECS BAT-I2/J1900 V1.0 Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

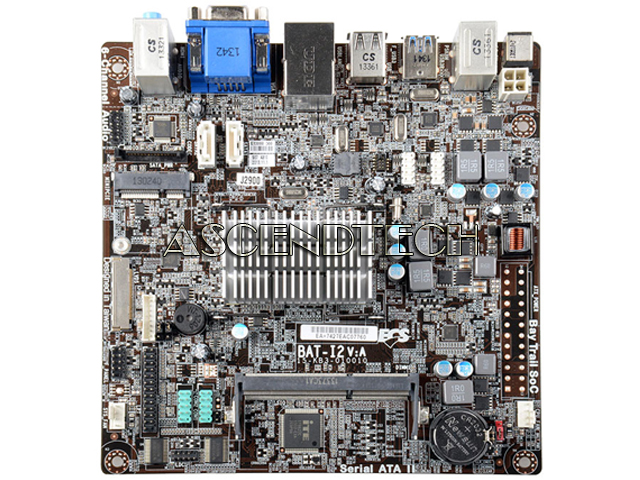

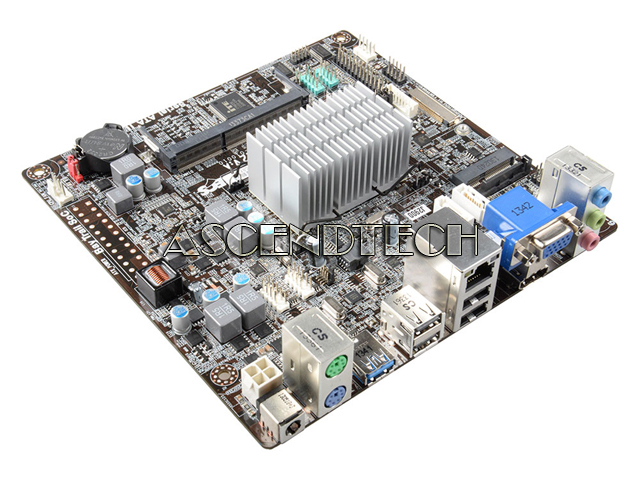

Ecs Bat-I2/J1900 V1.0 Motherboard No I/O

*Note this image is for descriptional purposes.
Actual product may vary.

Item CodeMBBATI2J1900V1N

BrandEcs - Elitegroup

ModelBAT-I2/J1900 V1.0 No I/O

CategoryMotherboard & Cpu - Ready To Go Combos

Description

ECS BAT-I2/J1900 V1.0 Intel Celeron Processor J1900 Onboard Intel Bay Trail Mini ITX Motherboard/CPU Combo. ECS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.

Features:

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
Dual Display design for multiple output support
Integrated Printer (LPT) port / header to expand functionality
Microsoft Windows 8 Certified
Intel ® VRD 12 Ready
Supports DirectX® 11 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function

Specifications:

CPU	º Onboard Intel^® Bay Trail processors º On-Board CPU Selections Intel ^® Bay Trail J1900 processor. º VRD 12.0 º Solid Capacitor for CPU side º Supports Intel^® Hyper-Threading Technology
GRAPHICS	º Supports DirectX^® 11 º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY	º Single-channel DDR3 Memory architecture º 1 X DDR3 SO-DIMM socket º Support up to 8 GB*
EXPANSION SLOT	º 1 X Mini PCI Express X1 slot(s) for Wi-Fi /Blutooth modules
Storage	º 2 X Serial ATAII 3Gb/s
Audio	º 6-Channel HD audio CODEC º VIA VT1705 6-channel High Definition audio CODEC º BluRay DVD/HD DVD support
LAN	º Realtek RTL8111G Gigabit Fast Ethernet Controller º (Realtek RTL8106E 10/100Mbps Fast Ethernet Controller optional)
USB	º 1 X USB3.0 port(s) up to 5Gb/s Back Panel 1 port(s) • 8 X USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 4 port(s)

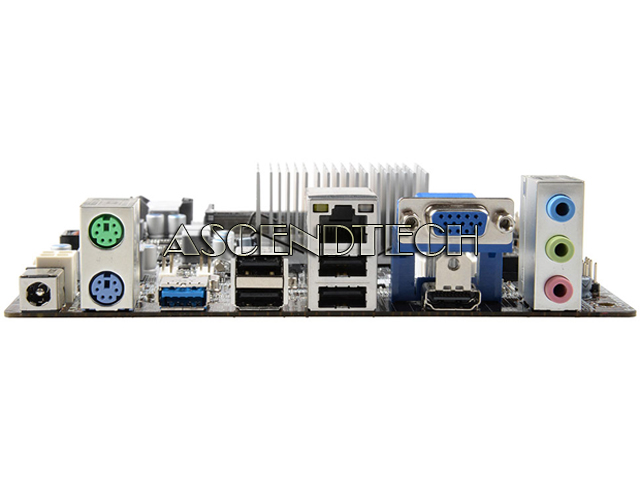

REAR PANEL I/O	º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 port º 1 X HDMI port(s) º 1 X D-Sub (VGA) port(s) º 1 X USB3.0 port(s) º 4 X USB2.0 port(s) º 1 X DC-in Connetor
CONNECTORS & HEADERS	º 1 X 4-pin CPU_FAN connector with smart fan º 1 X 4-pin SYS_FAN connector with smart fan º 1 X Front Panel MIC/Speaker out header º 1 X Front Panel switch/LED header º 2 X USB 2.0 header • Support additional 4 USB ports º 2 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 2 X Serial port header (COM) º 1 X Parallel port header (LPT) º 1 X LVDS connector (optional)
SYSTEM BIOS	º AMI BIOS with 8 MB SPI Flash ROM º Supports ACPI 5.0 & DMI º Dual Display º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Dual-Monitor function
FORM FACTOR	º Mini ITX Form Factor º 170 mm x 170 mm
OS Support	º Windows 7 64-bit º Windows 8 64-bit º Windows 8.1 64-bit
Certifications	º CE/FCC Certification º ErP/EuP Certification º WHQL Certification º WHCK Certification
