X79R-AX V1.0 | Ecs Black X79r-Ax Ddr3 Motherboard

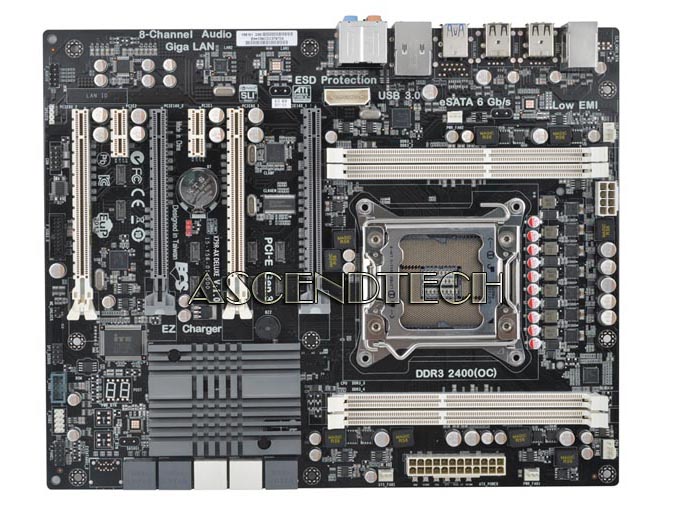

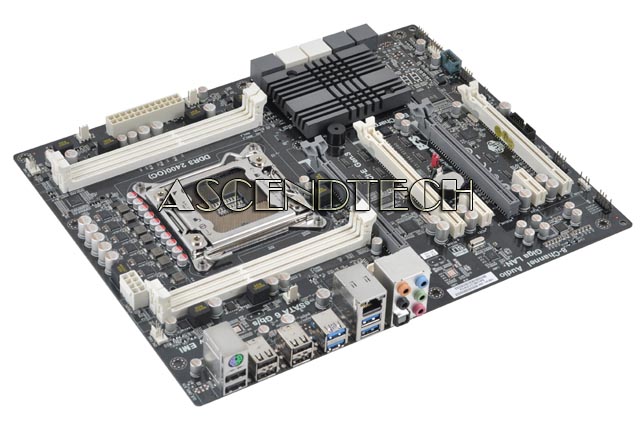

The X79R-AX is the ECS latest Black Series Extreme product, which fully supports the Socket 2011 Intel® Core i7 desktop processors to deliver amazing overclocking capabilities. X79R-AX is designed with the Intel X79 chip by supporting Quad channel DDR3 memory module, and able to OC from DDR3-1600 to 2500(OC) via ECS M.I.B.X to gain great performance. For better gaming performance, X79R-AX supports 4-Way Graphic Cards in CrossFireX or SLI that operates in PCIe x16 Gen.3 bandwidth. Moreover, X79R-AX features fully SATA 6Gb/s as internal interface and additional 2 eSATA 6Gb/s storage device. ECS X79R-AX is the first model in the world to show PCH temperature making a much more convenient environment for user. X79R-AX is the best choice for your computing experience.

Features:

M.I.B. III
M.I.B. III brings the same convenience interface of overclocking as M.I.B. II, it also comes with advance range of frequency tuning for system performance and superior gaming capability.

Solid Capacitor
Solid capacitors lifespan is 6 times more than electrolytic capacitors at 65◦C temperature and it offers a stability and durable system.

eOC - Easy Over Clock Utility
Easy Over Clock Utility is a easy and simply overclocking tools that provides user-friendly windows operation interface for novices and overclockers, with clicking on your mouse only you can get much higher performance of CPU quickly. It is available for download and updated online to get the latest version. Combine with ECS MIB technology to challenge undiscovered extreme overclocking than ever before.

Dual Channel DDR3 1333 1866(OC)
Over clocking memory to achieve 1866MHz instead of origin memory speed for doubling the bandwidth of your system memory up to 29.8 GB/s.

PCI EXPRESS 2.0
The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future.

SATA 3.0Gb/s
Doubles the transfer speed of SATA, running at speed up to 3.0Gb/s, and fully compatible with the soon-to-be-released SATA HDD, CD-ROM and other cutting-edge devices with NCQ function support.

6 Channel High Definition Audio Integrated
6-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.

DVI Output
A video interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors. DVI transmits a digital signal from a digital location in the graphics card to a digital location on the display screen. So you get the full clarity and stability of liquid crystal technology — with sharp, clear pixels.

Support Windows® 8 OS
Workable for the next version of Microsoft Windows - Windows 8 which is the first edition of Windows to support for both x86 PCs and ARM tablets.

Specifications:

CPU	º Supports LGA 2011 socket for Intel^® Core™i7 processors º DMI 5.0GT/s º VRD 12.0 º 100% Solid capacitor design º Supports Intel^® Turbo Boost 2.0 Technology º Supports Intel^® Hyper-Threading Technology º Intel^® K Series Unlock CPU Support º Please refer to CPU support list for details
CHIPSET	º Intel^® X79 Express Chipset
GRAPHICS	º Supports NVIDIA^® 4-Way SLI º Supports ATI^® 4-Way CrossFireX™
MEMORY	º Quad-channel DDR3 Memory architecture º Supports 1800/1600/1333 non-ECC, Un-buffered SDRAM Memory º Supports up to 2500(OC) º 4 X 240-pin DDR3 DIMM socket º Support up to 64 GB* º Intel^® extreme Memory Profile (XMP) 1.3/1.2 Memory Modules º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation º Note:Please refer to the latest Memory support list for details
EXPANSION SLOT	º 4 X PCI Express X16 Gen 3.0 slot(s) º 2 X PCI Express X 1 Gen 2.0 slot(s) º Supports NVIDIA^® SLI Technology º Supports ATI^® CrossfireX Technology
Storage	º Support by Intel® X79 Express Chipset • 6 X Serial ATAIII 6Gb/s • 4 X Serial ATAII 3Gb/s º Support by ASMEDIA ASM1061 Controler • 2 X Serial ATAIII 6Gb/s • 2 X eSATAIII 6Gb/s • RAID0, RAID1,RAID5, RAID 10 configuration º Supports Intel^® Rapid Storage Technology º Supports NCQ, AHCI and "Hot Plug" functions
Audio	º 8-Channel HD audio CODEC º Compliant with HD audio specification º Realtek ALC892 ‧Realtek ALC892 8-channel High Definition audio CODEC ‧Compatible with Direct Sound 3D™, A3D™, I3DL2 ‧Smart multiple streaming operation ‧Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience ‧7.1+2 channel multi-streaming enables concurrent gaming/VoIP
LAN	º Realtek 8111E Gigabit Fast Ethernet Controller º Wake-On-LAN º Dual LAN with Teaming function
USB	º Support by Intel® X79 Express Chipset • 4 X USB3.0 port(s) up to 5Gb/s • 6 X USB2.0 port(s) Up to 480 Mb/s º ECS EZ Charger (Gray USB header)

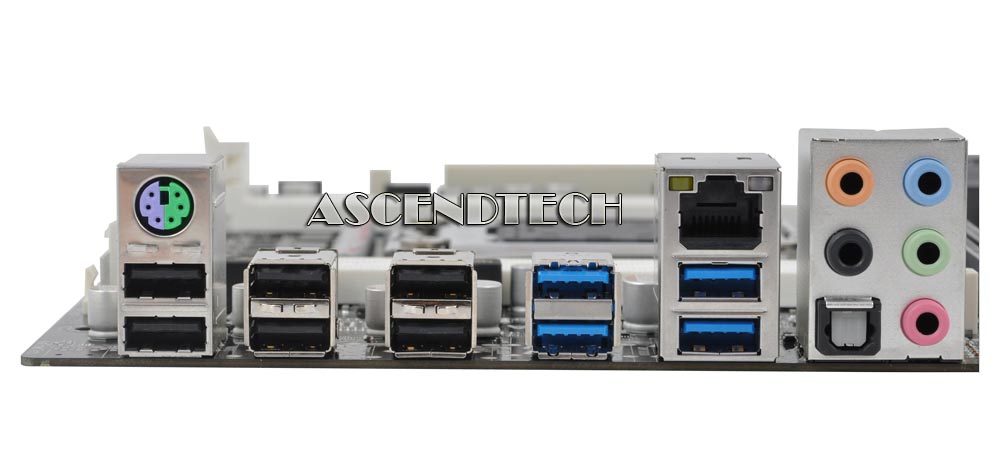

REAR PANEL I/O	º 1 X PS/2 combo connector º 1 X Audio port (Line-in,4x Line-out, SPDIF out) º 2 X RJ-45 port with teaming function º 1 X Wireless LAN Dongle º 1 X Bluetooth Dongle º 2 X eSATA 6Gb/s port(s) º 4 X USB3.0 port(s) º 6 X USB2.0 port(s) º 1 X Clear_CMOS Button
CONNECTORS & HEADERS	º 1 X 24-pin ATX Power Supply connector º 1 X 8-pin ATX 12V Power Connector º 1 X 4-pin Power Connector for Graphics º 1 X 4-pin CPU_FAN connector º 1 X 3-pin SYS_FAN connector º 1 X 3-pin PWR_FAN connector º 1 X Power on button º 1 X Reset button º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Onboard Buzzer º 1 X USB 3.0 header • Support additional 2 USB ports º 2 X USB 2.0 header • Support additional 4 USB ports º Support EZ charger (gray color) º 1 X S/PDIF out header º 8 X SATA III 6Gb/s connector(s) º 4 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 1 X Serial port header (COM) º 1 X 7S-LED Display
SYSTEM BIOS	º AMI BIOS with 64 MB SPI Flash ROM º Supports M.I.B X Utility º ACPI & DMI º F7 hot key for boot up devices option º Over-Clocking º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Supports PgUp clear CMOS Hotkey º * Adjustable CPU Voltage º * Memory Voltage Adjustable º * Support CPU over-clocking function: Adjustable CPU Clock Multiplier
FORM FACTOR	º ATX Form Factor º 305mm(W)*244mm(H)
OS Support	º Windows XP 32-bit º Windows XP 64-bit º Windows Vista 32-bit º Windows Vista 64-bit º Windows 7 32-bit º Windows 7 64-bit
Certifications	º CE/FCC Certification º ErP/EuP Certification º WHQL Certification

CPU Socket List:

Socket	Family	Processor	Wattage	Frequency	Cache	Stepping	Since BIOS
LGA2011	Intel Core™ i7	3820	130W	3.60GHz	10MB	M0	2/6/2012
LGA2011	Intel Core™ i7	3820	130W	3.60GHz	10MB	M1	2/6/2012
LGA 2011	Intel Core™ i7	3930K	130W	3.20GHz	12MB	C0	2/6/2012
LGA2011	Intel Core™ i7	3930K	130W	3.20GHz	12MB	C2	2/6/2012
LGA 2011	Intel Core™ i7	3960X	130W	3.30GHz	15MB	C0	2/6/2012
LGA2011	Intel Core™ i7	3960X	130W	3.30GHz	15MB	C2	2/6/2012
