ECS C51GM-M S.AM2 PCI-E SATA DDR2 MBoard

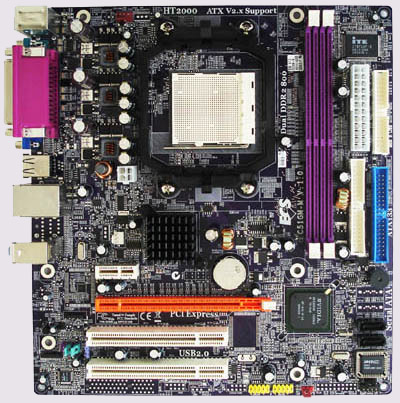

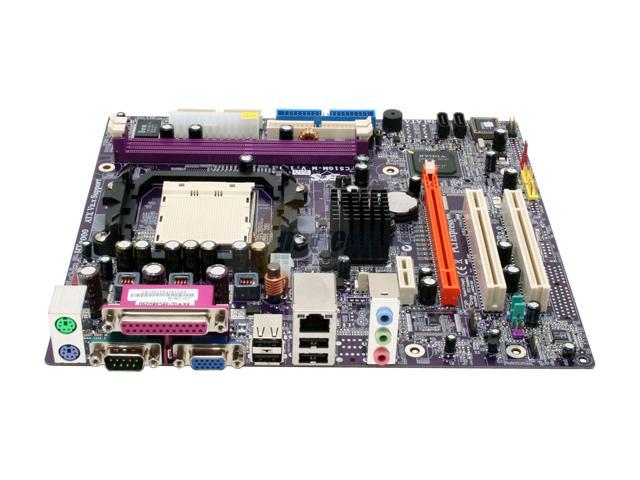

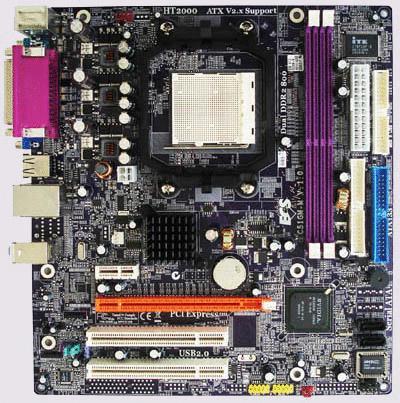

ECS C51GM-M Socket AM2 PCI-E SATA-II DDR2 OEM Motherboard. C51GM-M V 1.0 motherboard features NVIDIA GeForce 6100 & nForce 410, which supports the latest AMD Socket AM2 processors, and provide full support for advanced dual-channel memory up to DDR2 800.


Specifications:

Model: C51GM-M Ver.(1.0) OEM
CPU: Socket AM2 with AMD Athlon 64 FX/ Athlon 64/ Athlon 64 X2 Dual-Core/ Sempron processor
High-performance Hyper Transport CPU interface.
Support transfer rate of 2000/1600/1200/800/400 mega-transfers per second.
CHIPSET NVIDIA: GeForce 6100 & nForce 410
North Bridge: NVIDIA GeForce 6100
South Bridge: NVIDIA nForce 410
GRAPHICS: On Chip (NVIDIA GeForce6100-based. 2D/3D graphic engine)
Share memory: up to 128MB
MEMORY: Dual-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 16 GB
Support DDR2 800/667/533/400 DDR2 SDRAM
EXPANSION SLOT: 1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
STORAGE: Supported by nForce 410
 -- 4 x Ultra DMA133/100/66 devices
 -- 2 x Serial ATA2 devices
RAID0 & RAID1 configuration
AUDIO: Realtek ALC655 6-Channel audio CODEC
Compliant with AC'97 2.3 specification
LAN: Broadcom AC131 10/100 Lan Phy
REAR PANEL I/O:
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x VGA port
1 x Parallel port (LPT1)
1 x Serial port (COM1)
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports two 360K~2.88MB FDDs
2 x IDE connectors
2 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Front panel switch/LED header
1 x Front panel audio header
1 x SPDIF out header
CD in/ AUX in headers
CPUFAN/SYSFAN connectors
SYSTEM BIOS: Award BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR: Micro-ATX Size, 244mm*224mm
PRODUCT TYPE: Recertified
