ECS CDC-I V1.0 Mini ITX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

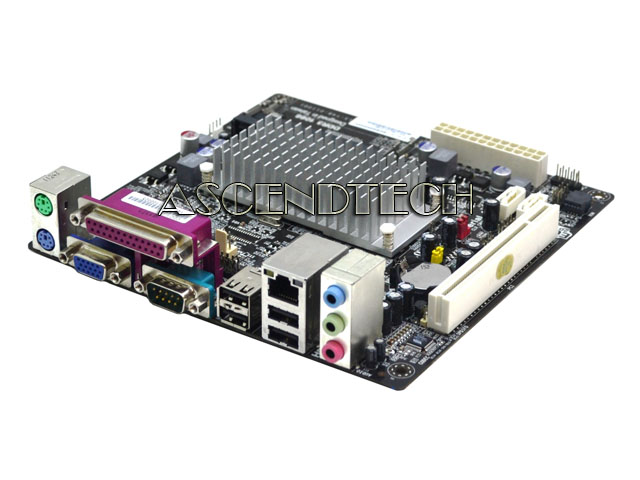

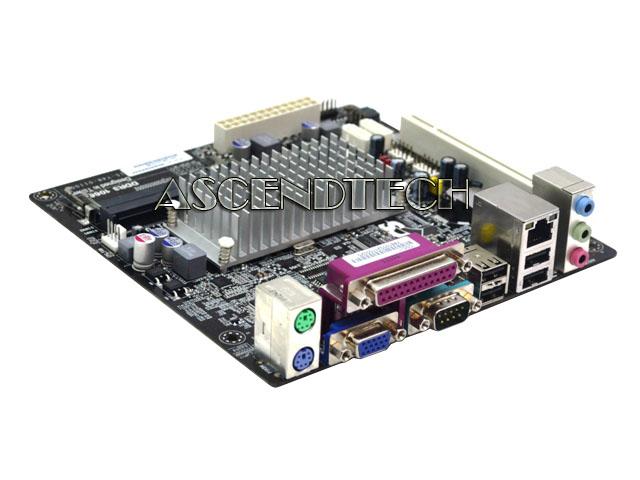

Ecs Cdc-I V1.0 Mini Itx Motherboard
  Enlarge
Ecs Cdc-I V1.0 Mini Itx Motherboard
Ecs Cdc-I V1.0 Mini Itx Motherboard
Ecs Cdc-I V1.0 Mini Itx Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSITXCDCIV10
Brand Ecs - Elitegroup
Model CDC-I V1.0
Category Motherboard & Cpu - Ready To Go Combos

Description

ECS CDC-I V1.0 Intel D2700 Intel NM10 Express DDR3 1066/800 Mini ITX Motherboard.



Features:

Integrated LVDS for an extra display option
Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
Supports DirectX® 10.1 to enhance graphical performance



Specifications:


CPU

º Onboard Intel® D2700 Dual-core processors
º DMI 2.5GT/s
º Solid Capacitor for CPU side
º Supports Intel® Hyper-Threading Technology
º Please refer to CPU support list for details

CHIPSET

º Intel® NM10 Express Chipset

GRAPHICS

º Supports DirectX® 10.1

MEMORY

º Single-channel DDR3 Memory architecture
º Supports DDR3 1066/800 non-ECC, Un-buffered SO DIMM Memory
º 2 X DDR3 SO-DIMM socket
º Support up to 4 GB*
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 X PCI slot(s)

Storage

º Support by Intel® NM10 Express Chipset
    • 2 X Serial ATAII 3Gb/s
º Supports NCQ, AHCI and "Hot Plug" functions

Audio

º 6-Channel HD audio CODEC
º VIA 1705
‧VIA® VT1705 6-channel High Definition audio CODEC
‧Compliant with HD audio specification for a whole new immersive surround sound experience
‧3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
‧Low Power Consumption
‧Capability for “full rate” BluRay / DVD / HD DVD support.

LAN

º Realtek 8105 10/100Mbps Fast Ethernet Controller
º (Realtek 8111E Gigabit Fast Ethernet Controller optional)
º Wake-On-LAN

USB

º Support by Intel NM10 Express Chipset
    • 8 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 4 port(s)

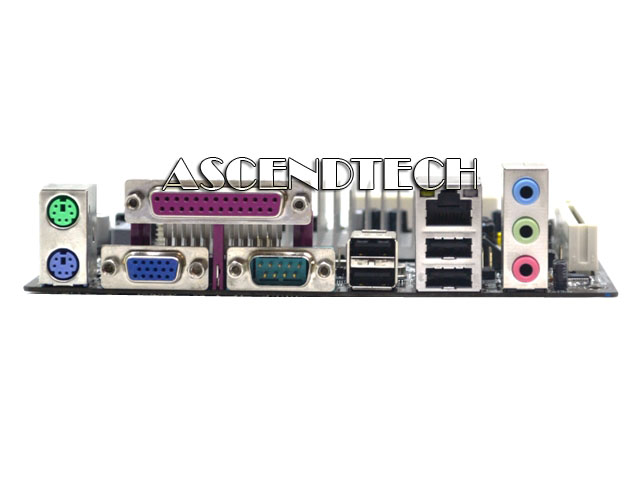

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Serial port (COM)
º 1 X Parallel port (LPT)
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X D-Sub (VGA) port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Speaker header
º 2 X USB 2.0 header
    • Support additional 4 USB ports
º 1 X S/PDIF out header
º 2 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Chassis intrusion header
º 1 X LVDS connector (optional)

SYSTEM BIOS

º AMI BIOS with 32 MB SPI Flash ROM

FORM FACTOR

º Mini ITX Form Factor
º  170mm(W)*170mm(H)

OS Support

º Windows 7 32-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification





CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

FCBGA559

Intel Atom™

D2700

10W

2.13GHz

1MB

B3

02/23/2013
