ECS CDC-M/D2550 V1.0 Intel Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

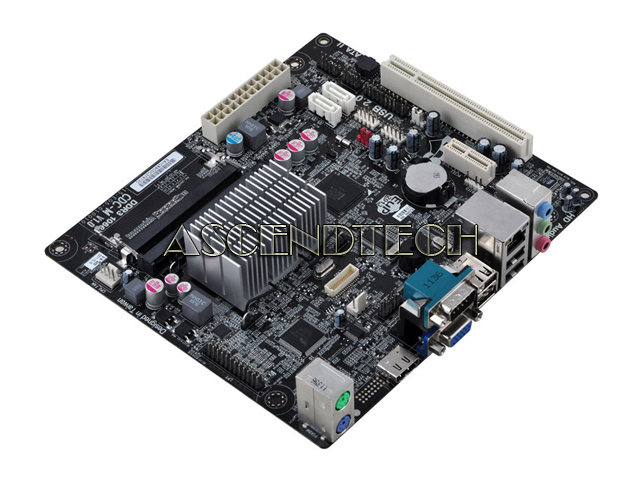

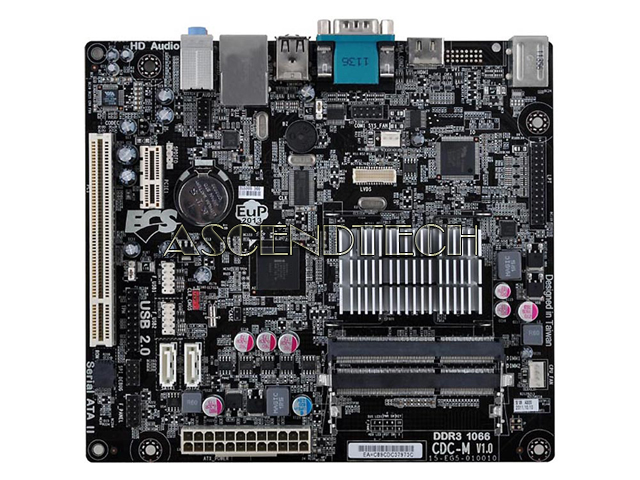

Ecs Cdc-M/D2550 V1.0 Intel Motherboard
  Enlarge
Ecs Cdc-M/D2550 V1.0 Intel Motherboard
Ecs Cdc-M/D2550 V1.0 Intel Motherboard
Ecs Cdc-M/D2550 V1.0 Intel Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSCDCMD25501
Brand Ecs - Elitegroup
Model ECS CDC-M/D2550 V1.0
Category Motherboard & Cpu - Ready To Go Combos

Description

ECS CDC-M/D2550 V1.0 Intel Atom D2550 Intel NM10 Micro ATX Motherboard. When it comes to the quality and durability of your motherboard, ECS goes above and beyond industry standards to ensure that you have a motherboard that will last long and always continue to out perform the competition. ECS meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Features:

  • Integrated LVDS for an extra display option
  • Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
  • ECS Durathon Technology ensure the stability, reliability and performance of system. (Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs)
  • ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
  • Supports DirectX® 10.1 to enhance graphical performance

Specifications:

CPU

º Onboard Intel® Atom D2550 processors
º Solid Capacitor for CPU side
º Supports Intel® Hyper-Threading Technology

CHIPSET

º Intel® NM10 Express Chipset

GRAPHICS

º Supports DirectX® 10.1

MEMORY

º Single-channel DDR3 Memory architecture
º Supports DDR3 1066/800 non-ECC, Un-buffered SO DIMM Memory
º 2 X DDR3 SO-DIMM socket
º Support up to 4 GB*
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 X PCI Express X 1 Gen 2.0 slot(s)
º 1 X PCI slot(s)

Storage

º Support by Intel® NM10 Express Chipset
    • 2 X Serial ATAII 3Gb/s
º Supports NCQ, AHCI and "Hot Plug" functions

Audio

º 6-Channel HD audio CODEC
º VIA 1705
‧VIA® VT1705 6-channel High Definition audio CODEC
‧Compliant with HD audio specification for a whole new immersive surround sound experience
‧3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
‧Low Power Consumption
‧Capability for “full rate” BluRay / DVD / HD DVD support.

LAN

º Realtek 8105 10/100Mbps Fast Ethernet Controller
º (Realtek 8111E Gigabit Fast Ethernet Controller optional)
º Wake-On-LAN

USB

º Support by Intel NM10 Express Chipset
    • 8 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 4 port(s)

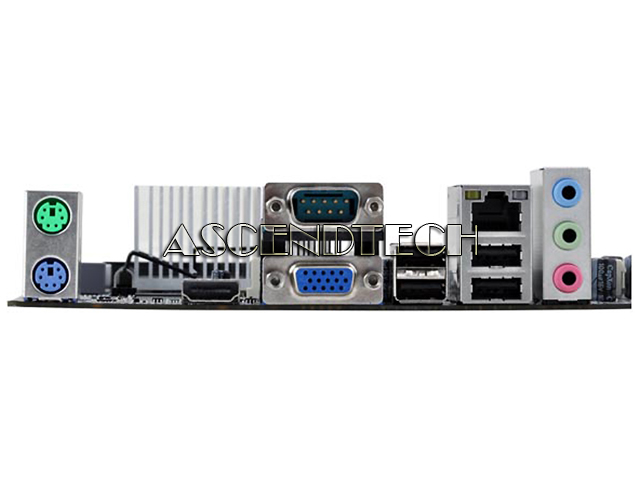

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Serial port (COM)
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X DVI-D port(s) (optional)
º 1 X D-Sub (VGA) port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Onboard Buzzer
º 2 X USB 2.0 header
    • Support additional 4 USB ports
º 1 X S/PDIF out header
º 2 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X Chassis intrusion header
º 1 X LVDS connector (optional)

SYSTEM BIOS

º AMI BIOS with 32 MB SPI Flash ROM

FORM FACTOR

º mATX Form Factor
º 190mm(W)*170mm(H)

OS Support

º Windows 7 32-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
