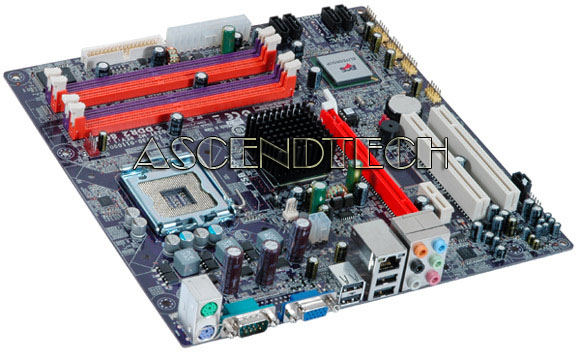

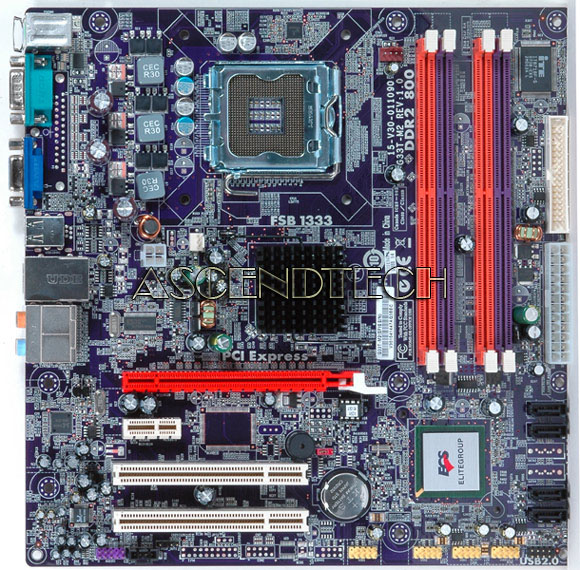

ECS G33T-M2 Intel G33 1333FSB DDR2 SATA2

ECS G33T-M2 motherboard features the Intel® G33 and ICH9 chipsets, which deliver outstanding performance to support Intel latest Wolfdale, Yorkfield, Core 2 Quad and Core 2 Duo processors, and dual-channel DDR2 memory up to 800MHz. Additionally, within high definition audio and PCI Express Gigabit Ethernet, G33T-M2 enables enhanced audio performance and faster connecting experience. G33T-M2 supports Intel 45nm Core 2 Duo and Core 2 Quad processors.

Features & Specifications:

CPU:
LGA775 socket for latest Intel® Core 2 Quad(95W) / Core 2 Duo / Pentium Dual-Core (E21XX) / Celeron 4XX series processor
Supports Intel 45nm Core 2 Quad(Yorkfield) and Core2 Duo(Wolfdale) series processors. (please refer to the CPU support list for more detail)
FSB: 1333/1066/800 MHz
CHIPSET:
Intel® G33 & ICH9
North Bridge: Intel® G33
South Bridge: Intel® ICH9
GRAPHICS:
Integrated Intel® Graphics Media Accelerator 3100 (GMA3100)
Max Dynamic Video Memory : 287MB (Vista) / 384MB (XP)
MEMORY:
Dual-channel DDR2 memory architecture
4 x 240-pin DDR2 DIMM socket support up to 8 GB
Support DDR2 800/667 DDR SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
STORAGE:
Support by Intel® ICH9
4 x Serial ATA2 devices
AUDIO:
Realtek ALC883 support Intel 8-ch HD Audio
LAN:
Realtek GigaLAN 8111B (Realtek 10/100 LAN 8101E optional)
REAR PANEL I/O:
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x VGA port
1 x Serial port (COM1)
1 x Parallel port (LPT1) (Optional)
1 x 1394a port(optional)
1 x RJ45 LAN connector
1 x Audio port
INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports two 360K~2.88MB FDDs
4 x Serial ATA connectors
1 x COM2 header (optional)
4 x USB 2.0 headers support additional 8 USB ports
1 x 1394a header(optional)
1 x Clear CMOS header
1 x Front panel header
1 x Front panel audio header
CD in header
CPUFAN/SYSFAN connectors
SYSTEM BIOS:
AMI BIOS with 8Mb SPI ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR:
Micro-ATX Size, 244mm*244mm

CPU Support List:
Intel Core 2 Quad processor Q9550 (C1) 1333MHz (2x6MB,2.83 GHz,LGA775)
Intel Core 2 Quad processor Q9550 (C0) 1333MHz (2x6MB,2.83 GHz,LGA775)
Intel Core 2 Quad processor Q9450 (C1) 1333MHz (2x6MB,2.66 GHz,LGA775)
Intel Core 2 Quad processor Q9450 (C0) 1333MHz (2x6MB,2.66 GHz,LGA775)
Intel Core 2 Quad processor Q6700 (G0) 2.66 GHz (2x4MB,1066 MHz,LGA775)
Intel Core 2 Quad processor Q6600 (G0) 2.66 GHz (2x4MB,1066 MHz,LGA775)
Intel Core 2 Quad processor Q6600 (B3) 2.40 GHz (2x4MB,1066 MHz,LGA775)
Intel Core 2 Duo E8500 (C0) 3.16 GHz (6MB,1333MHz,LGA775)
Intel Core 2 Duo E8400 (C0) 3.00 GHz (6MB,1333MHz,LGA775)
Intel Core 2 Duo E8200 (C0) 2.66 GHz (6MB,1333MHz,LGA775)
Intel Core 2 Duo E8190 (C0) 2.66 GHz (6MB,1333MHz,LGA775)
Intel Core 2 Duo E6850 (G0) 3.0 GHz (2x2MB,1333 MHz,LGA775)
Intel Core 2 Duo E6850 (E0) 3.0 GHz (2x2MB,1333 MHz,LGA775)
Intel Core 2 Duo E6750 (G0) 2.66 GHz (2x2MB,1333 MHz,LGA775)
Intel Core 2 Duo E6750 (E0) 2.66 GHz (2x2MB,1333 MHz,LGA775)
Intel Core 2 Duo E6700 (B2) 2.66 GHz (4MB,1066 MHz,LGA775)
Intel Core 2 Duo E6600 (B2) 2.40 GHz (4MB,1066 MHz,LGA775)
Intel Core 2 Duo E6550 (G0) 2.33 GHz (2x2MB,1333 MHz,LGA775)
Intel Core 2 Duo E6540 (G0) 2.33 GHz (2x2MB,1333 MHz,LGA775)
Intel Core 2 Duo E6420 (B2) 2.13 GHz (4MB,1066 MHz,LGA775)
Intel Core 2 Duo E6400 (B2) 2.13 GHz (2MB,1066 MHz,LGA775)
Intel Core 2 Duo E6320 (B2) 1.86 GHz (4MB,1066 MHz,LGA775)
Intel Core 2 Duo E6300 (B2) 1.86 GHz (2MB,1066 MHz,LGA775)
Intel Core 2 Duo E4600 (M0) 2.4 GHz (2x1MB,800 MHz,LGA775)
Intel Core 2 Duo E4500 (M0) 2.20 GHz (2MB,800 MHz,LGA775)
Intel Core 2 Duo E4400 (L2) 2.00 GHz (2MB,800 MHz,LGA775)
Intel Core 2 Duo E4300 (L2) 1.80 GHz (2MB,800 MHz,LGA775)
Intel Pentium Dual-Core E2180 (M0) 2.00 GHz (1MB,800 MHz,LGA775)
Intel Pentium Dual-Core E2160 (L2) 1.80 GHz (1MB,800 MHz,LGA775)
Intel Pentium Dual-Core E2140 (L2) 1.60 GHz (1MB,800 MHz,LGA775)
Intel Celeron Dual-Core E1600 2.4 GHz (512 KB,800 MHz,LGA775)
Intel Celeron Dual-Core E1200 1.60 GHz (512 KB,800 MHz,LGA775)
Intel Celeron 460 (A1) 2.4 GHz (512KB,800 MHz,LGA775)
Intel Celeron 440 (A1) 2.0 GHz (512KB,800 MHz,LGA775)
Intel Celeron 430 (A1) 1.8 GHz (512KB,800 MHz,LGA775)
Intel Celeron 420 (A1) 1.6 GHz (512KB,800 MHz,LGA775)
