ECS G41T-M7 LGA775 DDR3 SATA Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

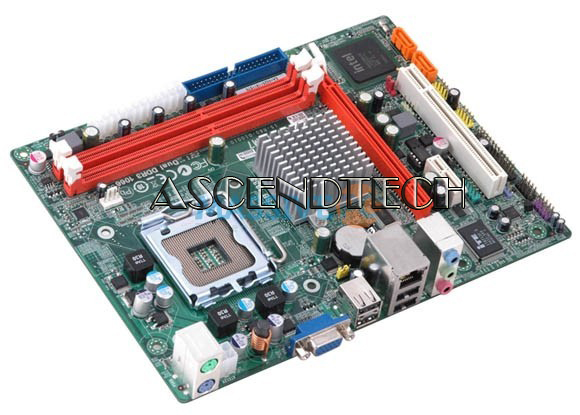

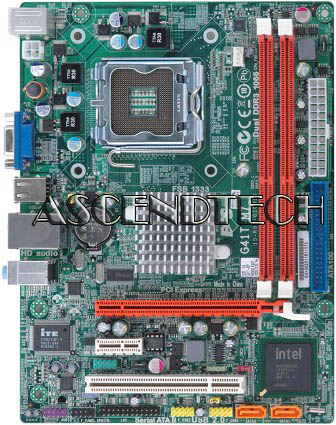

Ecs G41t-M7 Lga775 Ddr3 Sata Motherboard
  Enlarge
Ecs G41t-M7 Lga775 Ddr3 Sata Motherboard
Ecs G41t-M7 Lga775 Ddr3 Sata Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSG41TM7V10M
Brand Ecs - Elitegroup
Model G41T-M7
Category Intel Lga775 Motherboards

Description

ECS G41T-M7 LGA 775 Intel G41 Micro ATX Motherboard. G41T-M7 features Intel G41 and ICH7 chipsets, by supporting Intel 45nm Core 2 Quad* and Core 2 Duo processors, it provides impressive performance. Additionally, G41T-M7 is equipped with 2 DIMM DDR3 up to 8GB, which means good scalability and enhances the efficiency appreciably. With its ultra small form factor of 225x170mm, ECS G41T-M7 brings outstanding performance without high price tag.





Features:

CPU

LGA775 socket for Core™2 Quad/Core™2 Duo/ Pentium Dual Core/ Celeron Dual Core/ Celeron 400 series processors
LGA775 socket for latest Intel 45nm Multi-Core processors
FSB 1333/1066/800 MHz

CHIPSET

Intel® G41 & ICH7
North Bridge: Intel G41
South Bridge: Intel ICH7

GRAPHICS

Integrated Intel Graphics Media Accelerator X4500 ( GMA X4500 )
Integrated DirectX 10 graphics processor

Memory

Dual-channel DDR3 memory architecture
2 x 240-pin DDR3 DIMM socket support up to 8 GB
Support DDR3 1333/1066/800 SDRAM*

Expansion Slot

1 x PCI Express x16 slot
1 x PCI Express x1 slot
1 x PCI slot

Storage

Support by Intel® ICH7
2 x Ultra DMA100/66 devices
2 x Serial ATA 3.0Gb/s devices

Audio

VIA VT1705 6-channel audio CODEC
Compliant with HD audio specification

LAN

RealTek 8103EL 10/100 Fast Ethernet NIC ( Gigabit LAN optional)

Rear Panel I/O

1 x PS/2 keyboard & PS/2 mouse connectors
1 x D-sub(VGA)
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)
4 x USB 2.0 Ports

Internal I/O Connectors & Headers

1 x 24-pin ATX Power Supply connector
1 x 4pin CPU_FAN connectors
1 x IDE connector
1 x Speaker header
1 x Front panel switch/LED header
1 x Front panel audio header
1 x SPDIF out header
1 x CLR COMS
1 x 4-pin power connector for VGA card
1 x COM header
1 x Parallel Header
2 x SATA ports
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x Chassis intrusion header

System BIOS

AMI BIOS with 8Mb SPI ROM
Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Supports ACPI & DMI
Audio, LAN, can be disabled in BIOS
F11 hot key for boot up devices option

Form Factor

Micro-ATX Size, 225mm*170mm





Specifications:

CPU

º LGA775 socket for Core™2 Quad*/Core™2 Duo/ Pentium® Dual Core/ Celeron® Dual Core/ Celeron® 400 series processors
º LGA775 socket for latest Intel® 45nm Multi-Core processors
º FSB 1333/1066/800 MHz

CHIPSET

º Intel® G41 & ICH7
º North Bridge: Intel® G41
º South Bridge: Intel® ICH7

GRAPHICS

º Integrated Intel Graphics Media Accelerator X4500 ( GMA X4500 )
º Integrated DirectX 10 graphics processor

MEMORY

º Dual-channel DDR3 memory architecture
º 2 x 240-pin DDR3 DIMM socket support up to 8 GB
º Support DDR3 1333/1066/800 SDRAM*
º *Through BIOS setting, this motherboard can over clock to DDR3 1220 MHz when using DDR3 1333 SDRAM with FSB 1066 CPU. (Please update the latest BIOS and refer to the CPU support list/ Memory support list)
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 x PCI Express x16 slot
º 1 x PCI Express x1 slot
º 1 x PCI slot

STORAGE

º Support by Intel® ICH7
    • 2 x Ultra DMA100/66 devices
    • 2 x Serial ATA 3.0Gb/s devices

AUDIO

º VIA® VT1705 6-channel audio CODEC
º Compliant with HD audio specification

LAN

º RealTek 8103EL 10/100 Fast Ethernet NIC ( Gigabit LAN optional)

REAR PANEL I/O

º 1 x PS/2 keyboard & PS/2 mouse connectors
º 1 x D-sub(VGA)
º 1 x RJ45 LAN connector
º 1 x Audio port (Line-in, Line-out, Mic-in)
º 4 x USB 2.0 Ports

INTERNAL I/O CONNECTORS & HEADERS

º 1 x 24-pin ATX Power Supply connector
º 1 x 4-pin CPU_FAN connector
º 1 x IDE connector
º 1 x Speaker header
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x SPDIF out header
º 1 x CLR COMS
º 1 x 4-pin power connector for VGA card
º 1 x COM header
º 1 x Parallel Header
º 2 xSATA ports
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x Chassis intrusion header

SYSTEM BIOS

º AMI BIOS with 8Mb SPI ROM
º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Supports ACPI & DMI
º Audio, LAN, can be disabled in BIOS
º F11 hot key for boot up devices option

FORM FACTOR

º Micro-ATX Size, 225mm*170mm



CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.


Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA775

Intel Core 2 Quad processor

Q6600 (G0) (95W)

N/A

2.40 GHz

8MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q6700 (G0) (95W)

N/A

2.66 GHz

2x4MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q8200 (M1) (95W)

N/A

2.33 GHz

4MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q8200 (R0) (95W)

N/A

2.33 GHz

4MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q8200s (R0) (65W)

N/A

2.33 GHz

4MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q8300 (R0) (95W)

N/A

2.5 GHz

4MB

N/A

09/02/2011

LGA755

Intel Core 2 Quad processor

Q8400 (R0) (95W)

N/A

2.66 GHz

4MB

N/A

09/02/2011

LGA755

Intel Core 2 Quad processor

Q8400s (R0) (65W)

N/A

2.66 GHz

4MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9300 (M1) (95W)

N/A

2.50GHz

2x3 MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9300(M0) (95W)

N/A

2.5GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9400 (R0) (95W)

N/A

2.66 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9450 (C0) (95W)

N/A

2.66 GHz

2x6MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9450 (C1) (95W)

N/A

2.66 GHz

2x6MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9450 (M1) (95W)

N/A

2.66GHz

12MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9500 (R0) (95W)

N/A

2.83 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9505 (R0) (95W)

N/A

2.83 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9505s (R0) (65W)

N/A

2.83 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9550 (C0) (95W)

N/A

2.83 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9550 (C1) (95W)

N/A

2.83 GHz

2x6MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9550 (E0) (95W)

N/A

2.83 GHz

2x6 MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9550 (M1) (95W)

N/A

2.83GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Quad processor

Q9650 (E0) (95W)

N/A

3.0 GHz

2x6MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E4300 (L2) (65W)

N/A

1.80 GHz

2MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E4400 (L2) (65W)

N/A

2.00 GHz

2MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E4400 (M0) (65W)

N/A

2.0 GHz

2MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E4500 (M0) (65W)

N/A

2.20 GHz

2MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E4600 (M0) (65W)

N/A

2.4 GHz

2MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E4700 (G0) (65W)

N/A

2.6 GHz

2MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E6320 (B2) (65W)

N/A

1.86 GHz

4MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E6400 (B2) (65W)

N/A

2.13 GHz

2MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E6420 (B2) (65W)

N/A

2.13 GHz

4MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E6540 (G0) (65W)

N/A

2.33 GHz

4MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E6550 (G0) (65W)

N/A

2.33 GHz

4MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E6600 (B2) (65W)

N/A

2.40 GHz

4MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E6700 (B2) (65W)

N/A

2.66 GHz

4MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E7200 (M0) (65W)

N/A

2.53GHz

3MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E7300 (M0) (65W)

N/A

2.66 GHz

3MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E7400 (R0) (65W)

N/A

2.80 GHz

3MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E7500 (R0) (65W)

N/A

2.93 GHz

3MB

N/A

09/02/2011

LGA755

Intel Core 2 Duo

E7600 (R0) (65W)

N/A

3.06 GHz

3MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E8190 (C0) (65W)

N/A

2.66 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E8200 (C0) (65W)

N/A

2.66 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E8300 (C0) (65W)

N/A

2.83 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E8400 (C0) (65W)

N/A

3.00 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E8400 (E0) (65W)

N/A

3.0 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E8500 (C0) (65W)

N/A

3.16 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E8500 (E0) (65W)

N/A

3.16 GHz

6MB

N/A

09/02/2011

LGA775

Intel Core 2 Duo

E8600 (E0) (65W)

N/A

3.33 GHz

6MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E2140 (M0) (65W)

N/A

1.6GHz

1MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E2160 (M0) (65W)

N/A

1.80GHz

1MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E2180 (M0) (65W)

N/A

2.00GHz

1MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E2200 (M0) (65W)

N/A

2.20GHz

1MB

N/A

09/02/2011

LGA755

Intel Pentium Dual-Core

E2210 (M0) (65W)

N/A

2.2GHz

1MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E2220 (M0) (65W)

N/A

2.40GHz

1MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E5200 (R0) (65W)

N/A

2.50GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E5300 (R0) (65W)

N/A

2.60GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E5400 (R0) (65W)

N/A

2.70GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E5500 (R0) (65W)

N/A

2.80GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E5600

65W

2.80GHz

2MB

R0

09/02/2011

LGA775

Intel Pentium Dual-Core

E5700 (R0) (65W)

N/A

3.00 GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E5800 (R0)(65W)

N/A

3.2GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E5900 (R0) (65W)

N/A

3.4GHz

2MB

N/A

09/02/2011

LGA755

Intel Pentium Dual-Core

E6300 (R0) (65W)

N/A

2.8 GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E6500 (R0) (65W)

N/A

2.93GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E6500K (R0) (65W)

N/A

2.93GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E6600 (R0) (65W)

N/A

3.06GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E6700 (R0) (65W)

N/A

3.20GHz

2MB

N/A

09/02/2011

LGA775

Intel Pentium Dual-Core

E6900 (R0) (65W)

N/A

3.46GHz

2MB

N/A

09/02/2011

LGA775

Intel Celeron

420 (A1) (35W)

N/A

1.6 GHz

512KB

N/A

09/02/2011

LGA775

Intel Celeron

430 (A1) (35W)

N/A

1.8 GHz

512KB

N/A

09/02/2011

LGA775

Intel Celeron

440 (A1) (35W)

N/A

2.0 GHz

512KB

N/A

09/02/2011

LGA775

Intel Celeron

450 (A1) (35W)

N/A

2.20 GHz

512KB

N/A

09/02/2011

LGA775

Intel Celeron

460 (A1) (35W)

N/A

2.4 GHz

512KB

N/A

09/02/2011

LGA775

Intel Celeron

E1500 (M0) (65W)

N/A

2.2GHz

512KB

N/A

09/02/2011

LGA775

Intel Celeron

E1600 (M0) (65W)

N/A

2.4 GHz

512KB

N/A

09/02/2011

LGA775

Intel Celeron

E3200 (R0) (65W)

N/A

2.4GHz

1MB

N/A

09/02/2011

LGA775

Intel Celeron

E3300 (R0) (65W)

N/A

2.5GHz

1MB

N/A

09/02/2011

LGA775

Intel Celeron

E3400 (R0) (65W)

N/A

2.60GHz

1MB

N/A

09/02/2011

LGA775

Intel Celeron

E3900 (R0) (65W)

N/A

3.40 GHz

1MB

N/A

09/02/2011
