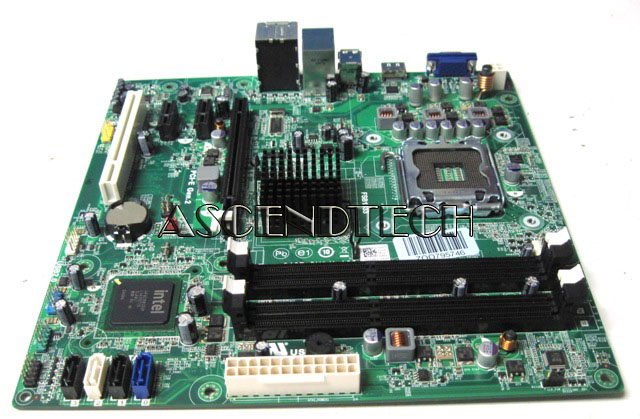

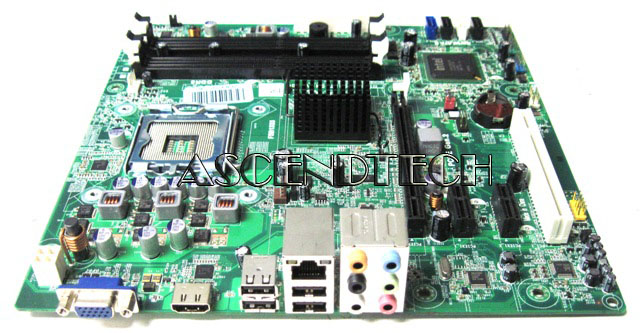

ECS G43T-DM1 LGA775 G43 DDR3 SATA2 HDMI

ECS G43T-DM1 G43 LGA775 Motherboard. ECS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Manufacturer: ECS
Model Number: G43T-DM1

Specifications:

Socket 775 architecture
mATX form factor
Intel G43 / ICH10 chipset
Four (4) 240-pin DDR3 DIMM slots
Supports up to 8 GB DDR3 dual channel memory (1066 MHz)
Integrated Intel Graphics Media Accelerator X4500 with up to 1759 MB dynamic video memory
Integrated Realtek ALC 888S 8-channel HD audio
Integrated Atheros AR8121-L1E Gigabit Ethernet LAN
Four (4) Serial ATA 3.0 Gb/s ports
24-pin ATX power connector
4-pin ATX12V power connector
Lead-free components (RoHS compliant)

Expansion Slots:
One (1) PCI Express x16 slot
Two (2) PCI Express x1 slots
One (1) PCI slot

I/O Ports:
One (1) VGA port
One (1) HDMI out
Four (4) USB 2.0 ports
One (1) RJ-45 GbLAN
Line in, line out, microphone audio
Side, rear, c/sub audio

Internal Headers:
One (1) SPDIF header
One (1) front panel header
One (1) front panel audio header
One (1) CD-In
One (1) 9-pin Serial/COM header
Three (3) USB 2.0 headers (six ports total)

Supported Processors:
Socket 775
1333/1066/800 MHz FSB speeds
Intel Core 2 Quad
Intel Core 2 Duo
Intel Pentium Dual-Core
Intel Celeron Dual-Core
Intel Celeron 4xx-series
