ECS G43T-M LGA775 G43 FSB1333 DDR2 SATA2

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

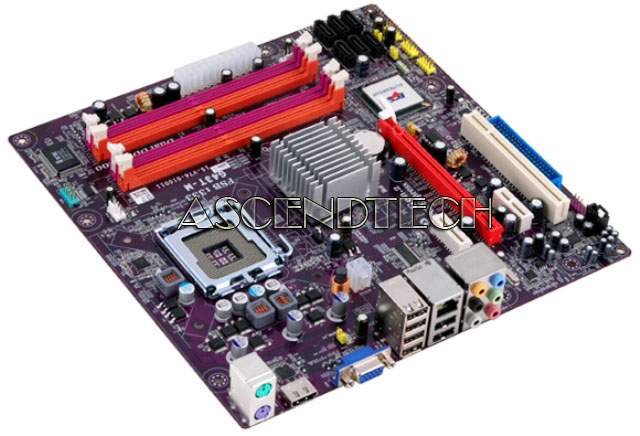

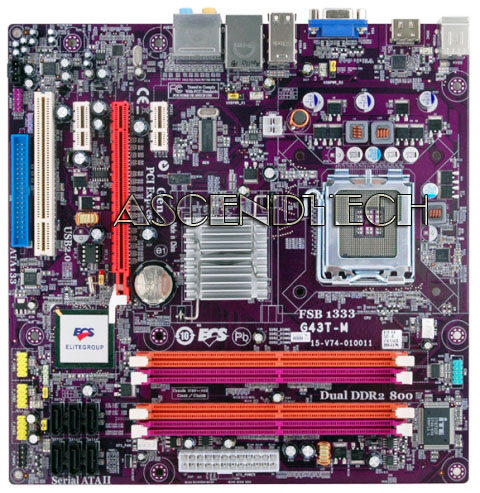

Ecs G43t-M Lga775 G43 Fsb1333 Ddr2 Sata2. Model: G43t-M V1.0A Eaglelake
  Enlarge
Ecs G43t-M Lga775 G43 Fsb1333 Ddr2 Sata2. Model: G43t-M V1.0A Eaglelake
Ecs G43t-M Lga775 G43 Fsb1333 Ddr2 Sata2. Model: G43t-M V1.0A Eaglelake
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4ECSG43TMV10A
Brand Ecs - Elitegroup
Model G43T-M V1.0A Eaglelake
Category Intel Lga775 Motherboards

Description

ECS G43T-M V1.0A LGA 775 Intel G43 HDMI Micro ATX Motherboard. G43T-M, ECS Mainstream product 2008, features Intel® G43 and ICH10 chipsets, by supporting FSB1333 and DDR2 800 with 4 DIMMs, providing great performance. Moreover, G43T-M is integrated GMA X4500 graphic engine, supports smooth HD playback and Vista Premium Eligible with DX10. Furthermore, G43T-M also provides ultimate graphics performance through PCI-E Gen2.0 x16 interface, upgrades your visual experience. G43T-M is the best choice for your life experience.





Specifications:

CPU

º LGA775 socket for latest Intel Yorkfield/ Wolfdale/ Core 2 Quad/ Core 2 Duo/ Pentium Dual Core/ Celeron Dual Core/ Celeron 4xx processor
º FSB 1333/1066/800 MHz

CHIPSET

º Intel® Eaglelake G43 & ICH10
º North Bridge: Intel® Eaglelake G43
º South Bridge: Intel® ICH10

GRAPHICS

º Integrated Intel Graphics Media Accelerator X4500 ( GMA X4500 )
º Integrated DirectX 10 graphics processor
º Max Dynamic Video Memory : 1759MB (Vista) / 1GB (WinXP)

MEMORY

º Dual-channel DDR2 memory architecture
º 4 x 240-pin DDR2 DIMM socket support up to 8 GB
º (Please insert two Single Bank memory modules to each channel when using one channel with two dimms.)
º For more information, please refer QVL memory list on ECS website
º Support DDR2 800/667 DDR2 SDRAM
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 x PCI Express x16 slot
º 2 x PCI Express x1 slots
º 1 x PCI slot

STORAGE

º Support by Intel® ICH10
    • 6 x Serial ATA 3.0Gb/s devices
º Support by JMB 361
    • 1 x IDE channel support 2 Ultra DMA133/100/66 devices

AUDIO

º Realtek ALC 888S supports 8-channel HD audio

LAN

º Gigabit LAN, Atheros AR8121-L1E GigaLAN controller

REAR PANEL I/O

º 1 x PS/2 keyboard & PS/2 mouse connectors
º 6 x USB 2.0 ports
º 1 x RJ45 LAN connector
º 1 x Audio port
º 1 x VGA port
º 1 x HDMI Port

INTERNAL I/O CONNECTORS & HEADERS

º 1 x 24-pin ATX Power Supply connector
º CPUFAN/SYSFAN connectors
º 1 x IDE connector
º 1 x Speaker header
º 1 x SPDIF out header
º 6 x Serial ATA 3Gb/s connectors
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x CD in header
º 3 x USB 2.0 headers support additional 6 USB ports
º 1 x COM1 header
º 1 x Clear CMOS header

SYSTEM BIOS

º AMI BIOS with 8Mb SPI Flash ROM
º Supports Plug and Play, STR/STD, Hardware monitor, PCI interrupt selection, ACPI & DMI, CPU FSB adjustment (increase of 1MHz)
º Supports STR(S3)& STD(S4)
º Audio, LAN, can be disabled in BIOS
º F11 hot key for boot up devices option
    • Memory voltage adjustable
º PECI Supports

FORM FACTOR

º Micro-ATX Size, 244mm*244mm





CPU Socket List:

Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA775

Intel Core 2 Extreme

EX6800 (B2) (75W)

N/A

2.93 GHz

2x2MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q6600 (G0) (95W)

N/A

2.40 GHz

8MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q6700 (G0) (95W)

N/A

2.66 GHz

2x4MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q8200 (M1) (95W)

N/A

2.33 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q8200 (R0) (95W)

N/A

2.33 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q8200s (R0) (65W)

N/A

2.33 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q8300 (R0) (95W)

N/A

2.5 GHz

4MB

N/A

09/01/07

LGA755

Intel Core 2 Quad processor

Q8400 (R0) (95W)

N/A

2.66 GHz

4MB

N/A

09/01/07

LGA755

Intel Core 2 Quad processor

Q8400s (R0) (65W)

N/A

2.66 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q9400 (R0) (95W)

N/A

2.66 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q9450 (C0) (95W)

N/A

2.66 GHz

2x6MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q9500 (R0) (95W)

N/A

2.83 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q9505 (R0) (95W)

N/A

2.83 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Quad processor

Q9550 (C0) (95W)

N/A

2.83 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E4300 (L2) (65W)

N/A

1.80 GHz

2MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E4400 (L2) (65W)

N/A

2.00 GHz

2MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E4400 (M0) (65W)

N/A

2.0 GHz

2MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E4500 (M0) (65W)

N/A

2.20 GHz

2MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E4600 (M0) (65W)

N/A

2.4 GHz

2MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E6300 (B2) (65W)

N/A

1.86 GHz

2MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E6320 (B2) (65W)

N/A

1.86 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E6400 (B2) (65W)

N/A

2.13 GHz

2MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E6420 (B2) (65W)

N/A

2.13 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E6540 (G0) (65W)

N/A

2.33 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E6550 (G0) (65W)

N/A

2.33 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E6600 (B2) (65W)

N/A

2.40 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E6700 (B2) (65W)

N/A

2.66 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E6750 (G0) (65W)

N/A

2.66 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E6850 (G0) (65W)

N/A

3.00 GHz

4MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E7300 (M0) (65W)

N/A

2.66 GHz

3MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E7400 (R0) (65W)

N/A

2.80 GHz

3MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E7500 (R0) (65W)

N/A

2.93 GHz

3MB

N/A

09/01/07

LGA755

Intel Core 2 Duo

E7600 (R0) (65W)

N/A

3.06 GHz

3MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E8190 (C0) (65W)

N/A

2.66 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E8200 (C0) (65W)

N/A

2.66 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E8300 (C0) (65W)

N/A

2.83 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E8400 (C0) (65W)

N/A

3.00 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E8400 (E0) (65W)

N/A

3.0 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E8500 (C0) (65W)

N/A

3.16 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E8500 (E0) (65W)

N/A

3.16 GHz

6MB

N/A

09/01/07

LGA775

Intel Core 2 Duo

E8600 (E0) (65W)

N/A

3.33 GHz

6MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E2140 (L2) (65W)

N/A

1.6GHz

1MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E2140 (M0) (65W)

N/A

1.6GHz

1MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E2160 (L2) (65W)

N/A

1.80GHz

1MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E2160 (M0) (65W)

N/A

1.80GHz

1MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E2180 (M0) (65W)

N/A

2.00GHz

1MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E5200 (R0) (65W)

N/A

2.50GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E5300 (R0) (65W)

N/A

2.60GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E5400 (R0) (65W)

N/A

2.70GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E5500 (R0) (65W)

N/A

2.80GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E5600

65W

2.80GHz

2MB

R0

09/01/07

LGA775

Intel Pentium Dual-Core

E5700 (R0) (65W)

N/A

3.00 GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E5800 (R0)(65W)

N/A

3.2GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E5900 (R0) (65W)

N/A

3.4GHz

2MB

N/A

09/01/07

LGA755

Intel Pentium Dual-Core

E6300 (R0) (65W)

N/A

2.8 GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E6500 (R0) (65W)

N/A

2.93GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E6500K (R0) (65W)

N/A

2.93GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E6600 (R0) (65W)

N/A

3.06GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E6700 (R0) (65W)

N/A

3.20GHz

2MB

N/A

09/01/07

LGA775

Intel Pentium Dual-Core

E6900 (R0) (65W)

N/A

3.46GHz

2MB

N/A

09/01/07

LGA775

Intel Celeron

420 (A1) (35W)

N/A

1.6 GHz

512KB

N/A

09/01/07

LGA775

Intel Celeron

430 (A1) (35W)

N/A

1.8 GHz

512KB

N/A

09/01/07

LGA775

Intel Celeron

440 (A1) (35W)

N/A

2.0 GHz

512KB

N/A

09/01/07

LGA775

Intel Celeron

460 (A1) (35W)

N/A

2.4 GHz

512KB

N/A

09/01/07

LGA775

Intel Celeron

E3200 (R0) (65W)

N/A

2.4GHz

1MB

N/A

09/01/07

LGA775

Intel Celeron

E3300 (R0) (65W)

N/A

2.5GHz

1MB

N/A

09/01/07
