ECS GeForce7050M-M DDR2 PCIe X16 SATA2

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs Geforce7050m-M Ddr2 Pcie X16 Sata2. Model: Geforce 7050M-M V.1.0A

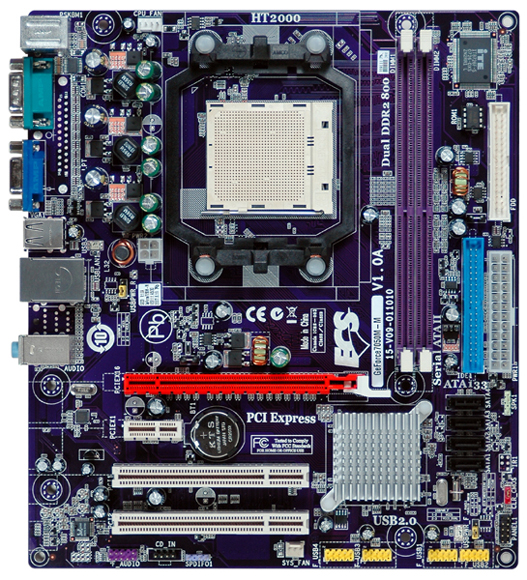

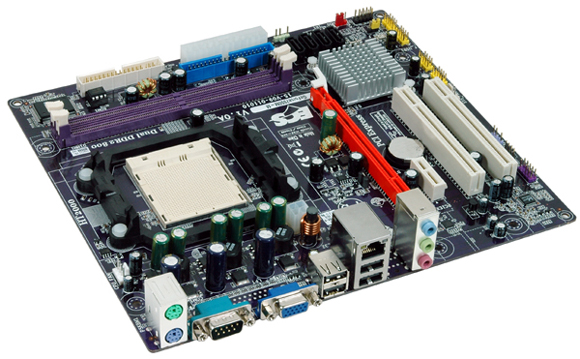

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64ECSGF7050MM
Brand Ecs - Elitegroup
Model GEFORCE 7050M-M V.1.0A
Category Amd Socket Am2+ Am3 Motherboards

Description

ECS GeForce7050M-M V1.0A Retail Box motherboard features the NVIDIA Geforce 7050PV / nForce 630a integrated chipset, which combine multiple graphics solutions and highlight NVIDIA PureVideo technology that deliver the outstanding graphics performance. It supports the latest AMD socket AM2 processors and dual-channel DDR2 memory up to DDR2 800.

Specifications:

CPU: Socket AM2 for AMD /Athlon 64 X2 Dual Core/ Athlon 64/Sempron processor
High-performance Hyper Transport CPU interface.
Support transfer rate of 2000/1600/1200/800/400 mega-transfers per second.

CHIPSET: NVIDIA Geforce7050PV/nForce 630a
NVIDIA MCP68PVNT Single Chipset

GRAPHICS: On Chip (NVIDIAGeforce7050-based with 2D/3D graphic engine)
Integrated DirectX 9 graphics processor
Share Memory: Maximum up to 256MB

MEMORY: Dual-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 16 GB
Support DDR2 800/667/533/400 DDR2 SDRAM

EXPANSION SLOT: 1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots

STORAGE: Support by Geforce7050PV/nForce 630a
2 x Ultra DMA133/100/66 devices
4 x Serial ATA2 devices
RAID0, RAID1, RAID0+1, RAID5 configuration

AUDIO: Realtek ALC662 6-channel audio(Co-lay ALC 883 optional)
Compliant with HD specification

LAN: Broadcom AC131 10/100 Lan Phy

REAR PANEL I/O: 1 x PS/2 keyboard & PS/2 mouse connectors
1 x Serial port (COM1)
1 x VGA port
1 x RJ45 LAN connector
4 x USB ports
1 x Parallel port (LPT1) (Optional)
1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS: 1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector
1 x IDE connector
4 x Serial ATA connectors
4 x USB 2.0 headers support additional 8 USB ports
1 x SPDIF out header
1 x Front panel switch/LED header
1 x Front panel audio header
CD in header
CPUFAN/SYSFAN connectors
1 x Speaker header
1 x IrDA for SIR header (optional)

SYSTEM BIOS: AMI BIOS with 4Mb Flash ROM
Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
Supports ACPI revision 1.0 specification

FORM FACTOR: Micro-ATX Size, 244mm*214mm

PRODUCT TYPE: Recertified - Retail Box!
