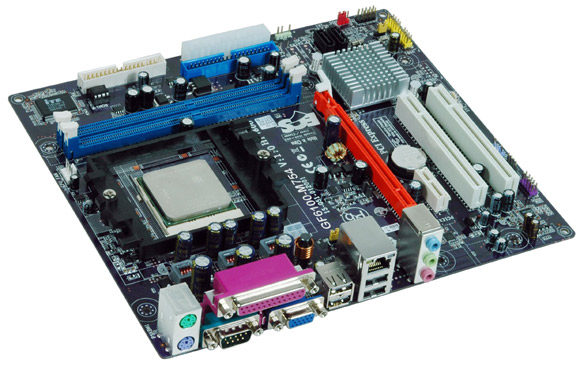

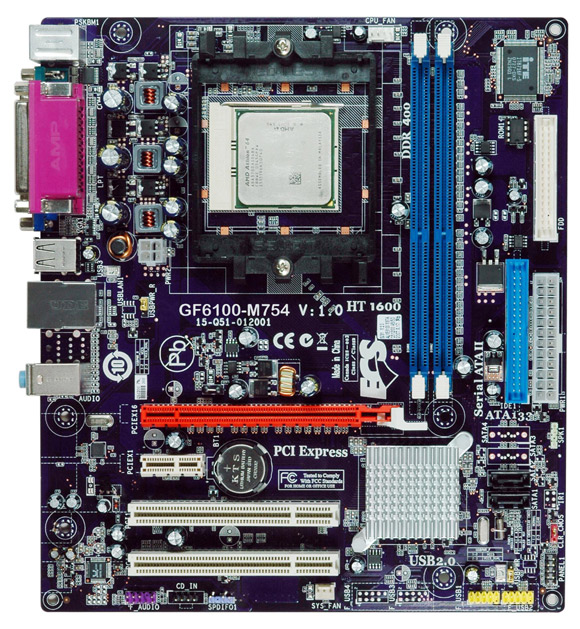

ECS GF6100-M754 AMD S.754 MOTHERBOARD

ECS GF6100-M754 Motherboard. The GF6100-M754 motherboard is the optimum choice for AMD 754 platform. It features the NVIDIA Geforce6100/nForce405 integrated chipset, which combine multiple graphics solutions and deliver the outstanding graphics performance. It supports AMD 754 socket Processors and DDR 333.

Specifications:

CPUs Supported: Socket 754 for AMD Athlon™ 64/ Sempron™ processor
High-performance Hyper Transport CPU interface.
Support transfer rate of 1600/800/400 mega-transfers per second

CHIPSET:
NVIDIA GeForce 6100/nForce 405
NVIDIA MCP61S Single Chipset

GRAPHICS:
On Chip ( NVIDIA GeForce 6100/S-based. 2D/3D graphic engine)
Integrated DirectX 9 graphics processor
Share Memory: Maximum up to 256MB

MEMORY:
Single-channel DDR memory architecture
2 x 184-pin DDR DIMM socket support up to 2 GB
Support DDR333/266/200 DDR SDRAM

EXPANSION SLOTS:
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots

STORAGE:
2 x Ultra DMA133/100/66 devices
2 x Serial ATAII 3.0Gb/s devices
RAID 0, RAID 1 configuration

AUDIO:
Realtek ALC662 6-channel audio
Compliant with HD audio specification

LAN:
Broadcom AC131 10/100 Lan Phy

REAR PANEL I/O:
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x VGA port
1 x Serial port (COM1)
1 x Parallel port (LPT)
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)


INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector
1 x IDE connector
2 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Front panel switch/LED header
1 x Front panel audio header
1 x CD in header
1 x Speaker header
1 x IrDA for SIR header (optional)
1 x SPDIF out header
CPUFAN/SYSFAN headers

SYSTEM BIOS:
Award BIOS with 4Mb Flash ROM
Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
Supports ACPI revision 1.0 specification

FORM FACTOR:
Micro-ATX Size, 244mm*214mm

PRODUCT TYPE:
Recertified
