ECS GF8200A PHENOM-2 X4 QUAD CORE MBOARD

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

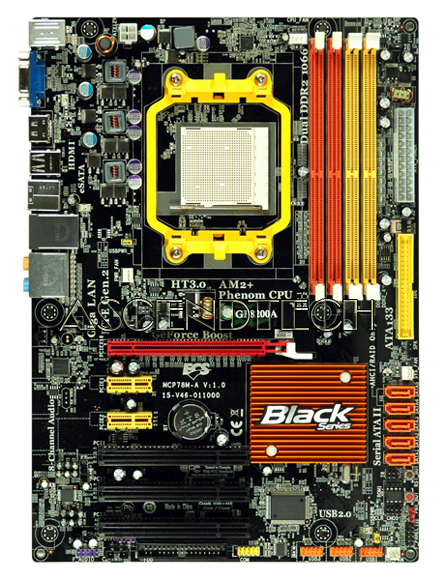

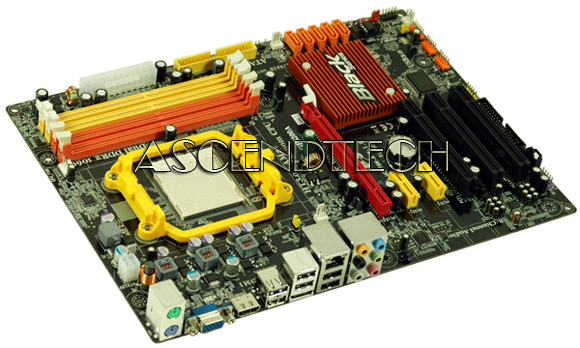

Ecs Gf8200a Phenom-2 X4 Quad Core Mboard. Model: Gf8200a (V1.0) Phenom Ii
  Enlarge
Ecs Gf8200a Phenom-2 X4 Quad Core Mboard. Model: Gf8200a (V1.0) Phenom Ii
Ecs Gf8200a Phenom-2 X4 Quad Core Mboard. Model: Gf8200a (V1.0) Phenom Ii
Ecs Gf8200a Phenom-2 X4 Quad Core Mboard. Model: Gf8200a (V1.0) Phenom Ii
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB64ECSGF8200A1
Brand Ecs - Elitegroup
Model GF8200A (V1.0) PHENOM II
Category Amd Socket Am2+ Am3 Motherboards

Description

ECS GF8200A V1.0 Socket AM2+ motherboard. The GF8200A is ECS Black Series platform based on the best combination of the new NVIDIA GeForce8200 single chipset support for the latest Phenom quad core processors up to HT 5200 MT/s with Hyper Transport 3.0 technology links and integrated DDR2 1066 memory controller on the latest AM2+ platform. The GF8200A supports the NVIDIA latest technology GeForce Boost able to work with discrete GPU to boost the graphics performance and also features the Hybrid power, DirectX 10, PCI Express2.0 and HDMI/HDCP for the extreme graphic performance computing. The ECS GF8200A is the best reliable choice for AMD AM2+ platform.



Specifications:

CPU:
AMD Phenom™ processor (Socket AM2+)
AMD Athlon™ 64 X2 Dual Core/ Athlon™ 64 / Sempron processor
High-performance HyperTransport 3.0 CPU Interface
Support transfer rate up to 5200 mega-transfers per second
Note: This board supports CPU up to 95W TDP only; you can refer to AMD website to check your CPU.

CHIPSET:
NVIDIA GeForce8200 Series
NVIDIA MCP78S Single Chipset

GRAPHICS:
On Chip ( NVIDIA GeForce8200 based with 2D/3D graphic engine)
Integrated DirectX10 graphics processor
Share Memory: Maximum up to 512MB

MEMORY:
Dual-channel DDR2 1066 memory architecture
4 x 240-pin DDR2 DIMM socket support up to 32GB
Support DDR2 1066/800/667/533/400 DDR2 SDRAM

EXPANSION SLOT:
1 x PCI Express x16 Gen2.0 slot (Support Hybrid SLI)
3 x PCI slots
2 x PCI Express X 1 Gen1.1 slot

STORAGE:
Support by NVIDIA GeForce8200
2 x Ultra DMA133/100/66 devices
5 x Serial ATA 3.0Gb/s devices
1 x eSATA
RAID0, RAID1, RAID0+1, RAID5 configuration

AUDIO:
IDT 92HD206 (Co-lay 92HD202)
Compliant with 8CH HD audio specification

LAN:
Realtek RTL8111 Gigabit Fast Ethernet Controller (Co-lay RTL8101E)

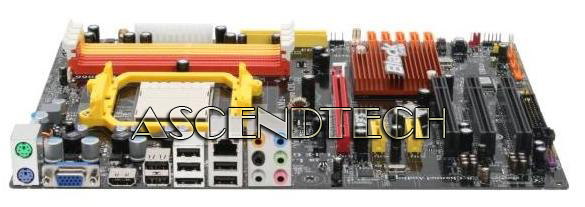

REAR PANEL I/O:
1 x PS/2 keyboard & PS/2 mouse connectors
1 x Audio port (Line-in, Line-out, Mic-in)
1 x VGA port
1 x Ethernet Port
1 x External SATA port
6 x USB ports
1 x HDMI Port

INTERNAL I/O CONNECTORS & HEADERS:
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x Front panel audio header
1 x Front panel switch/LED header
1 x IR header
3 x USB headers
1 x SPDIF out header
1 x IDE connector
1 x Speaker header
1 x 3-pin SYS_FAN connector
1 x 4-pin CPU_FAN connector
1 x FDD connector
5 x Serial ATA connectors
(SATA4 & 5 only can work under AHCI or RAID mode due to NVIDIA chipset limitation)
1 x COM1 header
1 x Clear CMOS header
1 x CD in header
1 x 3-pin PWR_FAN connector
1 x 3-pin NB_FAN connector
1 x onboard power button
1 x onboard reset button

SYSTEM BIOS:
AMI BIOS with 8Mb SPI ROM
Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
Supports ACPI revision 3.0 specification

FORM FACTOR:
ATX Size, 305mm X 220mm







CPU Support List:

SocketFamilyProcessorFrequencyL3 Cache
Socket AM3AMD Phenom™ II X6 Six-Core1035T (E0) (95W)2600 MHz512KB x6
Socket AM3AMD Phenom™ II X6 Six-Core1045T (E0) (95W)2700MHz512KB X 6
Socket AM3AMD Phenom™ II X6 Six-Core1055T2.80GHz6MB
Socket AM3AMD Phenom™ II X6 Six-Core1065T (E0) (95W)2900MHz512KB x 6
Socket AM3AMD Phenom™ II X4 Quad-Core805 (C2) (95W)2500 MHz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core810 (C2) (95W)2600 MHz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core820 (C2) (95W)2800Mhz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core8403.20GHzN/A
Socket AM3AMD Phenom™ II X4 Quad-Core840T (E0) (95W)2900MHz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core8503.30GHzN/A
Socket AM3AMD Phenom™ II X4 Quad-Core900e (C2) (65W)2400 MHz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core905e (C2) (65W)2500Mhz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core905e (C3) (65W)2500MHz512KB x 4
Socket AM3AMD Phenom™ II X4 Quad-Core910 (C2) (95W)2600 MHz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core910e (C3) (65W)2600 MHz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core925 (C2) (95W)2800 MHz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core925 (C3) (95W)2800 MHz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core945 (C2) (95W)3000 MHz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core945 (C3) (95W)3000 MHz512KB X 4
Socket AM3AMD Phenom™ II X4 Quad-Core960T (E0) (95W)3000 MHz512KB X 4
Socket AM3AMD Phenom™ II X3 Triple-Core700e (C2) (65W)2400 MHz512KB X 3
Socket AM3AMD Phenom™ II X3 Triple-Core705e (C2) (65W)2500 MHz512KB X 3
Socket AM3AMD Phenom™ II X3 Triple-Core710 (C2) (95W)2600 MHz512KB X 3
Socket AM3AMD Phenom™ II X3 Triple-Core720 (C2)(95W)2800 MHz512KB X 3
Socket AM3AMD Phenom™ II X3 Triple-CoreBlack Edition 720 (C2) (95W)2800 MHz512KB X 3
Socket AM3AMD Phenom™ II X3 Triple-CoreBlack Edition 740 (C2) (95W)3000 MHz512KB X 3
Socket AM3AMD Phenom™ II X2 Dual-Core545 (C2) (80W)3000MHz512KB X 2
Socket AM3AMD Phenom™ II X2 Dual-Core545 (C3) (80W)3000 MHz512KB X 2
Socket AM3AMD Phenom™ II X2 Dual-Core550 (C2) (80W)3100MHz512KB X 2
Socket AM3AMD Phenom™ II X2 Dual-Core550 (C3) (80W)3100MHz512KB X 2
Socket AM3AMD Phenom™ II X2 Dual-Core555 (C3) (80W)3200 MHz512KB X 2
Socket AM3AMD Phenom™ II X2 Dual-Core560 (C3) (80W)3300MHz512KB X 2
Socket AM3AMD Phenom™ II X2 Dual-Core565 (C3) (80W)3400MHz512KB x 2
Socket AM3AMD Phenom™ II X2 Dual-Core570 (C3) (80W)3500MHz512KB x 2
Socket AM2+AMD Phenom Quad-Core9100e (B2) (65W)1800 MHz512KBx4
Socket AM2+AMD Phenom Quad-Core9500 (B2) (95W)2200 MHz512KB x4
Socket AM2+AMD Phenom Quad-Core9550 (B3) (95W)2200MHz512KB x4
Socket AM2+AMD Phenom Quad-Core9600 (B2) (95W)2300 MHz512KB x4
Socket AM2+AMD Phenom Quad-Core9650 (B3) (95W)2300 MHz512KBx4
Socket AM2+AMD Phenom Quad-Core9750 (B3) (95W)2400 MHz512KBx4
Socket AM2+AMD Phenom Quad-Core9850 (B3) (95W)2500 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core600e (C2) (45W)2200 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core605e (C2) (45W)2300 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core605e(C3)(45W)2300 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core615e (C3) (45W)2500 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core620 (C2) (95W)2600 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core630 (C2) (95W)2800 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core630 (C3) (95W)2800 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core635 (C2) (95W)2900 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core635 (C3) (95W)2900 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core640 (C3) (95W)3000 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core645 (C3) (95W)3100 MHz512KB X 4
Socket AM3AMD Athlon™ II X4 Quad-Core655 (C3) (95W)3300MHz512KB x 4
Socket AM3AMD Athlon™ II X3 Triple-Core400e (C2) (45W)2200 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core405e (C2) (45W)2300 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core405e(C3)(45W)2300 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core420e (C3) (45W)2600 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core425 (C2) (95W)2700Mhz512KB X 4
Socket AM3AMD Athlon™ II X3 Triple-Core435 (C2) (95W)2900 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core435 (C3) (95W)2900 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core440 (C2) (95W)3000 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core440 (C3) (95W)3000 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core445 (C3) (95W)3100 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core450 (C3) (95W)3200 MHz512KB X 3
Socket AM3AMD Athlon™ II X3 Triple-Core460 (C3) (95W)3400MHz512KB x 3
Socket AM3AMD Athlon™ II X2 Dual-Core2152.70GHzN/A
Socket AM3AMD Athlon™ II X2 Dual-Core215 (C2) (65W)2700 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core2202.80GHzN/A
Socket AM3AMD Athlon™ II X2 Dual-Core2252.90GHzN/A
Socket AM3AMD Athlon™ II X2 Dual-Core225 (C3) (65W)2900 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core235e (C2) (45W)2800 Mhz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core240 (C2) (65W)2800 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core240e (C2) (45W)2800 Mhz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core2452.90GHzN/A
Socket AM3AMD Athlon™ II X2 Dual-Core245 (C2) (65W)2900 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core245 (C3) (65W)2900 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core2503.00GHzN/A
Socket AM3AMD Athlon™ II X2 Dual-Core250 (C2) (65W)3000 MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core250 (C3) (65W)3000 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core2553.10GHzN/A
Socket AM3AMD Athlon™ II X2 Dual-Core255 (C2) (65W)3100MHz1MB X 2
Socket AM3AMD Athlon™ II X2 Dual-Core255 (C3) (65W)3100 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core2603.20GHzN/A
Socket AM3AMD Athlon™ II X2 Dual-Core260 (C3) (65W)3200 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core260u (C3) (25W)1800 MHz1MB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core260u (C3) (25W)1800 MHz512KB x 2
Socket AM3AMD Athlon™ II X2 Dual-Core2653.30GHzN/A
Socket AM3AMD Athlon™ II X2 Dual-Core2703.40GHzN/A
Socket AM3AMD Athlon™ II X2 Dual-Core2753.50GHzN/A
Socket AM2AMD Athlon™ 64 X2 Dual-Core3600+ (F2)(65W)2000MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core3600+ (G1)(65W)1900MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core3800+ (F2)(35W)2000MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core3800+ (F2)(65W)2000 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core3800+ (F2)(89W)2000MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core3800+ (F3)(65W)2000 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4000+ (F2)(65W)2000MHz1MBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4000+ (F2)(89W)2000 MHz1MBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4000+ (G1)(65W)2100MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4050e (G2)(45W)2100MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4050e+ (G2) (45W)2100MHz512KB x2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4200+ (F2)(65W)2200MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4200+ (F2)(89W)2200 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4200+ (F3)(35W)2200 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4400+ (F2)(65W)2200 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4400+ (F2)(89W)2200MHz1MBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4400+ (G1)(65W)2300MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4400+ (G2)(65W)2300 MHz512KB x 2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4450e (G2)(45W)2300MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4450e+ (G2) (45W)2300MHz512KB x2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4600+ (F2)(65W)2400 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4600+ (F2)(89W)2400MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4600+ (F3)(65W)2400 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4600+ (G2)(45W)2400 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4800+ (F2)(65W)2400MHz1MBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4800+ (F2)(89W)2400 MHz1MBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4800+ (G1)(65W)2500MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4850e (G2)(45W)2500MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core4850e+ (G2) (45W)2500MHz512KB x2
Socket AM2+AMD Athlon™ 64 X2 Dual-Core5000+ (C2) (65W)2200 MHz512KB X 2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5000+ (F2)(89W)2600 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5000+ (F3)(65W)2600 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5000+ (F3)(89W)2600 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5000+ (G1)(65W)2600 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5000+ (G2) (65W)2400MHz512KBx2
Socket AM2+AMD Athlon™ 64 X2 Dual-Core5050e2.50GHzN/A
Socket AM2AMD Athlon™ 64 X2 Dual-Core5200+ (F2)(89W)2600 MHz1MBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5200+ (F3)(65W)2600 MHz1MBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5200+ (F3)(89W)2600 MHz1MBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5200+ (G1)(65W)2700 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5400+ (F3)(89W)2800MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5400+ (G1)(65W)2800MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5400+ (G2)(65W)2800MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5600+ (G2)(65W)2900MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5600+ (G2)(89W)2800 MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core5800+ (G2)(89W)3000MHz512KBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core6000+ (F2)(89W)3100 MHz1MBx2
Socket AM2AMD Athlon™ 64 X2 Dual-Core6000+ (F3)(89W)3000 MHz1MBx2
Socket AM2+AMD Athlon™ 64 X2 Dual-Core6500 (B3) (95W)2300 MHz1MBX2
Socket AM2+AMD Athlon™ 64 X2 Dual-Core7450 (B3)(95W)2400 MHz512KB X 2
Socket AM2+AMD Athlon™ 64 X2 Dual-Core7550 (B3) (95W)2500Mhz512KB X 2
Socket AM2+AMD Athlon™ 64 X2 Dual-Core7750 (B3)(95W)2700 MHz512KB X 2
Socket AM2+AMD Athlon™ 64 X2 Dual-Core7850 (B3) (95W)2800Mhz512KB X 2
Socket AM2+AMD Phenom Triple-Core8250e (B3) (65W)1900 MHz512KB X 3
Socket AM2+AMD Phenom Triple-Core8400 (B2) (95W)2100MHz512KB x3
Socket AM2+AMD Phenom Triple-Core8450 (B3) (95W)2100MHz512KB x3
Socket AM2+AMD Phenom Triple-Core8600 (B2) (95W)2300MHz512KB x3
Socket AM2+AMD Phenom Triple-Core8650 (B3) (95W)2300MHZ512KB x3
Socket AM2+AMD Phenom Triple-Core8750 (B3) (95W)2400MHz512KB x3
Socket AM2+AMD Phenom Triple-Core8850 (B3) (95W)2500 MHz512KB X 3
Socket AM2AMD Athlon™ 643000+ (F2)(62W)1800MHz512KB
Socket AM2AMD Athlon™ 643200+ (F2)(62W)2000MHz512KB
Socket AM2AMD Athlon™ 643200+ (G1)(45W)2000 MHz512KB
Socket AM2AMD Athlon™ 643500+ (F2)(35W)2200MHz512KB
Socket AM2AMD Athlon™ 643500+ (F2)(62W)2200 MHz512KB
Socket AM2AMD Athlon™ 643500+ (F3)(62W)2200MHz512KB
Socket AM2AMD Athlon™ 643500+ (G1)(45W)2200MHz512KB
Socket AM2AMD Athlon™ 643800+ (F2)(62W)2400 MHz512KB
Socket AM2AMD Athlon™ 643800+ (F3)(62W)2400MHz512KB
Socket AM2AMD Athlon™ 643800+ (G1)(45W)2400 MHz512KB
Socket AM2AMD Athlon™ 644000+ (F3)(62W)2600MHz512KB
Socket AM2AMD Athlon™ 64LE1600 (F3)(45W)2200MHz512KBX2
Socket AM2AMD Athlon™ 64LE1600 (F3)(45W)2200MHz512MB
Socket AM2AMD Athlon™ 64LE1620 (F3)(45W)2400MHz1MB
Socket AM2AMD Athlon™ 64LE1620 (F3)(45W)2400MHz512KBX2
Socket AM2AMD Athlon™ 64LE1640 (F3)(45W)2600MHz1MB
Socket AM2AMD Athlon™ 64LE1640 (F3)(45W)2600MHz512KBX2
Socket AM2AMD Athlon™ 64LE1640 (G2)(45W)2700MHz512KB
Socket AM2AMD Athlon™ 64LE1660 (G2)(45W)2800MHz512KB
Socket AM2AMD Sempron™ X2 Dual-Core2100 (G1) (65W)1800 MHz256KBx2
Socket AM2AMD Sempron™ X2 Dual-Core2100 (G2) (65W)1800 MHz256KBx2
Socket AM2AMD Sempron™ X2 Dual-Core2200 (G2) (65W)2000MHz256KBx2
Socket AM2AMD Sempron™ X2 Dual-Core2200 (G2) (65W)2000MHz512KB
Socket AM2AMD Sempron™ X2 Dual-Core2300 (G2) (65W)2200MHz256KB x2
Socket AM3AMD Sempron™140 (C2) (45W)2700 Mhz1MB
Socket AM3AMD Sempron™150 (C3) (45W)2900MHz1MB
Socket AM2AMD Sempron™2800+ (F2)(62W)1600 MHz128KB
Socket AM2AMD Sempron™3000+ (F2)(35W)1600MHz256KB
Socket AM2AMD Sempron™3000+ (F2)(62W)1600 MHz256KB
Socket AM2AMD Sempron™3200+ (F2)(35W)1800 MHz128KB
Socket AM2AMD Sempron™3200+ (F2)(62W)1800 MHz128KB
Socket AM2AMD Sempron™3400+ (F2)(35W)1800 MHz256KB
Socket AM2AMD Sempron™3400+ (F2)(62W)1800 MHz256KB
Socket AM2AMD Sempron™3500+ (F2)(35W)2000 MHz128KB
Socket AM2AMD Sempron™3500+ (F2)(62W)2000 MHz128KB
Socket AM2AMD Sempron™3600+ (F2)(62W)2000 MHz256KB
Socket AM2AMD Sempron™3800+(F2)(62W)2200 MHz256KB
Socket AM2AMD Sempron™LE-1100 (G1)(45W)1900 MHz256KB
Socket AM2AMD Sempron™LE-1150 (G1)(45W)2000 MHz256KB
Socket AM2AMD Sempron™LE-1200 (G1)(45W)2100 MHz512KB
Socket AM2AMD Sempron™LE-1200 (G2) (45W)2100 MHz512KB
Socket AM2AMD Sempron™LE-1250 (G2)(45W)2200 MHz512KB
Socket AM2AMD Sempron™LE-1300 (G2)(45W)2300 MHz512KB
