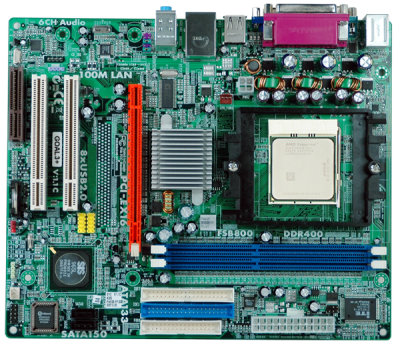

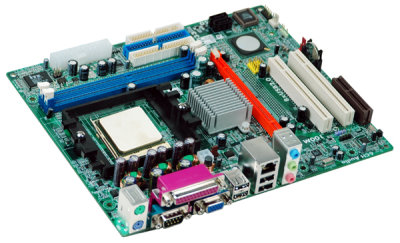

ECS GOAL3+ 1.1C WITH AMD SEMPRON 3000+

ECS Goal3+ SIS 761 Chipset Micro ATX Motherboard With AMD Sempron 300+ Processor (CPU) Combo. Assembled & Tested! GOAL3+ supports AMD Athlon64 / Sempron, K8 CPUs, up to 800MHz FSB, DDR333, two Serial ATA and 8 USB 2.0 ports. With embedded Ultra256 3D Graphic engine, 64M share memory ,one PCI ExpressX16 slot, all these advance supports, we believe your computer can run with best performance and bring you the greatest value and enjoyment.

Specifications:

CPU: Socket 754 for AMD Athlon64(K8)/Sempron processor
FSB: 800 MHz
Chipset: SiS 761GX/965L
VGA: Embedded Mirage Graphics with 128MB share memory
Memory: 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR333/266/200)
Maximum: 2GB
Expansion Slots: 1 x PCI Express x 16 slots
2 x PCI slots
1 x CNR slot
LAN: Realtek RTL8201CL 10/100Mbps Fast Ethernet PHY
Audio: AD 1888 6-channel audio Codec
Compliant with AC'97 2.3 specification
IDE: 2 x UltraDMA 133/100/66
Back Panel I/O Ports: 1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel Port
1 x Serial Port
1 x VGA port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)
Internal I/O Connectors & Headers: 24-pin ATX Power Supply connector
4-pin ATX 12V power supply connector
2 x USB 2.0 header support additional 4 USB2.0 ports
2 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
CPU / SYS FAN headers
1 x IrDA for SIR header
1 x Speaker header
1 x CD in header
1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
1 x SPDIF out header
System BIOS: AMI 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification
Form Factor: Micro ATX Form Factor, 244x203mm
