ECS H110I-C4P V1.0 LGA1151 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs H110i-C4p V1.0 Lga1151 Motherboard
  Enlarge
Ecs H110i-C4p V1.0 Lga1151 Motherboard
Ecs H110i-C4p V1.0 Lga1151 Motherboard
Ecs H110i-C4p V1.0 Lga1151 Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBRDH110IC4PV10
Brand Ecs - Elitegroup
Model H110I-C4P V1.0
Category Intel Lga1151 Motherboard
Condition New Open Box

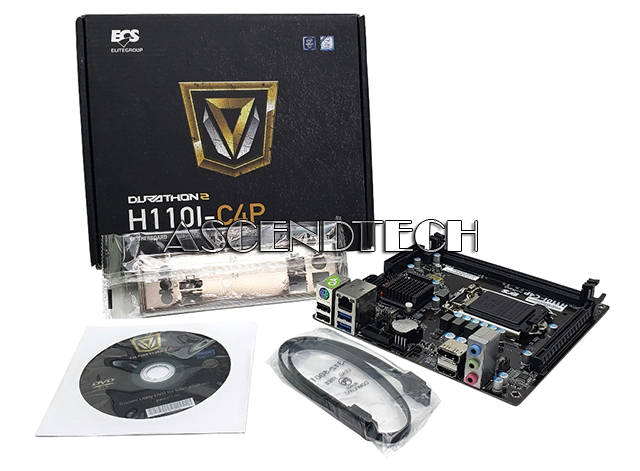

Condition Description Please Note Motherboard comes with I/O Panel, SATA Cables and System Utility DVD

Description

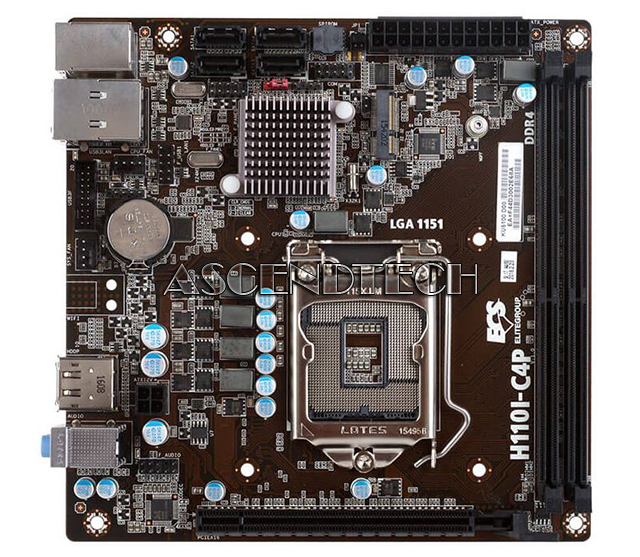

ECS H110I-C4P Intel H110 Express Chipset LGA 1151 Socket DDR4 SATA3 6GB/S Mini-ITX Motherboard.

ECS Model Number: H110I-C4P V1.0
Includes: I/O Panel, SATA Cables and System Utility DVD.







Features:

Windows 10 Workable support
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
Intel 14nm 6th generation Multi-Core CPU support
Supports DirectX 12 to enhance graphical performance
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
ECS Intelligent EZ Utility : eBLU, eDLU, eSF






CPUSupports 7th gen Intel Core family/ Pentium / Celeron series processors for LGA 1151 socket
Supports 6th gen Intel Core family/ Pentium / Celeron series processors for LGA 1151 socket
100% Solid capacitor design
Please refer to CPU support list for details
CHIPSETIntel H110 Express Chipset
GRAPHICSSupports DirectX 12
MEMORYDual-channel DDR4 Memory architecture
Supports DDR4 2133 non-ECC, Un-buffered SDRAM Memory
2 X 288-pin DDR4 DIMM socket
Support up to 32 GB*
Note:Please refer to the latest Memory support list for details
EXPANSION SLOT1 X PCI Express X16 Gen 3.0 slot(s)
1 X M.2 slot for WiFi/BT PCIe Gen 2
STORAGESupport by H110 Express Chipset
4 X Serial ATAIII 6Gb/s
Located in SATA1, SATA2, SATA3, SATA4 Port
AUDIO6-Channel HD audio CODEC
Realtek ALC662 6-channel High Definition audio CODEC
Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D, A3D, I3DL2
LANRealtek RTL8111H Gigabit Fast Ethernet Controller
Wake-On-LAN
USBSupport by H110 Express Chipset
4 X USB3.1 Gen1 port(s) up to 5Gb/s
Back Panel 2 port(s)
Onboard 2 port(s)
5 X USB2.0 port(s) Up to 480 Mb/s
Back Panel 2 port(s)
Onboard 3 port(s)

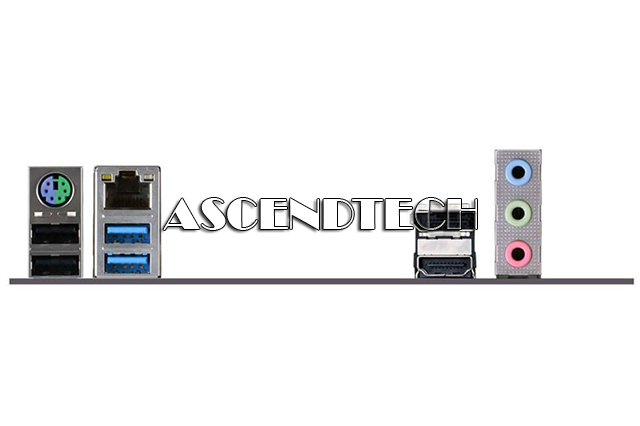

REAR PANEL I/O1 X PS/2 combo connector
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X Display port
2 X USB3.1 Gen1 port(s)
2 X USB2.0 port(s)
CONNECTORS & HEADERS1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector with smart fan
1 X 4-pin SYS_FAN connector with smart fan
1 X Front Panel switch/LED header
1 X Front panel audio header
1 X Speaker header
1 X USB 3.1 Gen1 header
Support additional 2 USB ports
2 X USB 2.0 header
Support additional 3 USB ports
4 X SATA III 6Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)
Support additional 1 Serial Port (COM)
Support 5V/12V Voltage selected by jumper
SYSTEM BIOSAMI BIOS with 64 MB SPI Flash ROM
ACPI & DMI
Dual Display
Support ECS EZ BIOS
Support GUI UEFI BIOS
Multi-Language BIOS
FORM FACTORMini ITX Form Factor
170mm x 170mm








* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification

SocketFamilyProcessorWattageFrequencyCacheSteppingSince BIOS
LGA1151Intel Core i7670065W3.40GHz8MBR012/12/2016
LGA1151Intel Core i76700K91W4.00GHz8MBR012/12/2016
LGA1151Intel Core i76700T35W2.80GHz8MBR012/12/2016
LGA1151Intel Core i7770065W3.60GHz8MB012/12/2016
LGA1151Intel Core i77700K91W4.20GHz8MB012/12/2016
LGA1151Intel Core i77700T35W2.90GHz8MB012/12/2016
LGA1151Intel Core i5640065W2.70GHz6MBR012/12/2016
LGA1151Intel Core i56400T35W2.20GHz6MBR012/12/2016
LGA1151Intel Core i5650065W3.20GHz6MBR012/12/2016
LGA1151Intel Core i56500T35W2.50GHz6MBR012/12/2016
LGA1151Intel Core i5660065W3.30GHz6MBR012/12/2016
LGA1151Intel Core i56600K91W3.50GHz6MBR012/12/2016
LGA1151Intel Core i56600T35W2.70GHz6MBR012/12/2016
LGA1151Intel Core i5740065W3.00GHz6MB012/12/2016
LGA1151Intel Core i57400T35W2.40GHz6MB012/12/2016
LGA1151Intel Core i5750065W3.4GHZ6MB012/12/2016
LGA1151Intel Core i57500T35W2.70GHz6MB012/12/2016
LGA1151Intel Core i5760065W3.50GHz6MB012/12/2016
LGA1151Intel Core i57600K91W3.8GHz6MB012/12/2016
LGA1151Intel Core i57600T35W2.80GHz6MB012/12/2016
LGA1151Intel Core i3610047W3.70GHz3MBS012/12/2016
LGA1151Intel Core i36100T35W3.20GHz3MBS012/12/2016
LGA1151Intel Core i3630047W3.80GHz4MBS012/12/2016
LGA1151Intel Core i3632047W3.90GHz4MBS012/12/2016
LGA1151Intel Core i3710051W3.9GHz3MS012/12/2016
LGA1151Intel Core i3730051W4.0GHz4MS012/12/2016
LGA1151Intel Core i3732051W4.1GHz4MS012/12/2016
LGA1151Intel PentiumG390047W2.80GHz2MBS012/12/2016
LGA1151Intel PentiumG3900T35W2.60GHz2MBS012/12/2016
LGA1151Intel PentiumG392047W2.90GHz2MBS012/12/2016
LGA1151Intel PentiumG393051W2.9GHz2MS012/12/2016
LGA1151Intel PentiumG395051W3.0GHz2MS012/12/2016
LGA1151Intel PentiumG440047W3.30GHz3MBS012/12/2016
LGA1151Intel PentiumG4400T35W2.90GHz3MBS012/12/2016
LGA1151Intel PentiumG450047W3.50GHz3MBS012/12/2016
LGA1151Intel PentiumG4500T35W3.00GHz3MBS012/12/2016
LGA1151Intel PentiumG452047W3.60GHz3MBS012/12/2016
LGA1151Intel PentiumG456054W3.5GHz3MB012/12/2016
LGA1151Intel PentiumG460051W3.6GHz3MS012/12/2016
LGA1151Intel PentiumG462051W3.7GHz3MS012/12/2016
