ECS H310CH5-M2 Micro ATX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs H310ch5-M2 Micro Atx Motherboard
  Enlarge
Ecs H310ch5-M2 Micro Atx Motherboard
Ecs H310ch5-M2 Micro Atx Motherboard
Ecs H310ch5-M2 Micro Atx Motherboard
Ecs H310ch5-M2 Micro Atx Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDSKH310CH5M2N
Brand Ecs - Elitegroup
Model H310CH5-M2
Category Intel Lga1151 Motherboard
Condition Brand New

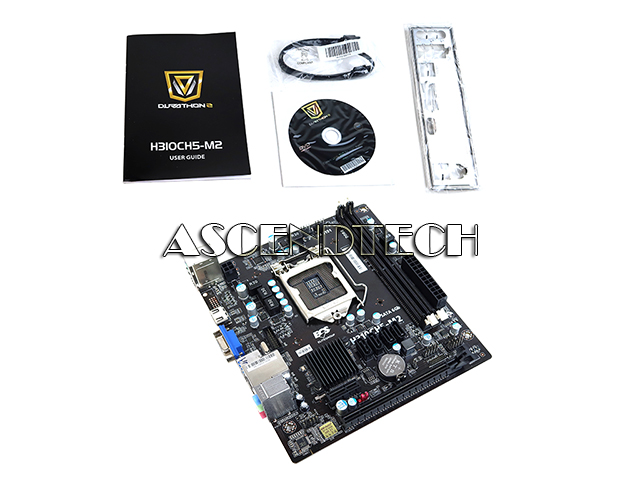

Condition Description Please note, this item comes with I/O Shield Backplate, SATA Cable, System Utility DVD, and User Guide.

Description

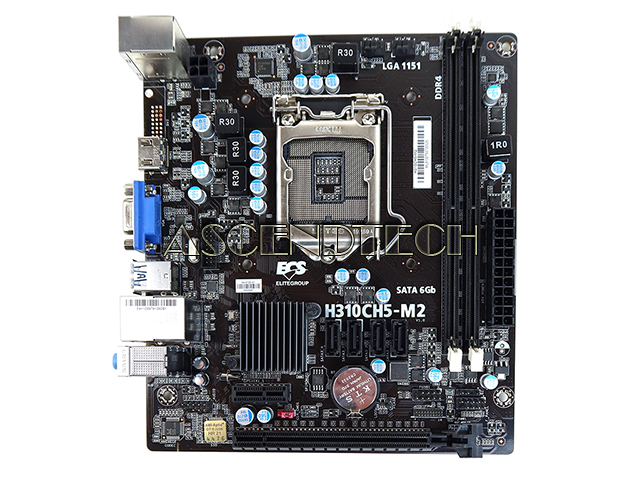

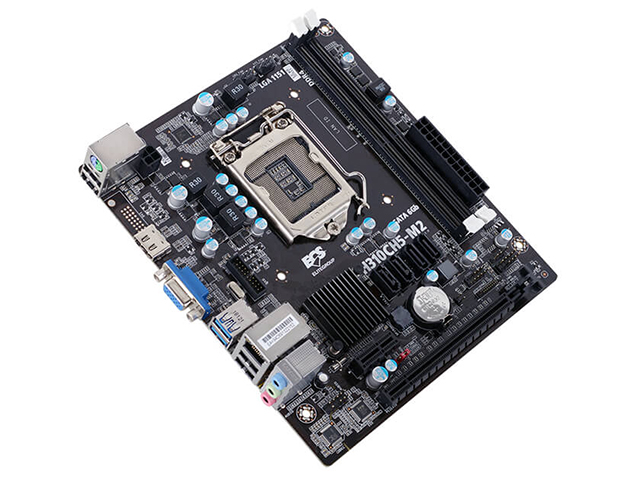

ECS Elitegroup H310CH5-M2 Intel Chipset H310 Socket LGA1151 DDR4 D-Sub HDMI USB SATA 6Gb/s Micro ATX Desktop Motherboard.

Chipset: Intel H310
Socket: Intel LGA1151
Max Supported Memory: 32GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRAM
Pins: 288
Storage Interface: 4x SATA III 6Gb/s
Network/Communications: Realtek 8111H Gigabit Fast Ethernet Controller
Audio: Realtek ALC662 6-channel HD
Connectors: 1x 24-pin ATX Power Supply Connector; 1x 4-pin 12V Power Connector; 1x 4-pin CPU FAN Connector with Smart Fan; 1x 4-pin SYS FAN Connector with Smart Fan; 1x Front Panel Switch/LED Header; 1x Front Panel Audio Header; 1x Onboard Buzzer; 1x USB 3.2 Gen 1x1 Header (Support Additional 2 USB Ports); 1x USB 2.0 Header (Support Additional 2 USB Ports); 1x CLR CMOS Header; 1x TPM Header; 1x Chassis Intrusion Header

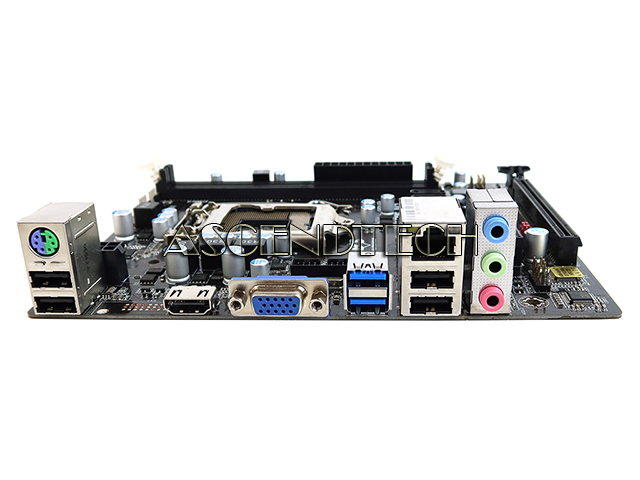

Input/Output Ports: 1x PS/2 Combo Connector; 3x Audio port (Line Out, Line In, Mic In); 1x LAN RJ-45; 1x D-Sub (VGA); 1x HDMI; 2x USB 3.2; 4x USB 2.0
Expansion Slots: 1x PCI Express X16 Gen 3.0; 1x PCI Express X1 Gen 2.0
Width: 170mm
Length: 190mm
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit

Additional Features:

- Windows 10 Workable support
- 3+1 Phase Power Design
- ECS Durathon Technology ensure the stability, reliability and performance of system.
- ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
- Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
- Supports DirectX 12 to enhance graphical performance
- Supports HDMI 1.4a Technology (resolution up to 1920X1200) and HDCP function
- ECS Intelligent EZ Utility : eDLU, eSF

Additional Specifications:

System Bios:

- AMI BIOS with 64 MB SPI Flash ROM
- ACPI & DMI
- F7 hot key for boot up devices option
- Dual Display
- Support GUI UEFI BIOS
- Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
- Multi-Language BIOS
- Audio, LAN, can be disabled in BIOS
- Supports PgUp clear CMOS Hotkey

Certifications:

- CE/FCC Certification
- WHCK Certification

Supported processors:

SocketFamilyProcessorWattageFrequencyCache
LGA1151Intel Core i9990065W3.10GHz16MB
LGA1151Intel Core i99900K95W3.60GHz16MB
LGA1151Intel Core i99900K95W3.60GHz16MB
LGA1151Intel Core i99900KF95W3.60GHz16MB
LGA1151Intel Core i99900KF95W3.60GHz16MB
LGA1151Intel Core i7870065W3.20GHz12MB
LGA1151Intel Core i78700K95W3.70GHz12MB
LGA1151Intel Core i79700F65W3.00GHz12MB
LGA1151Intel Core i79700K95W3.60GHz12MB
LGA1151Intel Core i79700K95W3.60GHz12MB
LGA1151Intel Core i79700KF95W3.60GHz12MB
LGA1151Intel Core i79700KF95W3.60GHz12MB
LGA1151Intel Core i5840065W2.80GHz9MB
LGA1151Intel Core i58400T35W1.70GHz9MB
LGA1151Intel Core i58500T35W2.10GHz9MB
LGA1151Intel Core i5860065W3.10GHz9MB
LGA1151Intel Core i58600K95W3.60GHz9MB
LGA1151Intel Core i58600T35W2.30GHz9MB
LGA1151Intel Core i5940065W2.90GHz9MB
LGA1151Intel Core i5940065W2.90GHz9MB
LGA1151Intel Core i5940065W2.90GHz9MB
LGA1151Intel Core i59400F65W2.90GHz9MB
LGA1151Intel Core i59400F65W2.90GHz9MB
LGA1151Intel Core i59400T35W1.80GHz9MB
LGA1151Intel Core i59600K95W3.70GHz9MB
LGA1151Intel Core i59600K95W3.70GHz9MB
LGA1151Intel Core i59600K95W3.70GHz9MB
LGA1151Intel Core i59600KF95W3.70GHz9MB
LGA1151Intel Core i59600KF95W3.70GHz9MB
LGA1151Intel Core i3810065W3.60GHz6MB
LGA1151Intel Core i3810065W3.60GHz6MB
LGA1151Intel Core i38100T35W3.10GHz6MB
LGA1151Intel Core i3830062W3.70GHz8MB
LGA1151Intel Core i38300T35W3.20GHz8MB
LGA1151Intel Pentium GoldG540054W3.70GHz4MB
LGA1151Intel Pentium GoldG540054W3.70GHz4MB
LGA1151Intel Pentium GoldG5400T35W3.10GHz4MB
LGA1151Intel Pentium GoldG5400T35W3.10GHz4MB
LGA1151Intel Pentium GoldG550054W3.80GHz4MB
LGA1151Intel Pentium GoldG5500T35W3.20GHz4MB
LGA1151Intel Pentium GoldG560054W3.90GHz4MB
LGA1151Intel CeleronG490054W3.10GHz2MB
LGA1151Intel CeleronG4900T35W2.90GHz2MB
LGA1151Intel CeleronG492054W3.20GHz2MB
