ECS H55H-I V1.0A Mini ITX Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

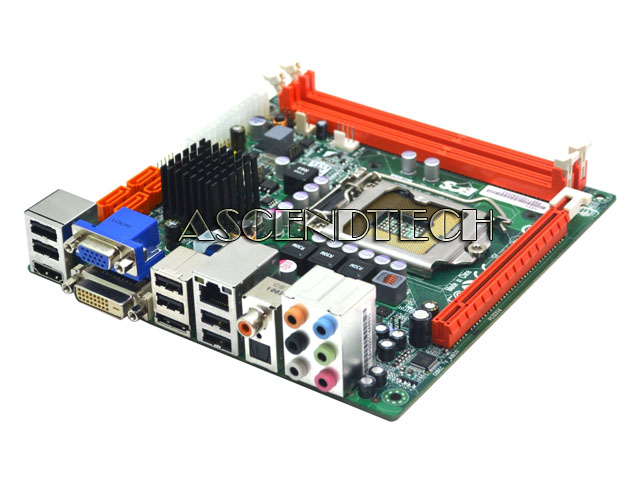

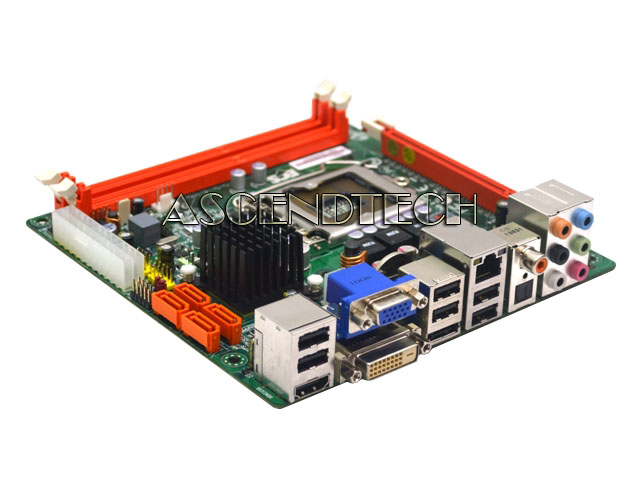

Ecs H55h-I V1.0A Mini Itx Motherboard
  Enlarge
Ecs H55h-I V1.0A Mini Itx Motherboard
Ecs H55h-I V1.0A Mini Itx Motherboard
Ecs H55h-I V1.0A Mini Itx Motherboard
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSH55HIV10A1
Brand Ecs - Elitegroup
Model H55H-I V1.0A
Category Intel Lga1156 Motherboards

Description

ECS H55H-I V1.0A Intel H55 Socket LGA1156 DDR3 Mini ITX Motherboard.





Features:

Featuress LGA1156 socket for Intel Core i5/Core i3 Clarkdale new generation desktop processors in a Mini-ITX 170x170 mm form factor


H55H-I is the ECS Mini-ITX form factor motherboard, featuring onboard HDMI/DVI connectors for High
Definition display and S/PDIF optical and coaxial ports for high quality digital sound output.
Perfect for setting up your personal Home Theater PC (HTPC) to enjoy Blu-ray playback in Full HD 1080P multimedia home entertainment.




Specifications:


CPU

º LGA1156 socket for latest new Core i5/Core i3 Clarkdale high-end desktop processors
º DMI 2.5GT/s

CHIPSET

º Intel® H55 Express Chipset

MEMORY

º Dual-channel DDR3 memory architecture
º 2 x 240-pin DDR3 DIMM socket support up to 8 GB
º Support DDR3 1333/1066 SDRAM

EXPANSION SLOT

º 1 x PCI Express x16 Gen2.0 slot

STORAGE

º Support by Intel® H55
    • 4 x Serial ATA 3.0Gb/s devices
    • 1 x eSATA 3Gb/s port

AUDIO

º Realtek ALC892 8-Ch High Definition audio CODEC
º Compliant with HD audio specification

LAN

º Realtek RTL8111DL Gigabit Lan (Co-lay RTL8103EL)

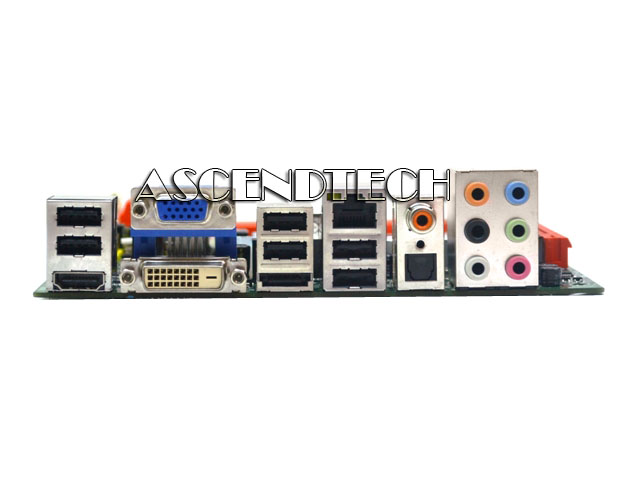

REAR PANEL I/O

º 1 x D-sub(VGA)
º 1 x HDMI Port
º 1 x DVI Port
º 1 x RJ45 LAN connector
º 1 x Audio port (Line-in, Front Out, Mic_in Rear, Center & Woofer, Back Surrond, Side Surround)
º 2 x Digital SPDIF (Optical & Coaxial) out
º 1 x eSATA 3Gb/s port
º 6 x USB 2.0 ports

INTERNAL I/O CONNECTORS & HEADERS

º 1 x 24-pin ATX Power Supply connector
º 1 x 4-pin 12V Connector
º 1 x 4-pin CPU_FAN connector
º 1 x 3-pin SYS_FAN connector
º 1 x Speaker header
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 4 x SATA 3Gb/s connectors
º 1 x SPDIF out header
º 2 x USB 2.0 headers support additional 4 USB 2.0 Ports
º 1 x Clear CMOS header
º 1 x Chassis intrusion header

SYSTEM BIOS

º AMI BIOS with 64Mb SPI Flash ROM
º Supports Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Audio, LAN, can be disabled in BIOS
º F11 hot key for boot up devices option
º Support over-clocking
º ECS eJIFFY utility

FORM FACTOR

º Mini ITX 170x170mm




CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.



Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA1156

Intel Core™ i7

860s (B1) (82W)

N/A

2.53 GHz

8MB

N/A

09/14/2010

LGA1156

Intel Core™ i7

870s (B1) (82W)

N/A

2.66 GHz

8MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

650 (C2) (73W)

N/A

3.20 GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

650 (K0) (73W)

N/A

3.20GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

655K(K0)(73W)

N/A

3.20GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

660 (C2) (73W)

N/A

3.33 GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

660 (K0) (73W)

N/A

3.33GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

661 (C2) (87W)

N/A

3.33 GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

661 (K0) (87W)

N/A

3.33GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

670 (C2) (73W)

N/A

3.46 GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

670 (K0) (73W)

N/A

3.46GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

680(K0)(73W)

N/A

3.60GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i5

750s (B1) (82W)

N/A

2.40 GHz

8MB

N/A

09/14/2010

LGA1156

Intel Core™ i3

530 (C2) (73W)

N/A

2.93 GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i3

530 (K0) (73W)

N/A

2.93GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i3

540 (C2) (73W)

N/A

3.06 GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i3

540 (K0) (73W)

N/A

3.06GHz

4MB

N/A

09/14/2010

LGA1156

Intel Core™ i3

550(K0)(73W)

N/A

3.20GHz

4MB

N/A

09/14/2010

LGA1156

Intel Pentium

G6950 (C2) (73W)

N/A

2.80 GHz

3MB

N/A

09/14/2010

LGA1156

Intel Pentium

G6950 (K0) (73W)

N/A

2.80GHz

3MB

N/A

09/14/2010
