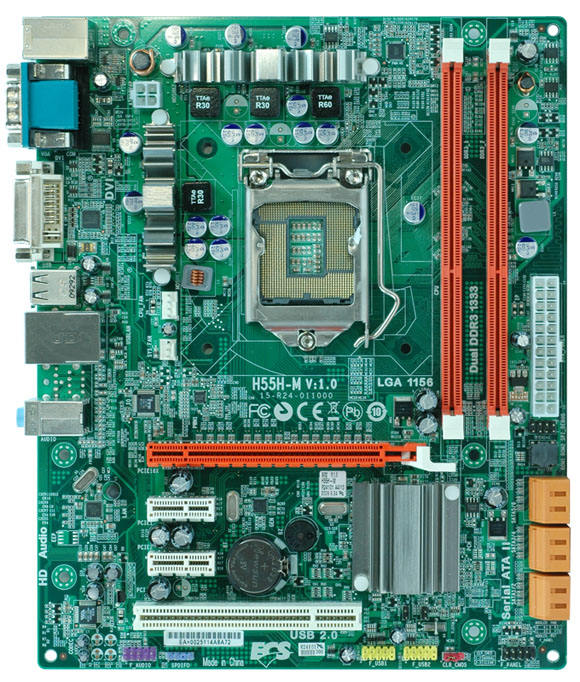

ECS H55H-M S.1156 INTEL H55 DDR3 PCI-e

ECS H55H-M V.1.0 Socket 1156 PCI-Express DDR3 SATA2 Motherboard With Video Audio & Lan! For Intel Core i3 i5 & i7 Processors.

Specifications:

• CPU: Socket 1156 Support Intel Core i3/ i5/ i7 processors, FSB Upto 2.5 GT/s
• Chipset: Intel H55 Express Chipset
• Memory: 2x 240pin DDR3-1333/1066 DIMMs, Dual Channel, Max Capacity upto 4GB
• Slots: 1x PCI-Express x16 Slots; 2x PCI-Express x1 Slots; 1x PCI Slots
• SATA: 6x SATA2 Ports
• Audio: VIA VT1705 6-channel High Definition Audio CODEC
• Video: Integrated Graphic Controller
• LAN: Integrated Gigabit Ethernet
• Ports: 10x USB 2.0 Ports(6 Rear, 4 by header); 1x PS/2 Ports; 1x VGA Port; 1x DVI Port; 1x Serial Port; 1x RJ45 LAN Port; Audio I/O Jacks
• Power Connector: 1x 24pin Main Power connector, 1x 4pin CPU Power connector
• Form Factor: Micro ATX, 24.4 x 20.0 cm
• Download Drivers Here

Detailed Specifications:

eOC - Easy Over Clock Utility Easy Over Clock Utility is a easy and simply overclocking tools that provides user-friendly windows operation interface for novices and overclockers, with clicking on your mouse only you can get much higher performance of CPU quickly. It is available for download and updated online to get the latest version. Combine with ECS MIB III technology to challenge undiscovered extreme overclocking than ever before.	LGA 1156 Core i7 Supports the Intel® Core i7 Processors in the LGA1156 package. Applying processing power where it's needed most with faster, intelligent, multi-core technology, and delivering an incredible breakthrough in PC performance.
LGA 1156 Core i5 Supports the Intel Core i5 Processors in the LGA1156 package. Accelerating in response to demanding tasks, such as playing games and editing photos with intelligent performance, and moving faster when you do.	LGA 1156 Core i3 Supports the Intel Core i3 Processors in the LGA1156 package. This family equipped with Intel® HD Graphics is the perfect entry point for a fast, responsive PC experience.
LGA 1156 Supports LGA 1156 CPU-socket interface in the single chipset structure and will supersede LGA775 in the high-end and performance desktop segments. It can tune your system for extra performance and feed your need for speed.	PCI EXPRESS 2.0 The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future.
SATAII 3.0Gb/s Doubles the transfer speed of SATA, running at speed up to 3.0Gb/s, and fully compatible with the soon-to-be-released SATA HDD, CD-ROM and other cutting-edge devices with NCQ function support.	6 Channel High Definition Audio Integrated 6-channel HD Audio CODEC delivering advanced multi-channel audio and bringing you the experience of home theater-quality sound.
Gigabit LAN Delivers transfer speed ten times faster than conventional 10/ 100 Ethernet connections, supporting a high transfer rate up to Gigabit/s. Gigabit LAN is the networking standards for the future and is ideal for handing large amount of data such as video, audio, and voice.	DVI Output A video interface standard designed to maximize the visual quality of digital display devices such as flat panel LCD computer displays and digital projectors. DVI transmits a digital signal from a digital location in the graphics card to a digital location on the display screen. So you get the full clarity and stability of liquid crystal technology — with sharp, clear pixels.
eBLU - BIOS Live Update Utility ECS eBLU utility makes updating BIOS fast and easy. eBLU saves time and hassle of searching for BIOS online and avoid complicated flashing steps. With simple and easy steps it checks for new BIOS version on-line and safely guides the user to flash the system BIOS.	eDLU - Drivers Live Update Utility ECS eDLU utility makes updating Drivers fast and easy. eDLU Saves time and hassle of searching for Drivers online and avoid complicated steps. With simple and easy steps it checks for new Drivers version on-line and let the user to update the Drivers.
Certified For Windows® 7 Windows® 7 platform introduces a number of manageability improvements that can reduce total cost of ownership by helping to increase automation, improve user productivity, and provide flexible administrative control to meet compliance requirements. It is more user-friendly and has been optimized to consume less system resources with Windows® 7 as well. Furthermore, the VT technology is enhanced to support real-time multimedia application including video playback and 3D games.

CPU Support List:
