ECS H61H-G11 V7.1 Motherboard No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBECSH61HG11V71
Brand Ecs - Elitegroup
Model H61H-G11 V7.1
Category Intel Lga1155 Motherboard
Description

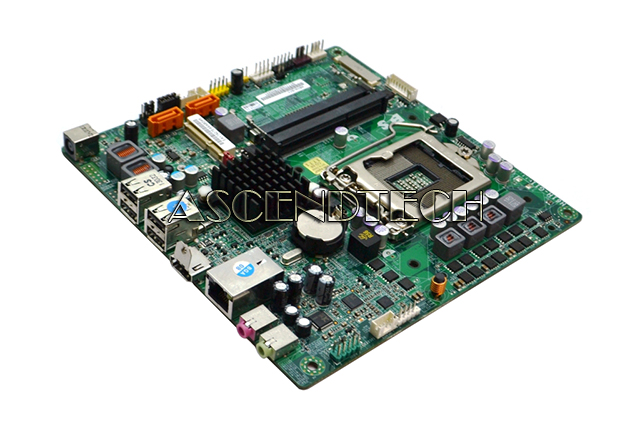

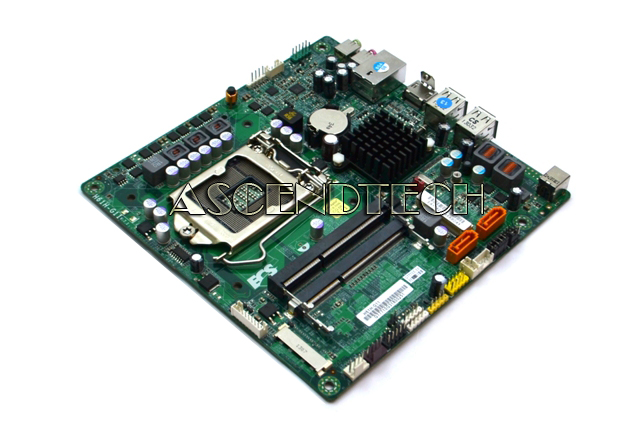

ECS H61H-G11 V7.1 Intel Socket LGA 1155/Socket H2 H61 Chipset DDR3 USB 2.0 SATA 3Gb/s Mini ITX Motherboard. An incredible performance motherboard, the ECS H61H-G11 V7.1 supports socket LGA 1155 Intel 2nd Generation Core i7, Core i5, Core i3 Processors. It is equipped with all solid capacitors to offer the longevity, reliability and total stability you can expect from ECS. Features USB 2.0 and SATA 3G for super speed data transfer.
* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.
Features:
-Integrated LVDS for an extra display option
-Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
-ECS Durathon Technology ensure the stability, reliability and performance of system.
-ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
-Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
-Extra HDD/ODD power header for DC-in power jack
-Microsoft Windows 8 Certified
-Intel 22nm 3rd generation Multi-Core CPU support
-Intel VRD 12 Ready
-Supports DirectX 11 to enhance graphical performance
-Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
-Supports HDMI 1.4a Technology (resolution up to 1920x1200) and HDCP function
Specifications:
| CPU | Supports 2nd & 3rd gen Intel Core family, Pentium, Celeron series processors in socket LGA 1155* DMI 5.0GT/s VRD 12.0 Solid Capacitor for CPU side Supports Intel Turbo Boost 2.0 Technology Supports Intel Hyper-Threading Technology * Please refer to CPU support list for details |
| CHIPSET | Intel H61 Express Chipset |
| EXTRA CHIPS | Support Intel HD Graphics 2500/4000(Intel 3rd gen CPU) Supports DirectX 11* Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider Supports HDMI 1.4a & Premium Audio Supports OpenGL 3.1 (Intel 3rd gen CPU) Supports OpenCL 1.1 (Intel 3rd gen CPU) * DirectX 11 - Only supported with the 3rd Gen Intel processors for socket LGA 1155 |
| MEMORY | Dual-channel DDR3 Memory architecture Supports DDR3 1066/800 non-ECC, Un-buffered SDRAM Memory 2 x 240-pin DDR3 DIMM sockets Supports up to 16GB* Intel extreme Memory Profile (XMP) 1.3/1.2 Memory Modules * Due to operating system limitations, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation |
| EXPANSION SLOT | 1 x Mini PCI Express X1 slot(s) |
| STORAGE | Support by Intel H61 Express Chipset - 2 x SATA II 3Gb/s Supports NCQ, AHCI and "Hot Plug" functions |
| AUDIO | Compliant with HD audio specifications Realtek ALC662 - Realtek ALC662 6-channel High Definition audio CODEC - Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs - Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution - Emulation of 26 sound environments to enhance gaming experience - Voice Cancellation and Key Shifting in Karaoke mode - Compatible with Direct Sound 3D, A3D, I3DL2 |
USB | Support by Intel H61 Express Chipset - 9 x USB 2.0 port(s), Up to 480 Mb/s Back Panel 4 port(s) Onboard 5 port(s) |
| LAN | Realtek 8111E Gigabit Fast Ethernet Controller Wake-On-LAN |

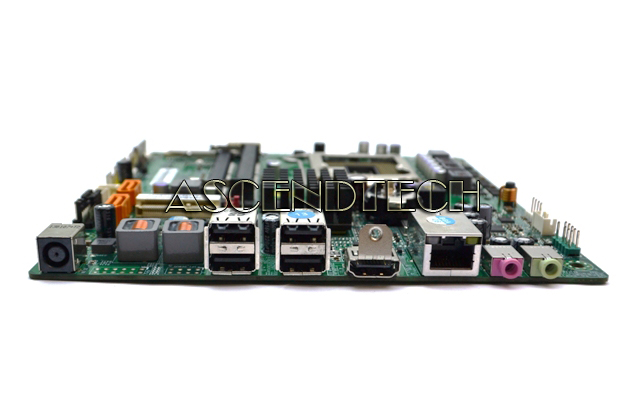

| REAR PANEL I/O | 2 x Audio jacks (Line Out, Mic In) 1 x Ethernet (RJ-45) port 1 x HDMI port 4 x USB 2.0 port(s) 1 x DC-in Connector |
| INTERNAL CONNECTORS & HEADERS | 1 x 4-pin CPU_FAN connector 1 x 4-pin SYS_FAN connector 1 x Front Panel switch/LED header 1 x Front panel audio header 1 x Speaker header 4 x USB 2.0 header - Supports additional 5 USB ports 2 x SATA II 3Gb/s connector(s) 1 x CLR_CMOS header 1 x HDD Power connector 1 x ODD Power connector 1 x Inverter header 1 x LVDS connector |
| SYSTEM BIOS | AMI BIOS with 64 MB SPI Flash ROM ACPI & DMI F7 hot key for boot up devices option Over-Clocking Dual Display Triple Display Support ECS EZ BIOS Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot Multi-Language BIOS Audio, LAN, can be disabled in BIOS Supports PgUp clear CMOS Hotkey |
| OS Support | Windows XP 32-bit/64-bit Windows Vista 32-bit/64-bit Windows 7 32-bit/64-bit Windows 8 32-bit/64-bit |
| FORM FACTOR | Thin Mini ITX Form Factor 6.7" x 6.7" (170mm x 170mm) |
CPU Support List:
| Socket | Family | Processor | Wattage | Frequency | Cache | Stepping | Since BIOS |
| LGA1155 | Intel Core i7 | 2600 (Sandy Bridge) | 95W | 3.40GHz | 8MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i7 | 2600K (Sandy Bridge) | 95W | 3.40GHz | 8MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i7 | 2600S (Sandy Bridge) | 65W | 2.80GHz | 8MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i7 | 2700K (Sandy Bridge) | 95W | 3.50GHz | 8MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i7 | 3770 (Ivy Bridge) | 77W | 3.40GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i7 | 3770K (Ivy Bridge) | 77W | 3.50GHz | 8MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i7 | 3770K (Ivy Bridge) | 77W | 3.50GHz | 8MB | E1 | 11/22/2013 |
| LGA1155 | Intel Core i7 | 3770S (Ivy Bridge) | 65W | 3.10GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2300 (Sandy Bridge) | 95W | 2.80GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2310 (Sandy Bridge) | 65W | 2.90GHz | 6MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2320 (Sandy Bridge) | 95W | 3.00GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2380P (Sandy Bridge) | 95W | 3.10GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2390T (Sandy Bridge) | 35W | 2.70GHz | 6MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2400 (Sandy Bridge) | 95W | 3.10GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2400S (Sandy Bridge) | 65W | 2.50GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2405S (Sandy Bridge) | 65W | 2.50GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2450P (Sandy Bridge) | 95W | 3.20GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2500 (Sandy Bridge) | 95W | 3.30GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2500K (Sandy Bridge) | 95W | 3.30GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2500S (Sandy Bridge) | 65W | 2.70GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 2500T (Sandy Bridge) | 45W | 2.30GHz | 6MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3330 (Ivy Bridge) | 77W | 3.00GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3330 (Ivy Bridge) | 77W | 3.00GHz | 6MB | E1 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3330S (Ivy Bridge) | 65W | 2.70GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3330S (Ivy Bridge) | 65W | 2.70GHz | 6MB | E1 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3450 (Ivy Bridge) | 77W | 3.10GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3450 (Ivy Bridge) | 77W | 3.10GHz | 6MB | E1 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3450S (Ivy Bridge) | 65W | 2.80GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3475S (Ivy Bridge) | 65W | 2.90GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3550 (Ivy Bridge) | 77W | 3.30GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3550 (Ivy Bridge) | 77W | 3.30GHz | 6MB | E1 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3550S (Ivy Bridge) | 65W | 3.00GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3550S (Ivy Bridge) | 65W | 3.00GHz | 6MB | E1 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3570K (Ivy Bridge) | 77W | 3.40GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3570K (Ivy Bridge) | 77W | 3.40GHz | 6MB | E1 | 11/22/2013 |
| LGA1155 | Intel Core i5 | 3570T (Ivy Bridge) | 45W | 2.30GHz | 6MB | E0 | 11/22/2013 |
| LGA1155 | Intel Core i3 | 2100 (Sandy Bridge) | 65W | 3.10GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Core i3 | 2100T (Sandy Bridge) | 35W | 2.50GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Core i3 | 2105 (Sandy Bridge) | 65W | 3.10GHz | 3MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i3 | 2120 (Sandy Bridge) | 65W | 3.30GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Core i3 | 2120T (Sandy Bridge) | 35W | 2.60GHz | 3MB | D2 | 11/22/2013 |
| LGA1155 | Intel Core i3 | 2125 (Sandy Bridge) | 65W | 3.30GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Core i3 | 2130 (Sandy Bridge) | 65W | 3.40GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Core i3 | 3220 (Ivy Bridge) | 55W | 3.30GHz | 3MB | L1 | 11/22/2013 |
| LGA1155 | Intel Core i3 | 3225 (Ivy Bridge) | 55W | 3.30GHz | 3MB | L1 | 11/22/2013 |
| LGA1155 | Intel Core i3 | 3240 (Ivy Bridge) | 55W | 3.40GHz | 3MB | L1 | 11/22/2013 |
| LGA1155 | Intel Pentium | G620 (Sandy Bridge) | 65W | 2.60GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Pentium | G620T (Sandy Bridge) | 35W | 2.20GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Pentium | G630 (Sandy Bridge) | 65W | 2.70GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Pentium | G630T (Sandy Bridge) | 35W | 2.30GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Pentium | G640 (Sandy Bridge) | 65W | 2.80GHz | 3MB | D2 | 11/22/2013 |
| LGA1155 | Intel Pentium | G640T (Sandy Bridge) | 35W | 2.40GHz | 3MB | D2 | 11/22/2013 |
| LGA1155 | Intel Pentium | G840 (Sandy Bridge) | 65W | 2.80GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Pentium | G850 (Sandy Bridge) | 65W | 2.90GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Pentium | G860 (Sandy Bridge) | 65W | 3.00GHz | 3MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Pentium | G860T (Sandy Bridge) | 35W | 2.60GHz | 3MB | D2 | 11/22/2013 |
| LGA1155 | Intel Pentium | G870 (Sandy Bridge) | 65W | 3.10GHz | 3MB | D2 | 11/22/2013 |
| LGA1155 | Intel Celeron | G440 (Sandy Bridge) | 35W | 1.60GHz | 1MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Celeron | G460 (Sandy Bridge) | 35W | 1.80GHz | 1.5MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Celeron | G470 (Sandy Bridge) | 35W | 2.00GHz | 1.5MB | Q0 | 05/28/2013 |
| LGA1155 | Intel Celeron | G530 (Sandy Bridge) | 65W | 2.40GHz | 2MB | D2 | 11/22/2013 |
| LGA1155 | Intel Celeron | G530T (Sandy Bridge) | 35W | 2.00GHz | 2MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Celeron | G540 (Sandy Bridge) | 65W | 2.50GHz | 2MB | Q0 | 11/22/2013 |
| LGA1155 | Intel Celeron | G540T (Sandy Bridge) | 35W | 2.10GHz | 2MB | D2 | 11/22/2013 |
| LGA1155 | Intel Celeron | G550 (Sandy Bridge) | 65W | 2.60GHz | 2MB | D2 | 11/22/2013 |
