ECS H61H2-I2 V1.0 | Ecs H61h2-I2 V1.0 Lga1155 Intel H61 Mb

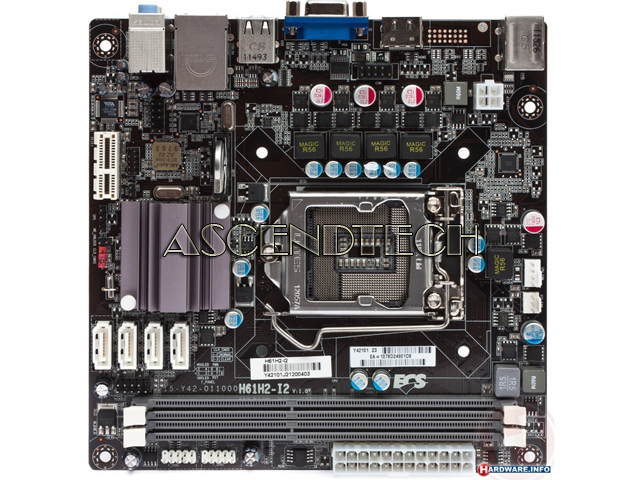

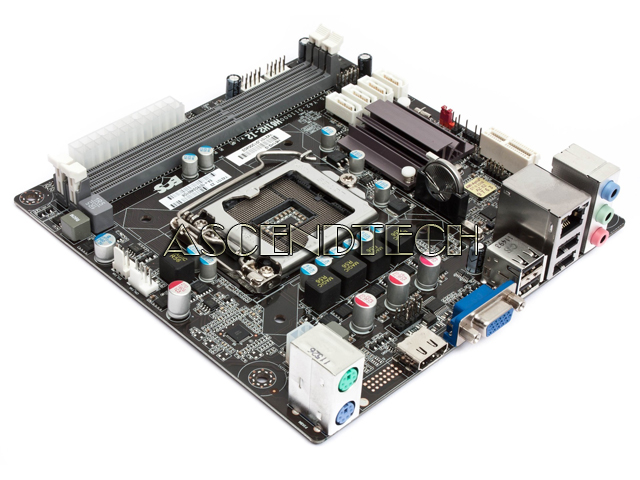

ECS H61H2-I2 V1.0 LGA 1155 Intel H61 Mini ITX Motherboard. ECS meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Features:

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi
language environment
ECS MIB III - A friendly interface for overclocking
Microsoft Windows 8 Certified
Intel^® 22nm 3rd generation Multi-Core CPU support
Intel ^® VRD 12 Ready
Supports DirectX^® 11 to enhance graphical performance
Supports Intel^® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology,
Insider™
ECS Intelligent EZ Utility : eBLU, eDLU, eSF

Specifications:

CPU	º Supports new 2nd & 3rd gen Intel^® Core™ family, Pentium, Celeron series processors in LGA1155 socket º DMI 5.0GT/s º VRD 12.0 º Solid Capacitor for CPU side º Supports Intel^® Turbo Boost 2.0 Technology º Supports Intel^® Hyper-Threading Technology º Please refer to CPU support list for details
CHIPSET	º Intel^® H61 Express Chipset
GRAPHICS	º Support Intel^® HD Graphics 2500/4000(Intel 3rd gen CPU) º Supports DirectX^® 11 º *DirectX 11 - Only supported with the 3rd Gen Intel processors for LGA 1155 socket º Supports Intel^® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ º Supports OpenGL 3.1(Intel 3rd gen CPU) º Supports OpenCL 1.1(Intel 3rd gen CPU)
MEMORY	º Dual-channel DDR3 Memory architecture º Supports DDR3 1600/1333/1066 non-ECC, Un-buffered SDRAM Memory º Intel^® extreme Memory Profile (XMP) 1.3/1.2 Memory Modules º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation º Note:Please refer to the latest Memory support list for details
EXPANSION SLOT	º 1 X PCI Express X 1 Gen 2.0 slot(s)
Storage	º Support by Intel® H61 Express Chipset • 4 X Serial ATAII 3Gb/s º Supports NCQ, AHCI and "Hot Plug" functions
Audio	º 6-Channel HD audio CODEC º Compliant with HD audio specification º VIA 1705 ‧VIA^® VT1705 6-channel High Definition audio CODEC ‧Compliant with HD audio specification for a whole new immersive surround sound experience ‧3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR ‧Low Power Consumption ‧Capability for “full rate” BluRay / DVD / HD DVD support.
LAN	º Realtek 8111E Gigabit Fast Ethernet Controller º (Realtek 8105E 10/100Mbps Fast Ethernet Controller optional) º Wake-On-LAN
USB	º Support by Intel® H61 Express Chipset • 8 X USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 4 port(s)

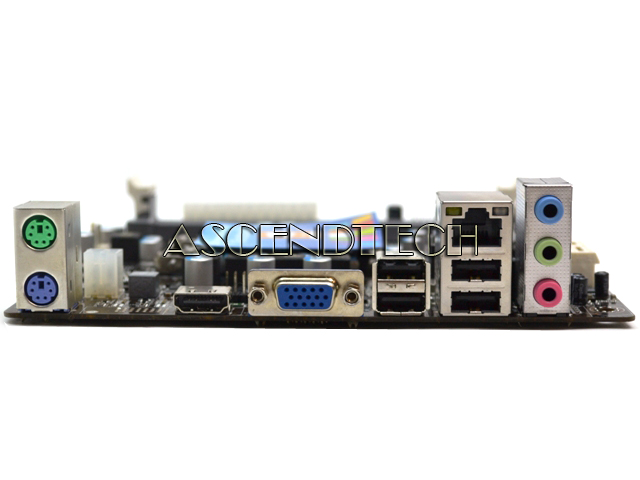

REAR PANEL I/O	º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 port º 1 X DVI-D port(s) º 1 X D-Sub (VGA) port(s) º 1 X DVI port(s) (HDMI port(s), optional) º 4 X USB2.0 port(s)
CONNECTORS & HEADERS	º 1 X 24-pin ATX Power Supply connector º 1 X 4-pin 12V Power connector º 1 X 4-pin CPU_FAN connector º 1 X 3-pin SYS_FAN connector with smart fan º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Speaker header º 4 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 1 X Serial port header (COM) º 1 X ME_UNLOCK header º 1 X Chassis intrusion header
SYSTEM BIOS	º AMI BIOS with 32 MB SPI Flash ROM º Supports M.I.B III Utility º Supports ACPI 3.0 & DMI º F7 hot key for boot up devices option º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Supports PgUp clear CMOS Hotkey
FORM FACTOR	º Mini ITX Form Factor º 170mm(W)*170mm(H)
OS Support	º Windows XP 32-bit º Windows XP 64-bit º Windows Vista 32-bit º Windows Vista 64-bit º Windows 7 32-bit º Windows 7 64-bit º Windows 8 32-bit º Windows 8 64-bit
Certifications	º CE/FCC Certification º ErP/EuP Certification º WHQL Certification º WHCK Certification

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

* Note: IVB means Ivy Bridge ; SNB means Sandy Bridge.

Socket	Family	Processor *	Wattage	Frequency	Cache	Stepping	Since BIOS
LGA1155	Intel Core™ i7	2600 (SNB)	95W	3.40GHz	8MB	D2	01/04/2013
LGA1155	Intel Core™ i7	2600K (SNB)	95W	3.40GHz	8MB	D2	01/04/2013
LGA1155	Intel Core™ i7	2600S (SNB)	65W	2.80GHz	8MB	D2	01/04/2013
LGA1155	Intel Core™ i7	2700K (SNB)	95W	3.50GHz	8MB	D2	01/04/2013
LGA1155	Intel Core™ i7	3770 (IVB)	77W	3.40GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i7	3770K (IVB)	77W	3.50GHz	8MB	E0	01/04/2013
LGA1155	Intel Core™ i7	3770K (IVB)	77W	3.50GHz	8MB	E1	01/04/2013
LGA1155	Intel Core™ i7	3770S (IVB)	65W	3.10GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i5	2300 (SNB)	95W	2.80GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	2310 (SNB)	65W	2.90GHz	6MB	Q0	01/04/2013
LGA1155	Intel Core™ i5	2320 (SNB)	95W	3.00GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	2380P (SNB)	95W	3.10GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	2390T (SNB)	35W	2.70GHz	6MB	Q0	01/04/2013
LGA1155	Intel Core™ i5	2400 (SNB)	95W	3.10GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	2400S (SNB)	65W	2.50GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	2405S (SNB)	65W	2.50GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	2450P (SNB)	95W	3.20GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	2500 (SNB)	95W	3.30GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	2500K (SNB)	95W	3.30GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	2500S (SNB)	65W	2.70GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	2500T (SNB)	45W	2.30GHz	6MB	D2	01/04/2013
LGA1155	Intel Core™ i5	3330 (IVB)	77W	3.00GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i5	3330 (IVB)	77W	3.00GHz	6MB	E1	01/04/2013
LGA1155	Intel Core™ i5	3330S (IVB)	65W	2.70GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i5	3330S (IVB)	65W	2.70GHz	6MB	E1	01/04/2013
LGA1155	Intel Core™ i5	3450 (IVB)	77W	3.10GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i5	3450 (IVB)	77W	3.10GHz	6MB	E1	01/04/2013
LGA1155	Intel Core™ i5	3450S (IVB)	65W	2.80GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i5	3470 (IVB)	77W	3.20GHz	6MB	N0	03/03/2012
LGA1155	Intel Core™ i5	3470S (IVB)	65W	2.90GHz	6MB	N0	03/03/2012
LGA1155	Intel Core™ i5	3470T (IVB)	35W	2.90GHz	3MB	L1	03/03/2012
LGA1155	Intel Core™ i5	3475S (IVB)	65W	2.90GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i5	3550 (IVB)	77W	3.30GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i5	3550 (IVB)	77W	3.30GHz	6MB	E1	01/04/2013
LGA1155	Intel Core™ i5	3550S (IVB)	65W	3.00GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i5	3550S (IVB)	65W	3.00GHz	6MB	E1	01/04/2013
LGA1155	Intel Core™ i5	3570 (IVB)	77W	3.40GHz	6MB	N0	03/03/2012
LGA1155	Intel Core™ i5	3570K (IVB)	77W	3.40GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i5	3570K (IVB)	77W	3.40GHz	6MB	E1	01/04/2013
LGA1155	Intel Core™ i5	3570S (IVB)	65W	3.10GHz	6MB	N0	03/03/2012
LGA1155	Intel Core™ i5	3570T (IVB)	45W	2.30GHz	6MB	E0	01/04/2013
LGA1155	Intel Core™ i3	2100 (SNB)	65W	3.10GHz	3MB	Q0	01/04/2013
LGA1155	Intel Core™ i3	2100T (SNB)	35W	2.50GHz	3MB	Q0	01/04/2013
LGA1155	Intel Core™ i3	2105 (SNB)	65W	3.10GHz	3MB	D2	01/04/2013
LGA1155	Intel Core™ i3	2120 (SNB)	65W	3.30GHz	3MB	Q0	01/04/2013
LGA1155	Intel Core™ i3	2120T (SNB)	35W	2.60GHz	3MB	D2	01/04/2013
LGA1155	Intel Core™ i3	2125 (SNB)	65W	3.30GHz	3MB	Q0	01/04/2013
LGA1155	Intel Core™ i3	2130 (SNB)	65W	3.40GHz	3MB	Q0	01/04/2013
LGA1155	Intel Core™ i3	3210 (IVB)	55W	3.20GHz	3MB	P0	01/04/2013
LGA1155	Intel Core™ i3	3220 (IVB)	55W	3.30GHz	3MB	L1	01/04/2013
LGA1155	Intel Core™ i3	3220T (IVB)	35W	2.80GHz	3MB	L1	03/03/2012
LGA1155	Intel Core™ i3	3225 (IVB)	55W	3.30GHz	3MB	L1	01/04/2013
LGA1155	Intel Core™ i3	3240 (IVB)	55W	3.40GHz	3MB	L1	01/04/2013
LGA1155	Intel Core™ i3	3240T (IVB)	35W	2.90GHz	3MB	L1	03/03/2012
LGA1155	Intel Core™ i3	3245 (IVB)	55W	3.40GHz	3MB	L1	05/28/2013
LGA1155	Intel Core™ i3	3250 (IVB)	55W	3.00GHz	3MB	P0	05/28/2013
LGA1155	Intel Core™ i3	3250T (IVB)	35W	3.00GHz	3MB	P0	05/28/2013
LGA1155	Intel Pentium	G2010 (IVB)	55W	2.80GHz	3MB	P0	01/04/2013
LGA1155	Intel Pentium	G2020 (IVB)	55W	2.90GHz	3MB	P0	01/04/2013
LGA1155	Intel Pentium	G2020T (IVB)	35W	2.50GHz	3MB	P0	01/04/2013
LGA1155	Intel Pentium	G2030 (IVB)	55W	3.00GHz	3MB	P0	05/28/2013
LGA1155	Intel Pentium	G2030T (IVB)	35W	2.60GHz	3MB	P0	05/28/2013
LGA1155	Intel Pentium	G2120T (IVB)	35W	2.70GHz	3MB	P0	05/28/2013
LGA1155	Intel Pentium	G2130 (IVB)	55W	3.20GHz	3MB	P0	01/04/2013
LGA1155	Intel Pentium	G2140 (IVB)	55W	3.30GHz	3MB	P0	05/28/2013
LGA1155	Intel Pentium	G620 (SNB)	65W	2.60GHz	3MB	Q0	01/04/2013
LGA1155	Intel Pentium	G620T (SNB)	35W	2.20GHz	3MB	Q0	01/04/2013
LGA1155	Intel Pentium	G630 (SNB)	65W	2.70GHz	3MB	Q0	01/04/2013
LGA1155	Intel Pentium	G630T (SNB)	35W	2.30GHz	3MB	Q0	01/04/2013
LGA1155	Intel Pentium	G640 (SNB)	65W	2.80GHz	3MB	D2	01/04/2013
LGA1155	Intel Pentium	G640T (SNB)	35W	2.40GHz	3MB	D2	01/04/2013
LGA1155	Intel Pentium	G645 (SNB)	65W	2.90GHz	3MB	D2	05/07/2012
LGA1155	Intel Pentium	G840 (SNB)	65W	2.80GHz	3MB	Q0	01/04/2013
LGA1155	Intel Pentium	G850 (SNB)	65W	2.90GHz	3MB	Q0	01/04/2013
LGA1155	Intel Pentium	G860 (SNB)	65W	3.00GHz	3MB	Q0	01/04/2013
LGA1155	Intel Pentium	G860T (SNB)	35W	2.60GHz	3MB	D2	01/04/2013
LGA1155	Intel Pentium	G870 (SNB)	65W	3.10GHz	3MB	D2	01/04/2013
LGA1155	Intel Celeron	G1610 (IVB)	55W	2.60GHz	2MB	P0	01/04/2013
LGA1155	Intel Celeron	G1610T (IVB)	35W	2.30GHz	2MB	P0	01/04/2013
LGA1155	Intel Celeron	G1620 (IVB)	55W	2.70GHz	2MB	P0	01/04/2013
LGA1155	Intel Celeron	G440 (SNB)	35W	1.60GHz	1MB	Q0	01/04/2013
LGA1155	Intel Celeron	G460 (SNB)	35W	1.80GHz	1.5MB	Q0	01/04/2013
LGA1155	Intel Celeron	G465 (SNB)	35W	1.90GHz	1.5MB	Q0	05/07/2012
LGA1155	Intel Celeron	G470 (SNB)	35W	2.00GHz	1.5MB	Q0	05/28/2013
LGA1155	Intel Celeron	G530 (SNB)	65W	2.40GHz	2MB	D2	01/04/2013
LGA1155	Intel Celeron	G530T (SNB)	35W	2.00GHz	2MB	Q0	01/04/2013
LGA1155	Intel Celeron	G540 (SNB)	65W	2.50GHz	2MB	Q0	01/04/2013
LGA1155	Intel Celeron	G540T (SNB)	35W	2.10GHz	2MB	D2	01/04/2013
LGA1155	Intel Celeron	G550 (SNB)	65W	2.60GHz	2MB	D2	01/04/2013
LGA1155	Intel Celeron	G550T	35W	2.20GHz	2MB	D2	07/06/2012
LGA1155	Intel Celeron	G555 (SNB)	65W	2.70GHz	2MB	D2	05/07/2012
