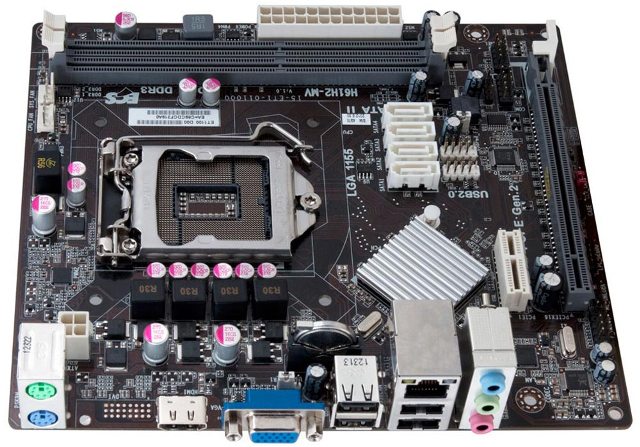

ECS H61H2-MV LGA1155 DDR3 Motherboard

CPU

Supports new 2nd & 3rd gen Intel Core family, Pentium, Celeron series processors in LGA1155 socket
DMI 5.0GT/s
VRD 12.0
Solid Capacitor for CPU side

Chipset

Intel H61 Express Chipset

Graphics

Support Intel HD Graphics 2000/3000(Intel 2nd gen CPU) & 2500/4000(Intel 3rd gen CPU)
Supports DirectX 11
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology,
Insider

Memory

Dual-channel DDR3 Memory architecture
Supports DDR3 1600*/1333/1066 non-ECC, Un-buffered SDRAM Memory
2 X 240-pin DDR3 DIMM socket
Support up to 16 GB*
* Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation
* Intel Ivy Bridge CPU required

Expansion Slot

1 X PCI Express X16 Gen 3.0 slot(s)
1 X PCI Express X 1 Gen 2.0slot(s)

Storage

Support by H61 Express Chipset
4 X Serial ATAII 3Gb/s

Audio

Realtek ALC662
‧Realtek ALC662 6-channel High Definition audio CODEC
‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
‧Emulation of 26 sound environments to enhance gaming experience
‧Voice Cancellation and Key Shifting in Karaoke mode
‧Compatible with Direct Sound 3D, A3D, I3DL2

LAN

Realtek 8111E Gigabit Fast Ethernet Controller
(8105E 10/100Mbps Fast Ethernet Controller optional)
Wake-On-LAN

USB

Support by H61 Express Chipset
8 X USB2.0 port(s) Up to 480 Mb/s

Rear Panel I/O

1 X PS/2 Keyboard & PS/2 mouse connectors
1 X Audio port (Line Out/Line In/Mic In)
1 X RJ-45 port
1 X HDMI port(s)
1 X D-Sub (VGA) port(s)
4 X USB2.0 port(s)

Connectors and Headers

1 X 24-pin ATX Power Supply connector
1 X 4-pin 12V Power connector
1 X 4-pin CPU_FAN connector
1 X 3-pin SYS_FAN connector
1 X Front panel audio header (90 degrees)
2 X USB 2.0 header
Support additional 4 USB ports
4 X SATA II 3Gb/s connector(s)
1 X CLR_CMOS header
1 X Serial port header (COM)
1 X ME_UNLOCK header

System BIOS

AMI BIOS with 32 MB SPI Flash ROM
Supports M.I.B III Utility
ACPI & DMI
F7 hot key for boot up devices option
Over-Clocking
Dual Display
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Audio, LAN, can be disabled in BIOS
Supports PgUp clear CMOS Hotkey
CPU FSB adjustment(increase of 1MHz)

Form Factor

mATX Form Factor
195 mm(W) X 170mm(H)
