ECS H61H2-TI LGA1155 H61 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

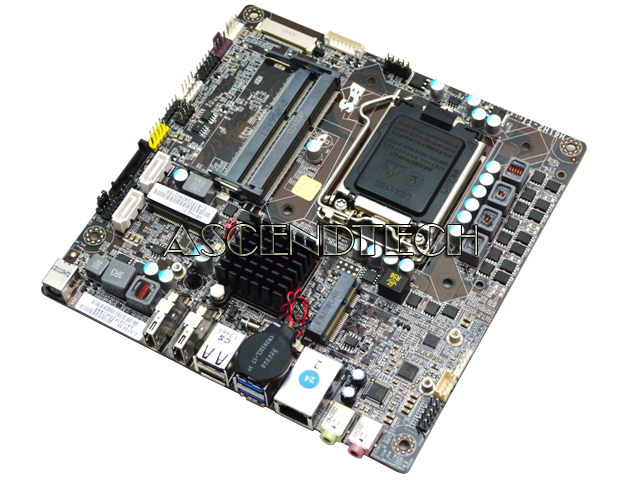

Ecs H61h2-Ti Lga1155 H61 Motherboard. Model: H61h2-Ti V1.0
  Enlarge

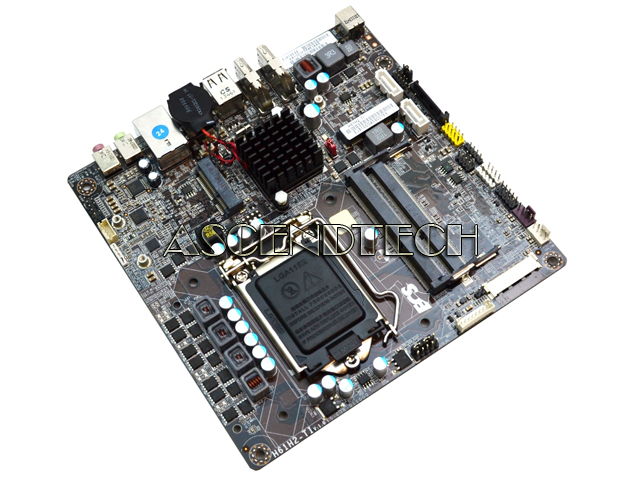

Ecs H61h2-Ti Lga1155 H61 Motherboard. Model: H61h2-Ti V1.0

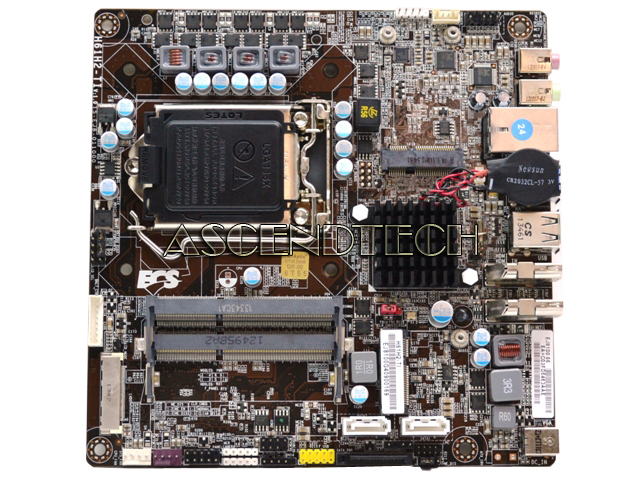

Ecs H61h2-Ti Lga1155 H61 Motherboard. Model: H61h2-Ti V1.0

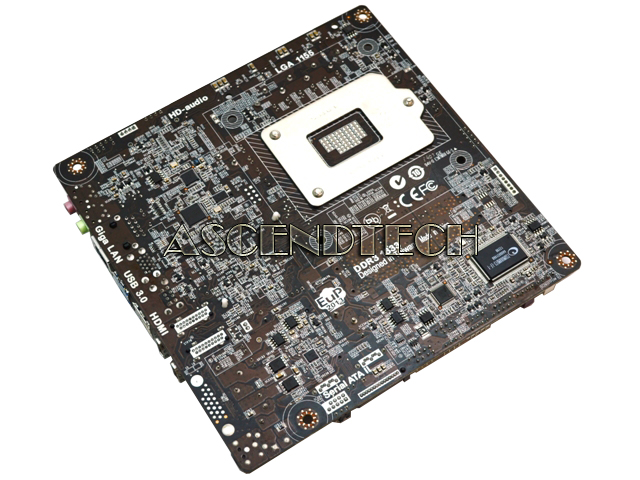

Ecs H61h2-Ti Lga1155 H61 Motherboard. Model: H61h2-Ti V1.0
Ecs H61h2-Ti Lga1155 H61 Motherboard. Model: H61h2-Ti V1.0
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSH61H2TIV10
Brand Ecs - Elitegroup
Model H61H2-TI V1.0
Category Intel Lga1155 Motherboard

Description

ECS H61H2-TI V1.0 Intel Socket LGA 1155 H61 Chipset HDMI USB 3.0 Mini ITX Motherboard. Desktop PC platforms based on the Intel H61 Express Chipset and 2nd generation Intel Core processor family deliver new technologies and innovating capabilities for all consumers. Designed for scalability and cost-optimization platforms, the Intel H61 Express Chipset enables 1 DIMM per channel of DDR3 1333 MHz.





Features:

• Integrated LVDS for an extra display option
• Applied 100% Solid capacitor design to maximize component reliability
• ECS Durathon Technology ensure the stability, reliability and performance of system.
• ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
• Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi-language environment
• Microsoft Windows 8.1 Certified
• Intel 22nm 3rd generation Multi-Core CPU support
• Intel VRD 12 Ready
• Supports DirectX 11 to enhance graphical performance
• Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
• Supports HDMI 1.4a Technology (resolution up to 1920x1200) and HDCP function
• ECS Intelligent EZ Utility: eBLU, eDLU, eSF





Specifications:

CPU

º Supports 2nd & 3rd generation Intel Core family, Pentium, Celeron series processors in LGA1155 socket
º DMI 5.0GT/s
º VRD 12.0
º 100% Solid capacitor design
º Supports Intel Turbo Boost 2.0 Technology
º Supports Intel Hyper-Threading Technology
º Please refer to CPU support list for details

CHIPSET

º Intel H61 Express Chipset

GRAPHICS

º Support Intel HD Graphics 2500/4000(Intel 3rd gen CPU)
º Supports DirectX 11*
*DirectX 11 - Only supported with the 3rd Gen Intel processors for LGA 1155 socket
º Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
º Supports HDMI 1.4a & Premium Audio
º Supports OpenGL 3.1 (Intel 3rd gen CPU)
º Supports OpenCL 1.1 (Intel 3rd gen CPU)
º Supports Full HD 1080P Blu-ray/HD-DVD Playback

MEMORY

º Dual-channel DDR3 Memory architecture
º Supports DDR3 1600*/1333/1066 non-ECC, Un-buffered SO DIMM Memory
º 2 x DDR3 SO-DIMM socket
º Support up to 16 GB**
º Intel extreme Memory Profile (XMP) 1.3/1.2 Memory Modules
* Due to operation system limitations, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation
** Intel Ivy Bridge CPU required
* Note: Please refer to the latest memory support list for details

EXPANSION SLOT

º 2 x Mini PCI Express X1 slot(s)

Storage

º Support by Intel H61 Express Chipset
    • 2 x SATA / Serial ATA II 3Gb/s
º Supports NCQ, AHCI and "Hot Plug" functions

Audio

º 6-Channel HD audio CODEC
º Compliant with HD audio specification
º Realtek ALC662
    • Realtek ALC662 6-channel High Definition audio CODEC
    • Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
    • Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
    • Emulation of 26 sound environments to enhance gaming experience
    • Voice Cancellation and Key Shifting in Karaoke mode
    • Compatible with Direct Sound 3D, A3D, I3DL2

LAN

º Realtek 8111E Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by Intel H61 Express Chipset
    • 2 x USB3.0 port(s) up to 5Gb/s
    • 7 x USB2.0 port(s) Up to 480 Mb/s
      Back Panel 2 port(s)
      Onboard 5 port(s)

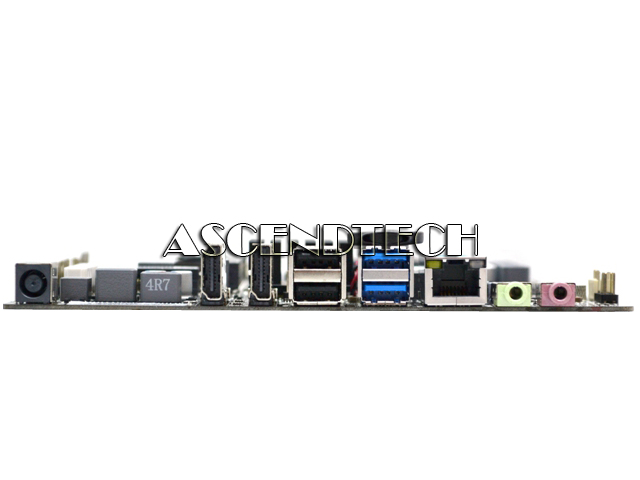

REAR PANEL I/O

º 2 x Audio jacks (Line Out, Mic In)
º 1 x Ethernet (RJ-45) port
º 1 x HDMI port(s)
º 1 x HDMI IN Port (optional)
º 2 x USB 3.0 port(s)
º 2 x USB 2.0 port(s)
º 1 x DC-in Connector

CONNECTORS & HEADERS

º 1 x 4-pin CPU_FAN connector
º 1 x 4-pin SYS_FAN connector
º 1 x Front Panel switch/LED header
º 1 x Front panel audio header
º 1 x Speaker header
º 4 x USB 2.0 header
    • Supports additional 5 USB ports
º 2 x SATA II 3Gb/s connector(s)
º 1 x CLR_CMOS header
º 1 x HDD Power connector
º 1 x ODD Power connector
º 1 x Inverter header
º 1 x LVDS connector

SYSTEM BIOS

º AMI BIOS with 64 MB SPI Flash ROM
º Supports ACPI 3.0 & DMI
º F7 hot key for boot up devices option
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4), Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Supports PgUp clear CMOS Hotkey

FORM FACTOR

º Thin Mini ITX Form Factor
º 170mm(W)*170mm(H)

OS Support

º Windows XP 32-bit
º Windows XP 64-bit
º Windows Vista 32-bit
º Windows Vista 64-bit
º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 32-bit
º Windows 8 64-bit
º Windows 8.1 32-bit
º Windows 8.1 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
º WHCK Certification













CPU Support List:

Socket

Family

Processor

Wattage

Frequency

Cache

Stepping

Since BIOS

LGA1155

Intel Core i7

2600S (Sandy Bridge)

65W

2.80GHz

8MB

D2

05/28/2013

LGA1155

Intel Core i7

3770 (Ivy Bridge)

77W *

3.40GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i7

3770K (Ivy Bridge)

77W *

3.50GHz

8MB

E0

05/28/2013

LGA1155

Intel Core i7

3770K (Ivy Bridge)

77W *

3.50GHz

8MB

E1

05/28/2013

LGA1155

Intel Core i7

3770S (Ivy Bridge)

65W

3.10GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i5

2390T (Sandy Bridge)

35W

2.70GHz

6MB

Q0

05/28/2013

LGA1155

Intel Core i5

2400S (Sandy Bridge)

65W

2.50GHz

6MB

D2

05/28/2013

LGA1155

Intel Core i5

2405S (Sandy Bridge)

65W

2.50GHz

6MB

D2

05/28/2013

LGA1155

Intel Core i5

2500S (Sandy Bridge)

65W

2.70GHz

6MB

D2

05/28/2013

LGA1155

Intel Core i5

2500T (Sandy Bridge)

45W

2.30GHz

6MB

D2

05/28/2013

LGA1155

Intel Core i5

3330 (Ivy Bridge)

77W *

3.00GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i5

3330 (Ivy Bridge)

77W *

3.00GHz

6MB

E1

05/28/2013

LGA1155

Intel Core i5

3330S (Ivy Bridge)

65W

2.70GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i5

3330S (Ivy Bridge)

65W

2.70GHz

6MB

E1

05/28/2013

LGA1155

Intel Core i5

3450 (Ivy Bridge)

77W *

3.10GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i5

3450 (Ivy Bridge)

77W *

3.10GHz

6MB

E1

05/28/2013

LGA1155

Intel Core i5

3450S (Ivy Bridge)

65W

2.80GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i5

3475S (Ivy Bridge)

65W

2.90GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i5

3550 (Ivy Bridge)

77W *

3.30GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i5

3550 (Ivy Bridge)

77W *

3.30GHz

6MB

E1

05/28/2013

LGA1155

Intel Core i5

3550S (Ivy Bridge)

65W

3.00GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i5

3550S (Ivy Bridge)

65W

3.00GHz

6MB

E1

05/28/2013

LGA1155

Intel Core i5

3570K (Ivy Bridge)

77W *

3.40GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i5

3570K (Ivy Bridge)

77W *

3.40GHz

6MB

E1

05/28/2013

LGA1155

Intel Core i5

3570T (Ivy Bridge)

45W

2.30GHz

6MB

E0

05/28/2013

LGA1155

Intel Core i3

2100 (Sandy Bridge)

65W

3.10GHz

3MB

Q0

05/28/2013

LGA1155

Intel Core i3

2100T (Sandy Bridge)

35W

2.50GHz

3MB

Q0

05/28/2013

LGA1155

Intel Core i3

2105 (Sandy Bridge)

65W

3.10GHz

3MB

D2

05/28/2013

LGA1155

Intel Core i3

2120 (Sandy Bridge)

65W

3.30GHz

3MB

Q0

05/28/2013

LGA1155

Intel Core i3

2120T (Sandy Bridge)

35W

2.60GHz

3MB

D2

05/28/2013

LGA1155

Intel Core i3

2125 (Sandy Bridge)

65W

3.30GHz

3MB

Q0

05/28/2013

LGA1155

Intel Core i3

2130 (Sandy Bridge)

65W

3.40GHz

3MB

Q0

05/28/2013

LGA1155

Intel Core i3

3210 (Ivy Bridge)

55W

3.20GHz

3MB

P0

01/03/2013

LGA1155

Intel Core i3

3220(Ivy Bridge)

55W

3.3GHz

3MB

L1

05/28/2013

LGA1155

Intel Core i3

3225(Ivy Bridge)

55W

3.3GHz

3MB

L1

05/28/2013

LGA1155

Intel Core i3

3240(Ivy Bridge)

55W

3.4GHZ

3MB

L1

05/28/2013

LGA1155

Intel Core i3

3245 (Ivy Bridge)

55W

3.40GHz

3MB

L1

05/28/2013

LGA1155

Intel Core i3

3250 (Ivy Bridge)

55W

3.00GHz

3MB

P0

05/28/2013

LGA1155

Intel Core i3

3250T (Ivy Bridge)

35W

3.00GHz

3MB

P0

05/28/2013

LGA1155

Intel Pentium

G2010 (Ivy Bridge)

55W

2.80GHz

3MB

P0

01/03/2013

LGA1155

Intel Pentium

G2020 (Ivy Bridge)

55W

2.90GHz

3MB

P0

01/03/2013

LGA1155

Intel Pentium

G2020T (Ivy Bridge)

35W

2.50GHz

3MB

P0

01/03/2013

LGA1155

Intel Pentium

G2030 (Ivy Bridge)

55W

3.00GHz

3MB

P0

05/28/2013

LGA1155

Intel Pentium

G2030T (Ivy Bridge)

35W

2.60GHz

3MB

P0

05/28/2013

LGA1155

Intel Pentium

G2120T (Ivy Bridge)

35W

2.70GHz

3MB

P0

05/28/2013

LGA1155

Intel Pentium

G2130 (Ivy Bridge)

55W

3.20GHz

3MB

P0

01/03/2013

LGA1155

Intel Pentium

G2140 (Ivy Bridge)

55W

3.30GHz

3MB

P0

05/28/2013

LGA1155

Intel Pentium

G620 (Sandy Bridge)

65W

2.60GHz

3MB

Q0

05/28/2013

LGA1155

Intel Pentium

G620T (Sandy Bridge)

35W

2.20GHz

3MB

Q0

05/28/2013

LGA1155

Intel Pentium

G630 (Sandy Bridge)

65W

2.70GHz

3MB

Q0

05/28/2013

LGA1155

Intel Pentium

G630T (Sandy Bridge)

35W

2.30GHz

3MB

Q0

05/28/2013

LGA1155

Intel Pentium

G640 (Sandy Bridge)

65W

2.80GHz

3MB

D2

05/28/2013

LGA1155

Intel Pentium

G640T (Sandy Bridge)

35W

2.40GHz

3MB

D2

05/28/2013

LGA1155

Intel Pentium

G840 (Sandy Bridge)

65W

2.80GHz

3MB

Q0

05/28/2013

LGA1155

Intel Pentium

G850 (Sandy Bridge)

65W

2.90GHz

3MB

Q0

05/28/2013

LGA1155

Intel Pentium

G860 (Sandy Bridge)

65W

3.00GHz

3MB

Q0

05/28/2013

LGA1155

Intel Pentium

G860T (Sandy Bridge)

35W

2.60GHz

3MB

D2

05/28/2013

LGA1155

Intel Pentium

G870 (Sandy Bridge)

65W

3.10GHz

3MB

D2

05/28/2013

LGA1155

Intel Celeron

G1610 (Ivy Bridge)

55W

2.60GHz

2MB

P0

01/03/2013

LGA1155

Intel Celeron

G1610T (Ivy Bridge)

35W

2.30GHz

2MB

P0

01/03/2013

LGA1155

Intel Celeron

G1620 (Ivy Bridge)

55W

2.70GHz

2MB

P0

01/03/2013

LGA1155

Intel Celeron

G440 (Sandy Bridge)

35W

1.60GHz

1MB

Q0

05/28/2013

LGA1155

Intel Celeron

G460 (Sandy Bridge)

35W

1.80GHz

1.5MB

Q0

05/28/2013

LGA1155

Intel Celeron

G470 (Sandy Bridge)

35W

2.00GHz

1.5MB

Q0

05/28/2013

LGA1155

Intel Celeron

G530 (Sandy Bridge)

65W

2.40GHz

2MB

D2

05/28/2013

LGA1155

Intel Celeron

G530T (Sandy Bridge)

35W

2.00GHz

2MB

Q0

05/28/2013

LGA1155

Intel Celeron

G540 (Sandy Bridge)

65W

2.50GHz

2MB

Q0

05/28/2013

LGA1155

Intel Celeron

G540T (Sandy Bridge)

35W

2.10GHz

2MB

D2

05/28/2013

LGA1155

Intel Celeron

G550 (Sandy Bridge)

65W

2.60GHz

2MB

D2

05/28/2013
