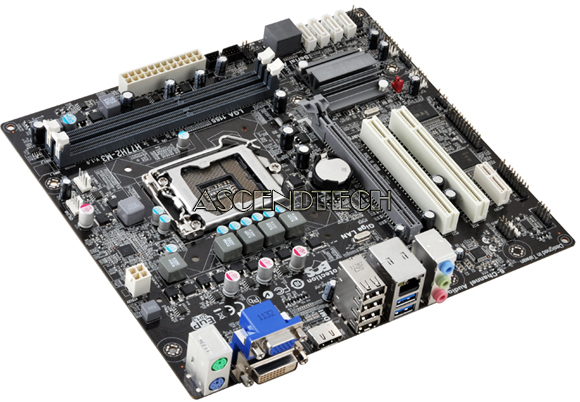

ECS H77H2-M3 V1.0 LGA 1155 Intel H77 Micro ATX Motherboard. Explore the new Intel LGA 1155 socket of latest 3rd Gen. Intel Core Family 22nm Processors in Intel 3rd Gen Core processors with ECS H77H2-M3. ECS's H77H2-M3 brings you the latest Intel 3rd Gen Core processors (i7/i5/i3/Celeron/Pentium) to immerse in it's unique features of Intel RST, Intel Smart Response Technology, 3D Support, DX 11, PCIe Gen3.0, Integrated USB3.0. STAT6Gb/s, and 3rd Gen Core Built-In-Visuals. The only one board serves you all!

Features:

6 Phase Power Design
Supports Intel® K Series unlock CPU
Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
ECS MIB III - A friendly interface for overclocking
Integrated Printer (LPT) port / header to expand functionality
Microsoft Windows 8 Certified
Intel® 22nm 3rd generation Multi-Core CPU support
Intel ® VRD 12 Ready
Supports DirectX® 11 to enhance graphical performance
Supports Intel® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports HDMI 1.4a Technology (resolution up to 1920X1200) and HDCP function
Supports Intel® Smart Response, Smart Connect and Rapid Start Technology
ECS Intelligent EZ Utility : eBLU, eDLU, eSF

Specifications:

CPU	º Supports new 2nd & 3rd gen Intel^® Core™ family, Pentium, Celeron series processors in LGA1155 socket º DMI 5.0GT/s º VRD 12.0 º Solid Capacitor for CPU side º Supports Intel^® Hyper-Threading Technology º Intel^® K Series Unlock CPU Support º Please refer to CPU support list for details
CHIPSET	º Intel^® H77 Express Chipset º Intel^® Smart Response Technology, Intel^® Smart Connect Technology & Intel^® Rapid Start Technolog
GRAPHICS	º Support Intel^® HD Graphics 2500/4000(Intel 3rd gen CPU) º Supports DirectX^® 11 º Supports Intel^® HD Graphics, InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ º Supports HDMI 1.4a & Premium Audio º Supports OpenGL 3.1(Intel 3rd gen CPU) º Supports OpenCL 1.1(Intel 3rd gen CPU) º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY	º Dual-channelDDR3 Memory architecture º 2 X 240-pin DDR3 DIMM socket º Support up to 16 GB* º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation º Note:Please refer to the latest Memory support list for details
EXPANSION SLOT	º 1 X PCI Express X16 Gen 3.0 slot(s) º 1 X PCI Express X 1 Gen 2.0 slot(s) º 2 X PCI slot(s)
Storage	º Support by Intel® H77 Express Chipset • 2 X Serial ATAIII 6Gb/s • 4 X Serial ATAII 3Gb/s • RAID0, RAID1,RAID5, RAID 10 configuration º Supports Intel^® Rapid Storage Technology º Supports NCQ, AHCI and "Hot Plug" functions
Audio	º 6-Channel HD audio CODEC º Compliant with HD audio specification º Realtek ALC662 ‧Realtek ALC662 6-channel High Definition audio CODEC ‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs ‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution ‧Emulation of 26 sound environments to enhance gaming experience ‧Voice Cancellation and Key Shifting in Karaoke mode ‧Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN	º Realtek 8111E Gigabit Fast Ethernet Controller º Wake-On-LAN
USB	º Support by H77 Express Chipset • 4 X USB3.0 port(s) up to 5Gb/s Back Panel 2 port(s) Onboard 2 port(s) • 10 X USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 6 port(s) º ECS EZ Charger (Gray USB header)

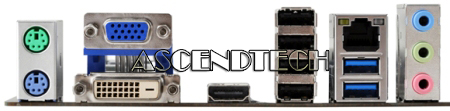

REAR PANEL I/O	º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 port º 1 X HDMI port(s) º 1 X DVI-D port(s) º 1 X D-Sub (VGA) port(s) º 2 X USB3.0 port(s) º 4 X USB2.0 port(s)
CONNECTORS & HEADERS	º 1 X 24-pin ATX Power Supply connector º 1 X 4-pin 12V Power connector º 1 X 4-pin CPU_FAN connector º 1 X 4-pin SYS_FAN connector º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Speaker header º 1 X USB 3.0 header • Support additional 2 USB ports º 3 X USB 2.0 header • Support additional 6 USB ports º Support EZ charger (gray color) º 1 X S/PDIF out header º 2 X SATA III 6Gb/s connector(s) º 4 X SATA II 3Gb/s connector(s) º 1 X Serial port header (COM) º 1 X Parallel port header (LPT) º 1 X TPM header º 1 X ME_UNLOCK header º 1 X Chassis intrusion header
SYSTEM BIOS	º AMI BIOS with 64 MB SPI Flash ROM º Supports M.I.B III Utility º ACPI & DMI º F7 hot key for boot up devices option º Graphic OC Support º Triple Display º Support ECS EZ BIOS º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Supports PgUp clear CMOS Hotkey º Dual-Monitor function º * Adjustable CPU Voltage º * Memory Voltage Adjustable
FORM FACTOR	º mATX Form Factor º 244mm(W)*220mm(H)
OS Support	º Windows XP 32-bit º Windows XP 64-bit º Windows Vista 32-bit º Windows Vista 64-bit º Windows 7 32-bit º Windows 7 64-bit º Windows 8 32-bit º Windows 8 64-bit
Certifications	º CE/FCC Certification º ErP/EuP Certification º WHQL Certification º WHCK Certification

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.
* Note: IVB means Ivy Bridge ; SNB means Sandy Bridge.

Socket	Family	Processor *	Wattage	Frequency	Cache	Stepping	Since BIOS
LGA1155	Intel Core™ i7	2600 (SNB)	95W	3.40GHz	8MB	D2	06/28/2013
LGA1155	Intel Core™ i7	2600K (SNB)	95W	3.40GHz	8MB	D2	06/28/2013
LGA1155	Intel Core™ i7	2600S (SNB)	65W	2.80GHz	8MB	D2	06/28/2013
LGA1155	Intel Core™ i7	2700K (SNB)	95W	3.50GHz	8MB	D2	06/28/2013
LGA1155	Intel Core™ i7	3770 (IVB)	77W	3.40GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i7	3770K (IVB)	77W	3.50GHz	8MB	E0	06/28/2013
LGA1155	Intel Core™ i7	3770K (IVB)	77W	3.50GHz	8MB	E1	06/28/2013
LGA1155	Intel Core™ i7	3770S (IVB)	65W	3.10GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i5	2300 (SNB)	95W	2.80GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	2310 (SNB)	65W	2.90GHz	6MB	Q0	06/28/2013
LGA1155	Intel Core™ i5	2320 (SNB)	95W	3.00GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	2380P (SNB)	95W	3.10GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	2390T (SNB)	35W	2.70GHz	6MB	Q0	06/28/2013
LGA1155	Intel Core™ i5	2400 (SNB)	95W	3.10GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	2400S (SNB)	65W	2.50GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	2405S (SNB)	65W	2.50GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	2450P (SNB)	95W	3.20GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	2500 (SNB)	95W	3.30GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	2500K (SNB)	95W	3.30GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	2500S (SNB)	65W	2.70GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	2500T (SNB)	45W	2.30GHz	6MB	D2	06/28/2013
LGA1155	Intel Core™ i5	3330 (IVB)	77W	3.00GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i5	3330 (IVB)	77W	3.00GHz	6MB	E1	06/28/2013
LGA1155	Intel Core™ i5	3330S (IVB)	65W	2.70GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i5	3330S (IVB)	65W	2.70GHz	6MB	E1	06/28/2013
LGA1155	Intel Core™ i5	3450 (IVB)	77W	3.10GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i5	3450 (IVB)	77W	3.10GHz	6MB	E1	06/28/2013
LGA1155	Intel Core™ i5	3450S (IVB)	65W	2.80GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i5	3470 (IVB)	77W	3.20GHz	6MB	N0	03/22/2012
LGA1155	Intel Core™ i5	3470S (IVB)	65W	2.90GHz	6MB	N0	04/23/2012
LGA1155	Intel Core™ i5	3470T (IVB)	35W	2.90GHz	3MB	L1	03/22/2012
LGA1155	Intel Core™ i5	3475S (IVB)	65W	2.90GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i5	3550 (IVB)	77W	3.30GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i5	3550 (IVB)	77W	3.30GHz	6MB	E1	06/28/2013
LGA1155	Intel Core™ i5	3550S (IVB)	65W	3.00GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i5	3550S (IVB)	65W	3.00GHz	6MB	E1	06/28/2013
LGA1155	Intel Core™ i5	3570 (IVB)	77W	3.40GHz	6MB	N0	04/23/2012
LGA1155	Intel Core™ i5	3570K (IVB)	77W	3.40GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i5	3570K (IVB)	77W	3.40GHz	6MB	E1	06/28/2013
LGA1155	Intel Core™ i5	3570S (IVB)	65W	3.10GHz	6MB	N0	04/23/2012
LGA1155	Intel Core™ i5	3570T (IVB)	45W	2.30GHz	6MB	E0	06/28/2013
LGA1155	Intel Core™ i3	2100 (SNB)	65W	3.10GHz	3MB	Q0	06/28/2013
LGA1155	Intel Core™ i3	2100T (SNB)	35W	2.50GHz	3MB	Q0	06/28/2013
LGA1155	Intel Core™ i3	2105 (SNB)	65W	3.10GHz	3MB	D2	06/28/2013
LGA1155	Intel Core™ i3	2120 (SNB)	65W	3.30GHz	3MB	Q0	06/28/2013
LGA1155	Intel Core™ i3	2120T (SNB)	35W	2.60GHz	3MB	D2	06/28/2013
LGA1155	Intel Core™ i3	2125 (SNB)	65W	3.30GHz	3MB	Q0	06/28/2013
LGA1155	Intel Core™ i3	2130 (SNB)	65W	3.40GHz	3MB	Q0	06/28/2013
LGA1155	Intel Core™ i3	3210 (IVB)	55W	3.20GHz	3MB	P0	01/04/2013
LGA1155	Intel Core™ i3	3220 (IVB)	55W	3.30GHz	3MB	L1	06/28/2013
LGA1155	Intel Core™ i3	3220T (IVB)	35W	2.80GHz	3MB	L1	03/22/2012
LGA1155	Intel Core™ i3	3225 (IVB)	55W	3.30GHz	3MB	L1	06/28/2013
LGA1155	Intel Core™ i3	3240 (IVB)	55W	3.40GHz	3MB	L1	06/28/2013
LGA1155	Intel Core™ i3	3240T (IVB)	35W	2.90GHz	3MB	L1	03/22/2012
LGA1155	Intel Core™ i3	3245 (IVB)	55W	3.40GHz	3MB	L1	06/28/2013
LGA1155	Intel Core™ i3	3250 (IVB)	55W	3.00GHz	3MB	P0	06/28/2013
LGA1155	Intel Core™ i3	3250T (IVB)	35W	3.00GHz	3MB	P0	06/28/2013
LGA1155	Intel Pentium	G2010 (IVB)	55W	2.80GHz	3MB	P0	01/04/2013
LGA1155	Intel Pentium	G2020 (IVB)	55W	2.90GHz	3MB	P0	01/04/2013
LGA1155	Intel Pentium	G2020T (IVB)	35W	2.50GHz	3MB	P0	01/04/2013
LGA1155	Intel Pentium	G2030 (IVB)	55W	3.00GHz	3MB	P0	06/28/2013
LGA1155	Intel Pentium	G2030T (IVB)	35W	2.60GHz	3MB	P0	06/28/2013
LGA1155	Intel Pentium	G2120T (IVB)	35W	2.70GHz	3MB	P0	06/28/2013
LGA1155	Intel Pentium	G2130 (IVB)	55W	3.20GHz	3MB	P0	01/04/2013
LGA1155	Intel Pentium	G2140 (IVB)	55W	3.30GHz	3MB	P0	06/28/2013
LGA1155	Intel Pentium	G620 (SNB)	65W	2.60GHz	3MB	Q0	06/28/2013
LGA1155	Intel Pentium	G620T (SNB)	35W	2.20GHz	3MB	Q0	06/28/2013
LGA1155	Intel Pentium	G630 (SNB)	65W	2.70GHz	3MB	Q0	06/28/2013
LGA1155	Intel Pentium	G630T (SNB)	35W	2.30GHz	3MB	Q0	06/28/2013
LGA1155	Intel Pentium	G640 (SNB)	65W	2.80GHz	3MB	D2	06/28/2013
LGA1155	Intel Pentium	G640T (SNB)	35W	2.40GHz	3MB	D2	06/28/2013
LGA1155	Intel Pentium	G840 (SNB)	65W	2.80GHz	3MB	Q0	06/28/2013
LGA1155	Intel Pentium	G850 (SNB)	65W	2.90GHz	3MB	Q0	06/28/2013
LGA1155	Intel Pentium	G860 (SNB)	65W	3.00GHz	3MB	Q0	06/28/2013
LGA1155	Intel Pentium	G860T (SNB)	35W	2.60GHz	3MB	D2	06/28/2013
LGA1155	Intel Pentium	G870 (SNB)	65W	3.10GHz	3MB	D2	06/28/2013
LGA1155	Intel Celeron	G1610 (IVB)	55W	2.60GHz	2MB	P0	01/04/2013
LGA1155	Intel Celeron	G1610T (IVB)	35W	2.30GHz	2MB	P0	01/04/2013
LGA1155	Intel Celeron	G1620 (IVB)	55W	2.70GHz	2MB	P0	01/04/2013
LGA1155	Intel Celeron	G440 (SNB)	35W	1.60GHz	1MB	Q0	06/28/2013
LGA1155	Intel Celeron	G460 (SNB)	35W	1.80GHz	1.5MB	Q0	06/28/2013
LGA1155	Intel Celeron	G470 (SNB)	35W	2.00GHz	1.5MB	Q0	06/28/2013
LGA1155	Intel Celeron	G530 (SNB)	65W	2.40GHz	2MB	D2	06/28/2013
LGA1155	Intel Celeron	G530T (SNB)	35W	2.00GHz	2MB	Q0	06/28/2013
LGA1155	Intel Celeron	G540 (SNB)	65W	2.50GHz	2MB	Q0	06/28/2013
LGA1155	Intel Celeron	G540T (SNB)	35W	2.10GHz	2MB	D2	06/28/2013
LGA1155	Intel Celeron	G550 (SNB)	65W	2.60GHz	2MB	D2	06/28/2013
LGA1155	Intel Celeron	G550T	35W	2.20GHz	2MB	D2	04/23/2012
