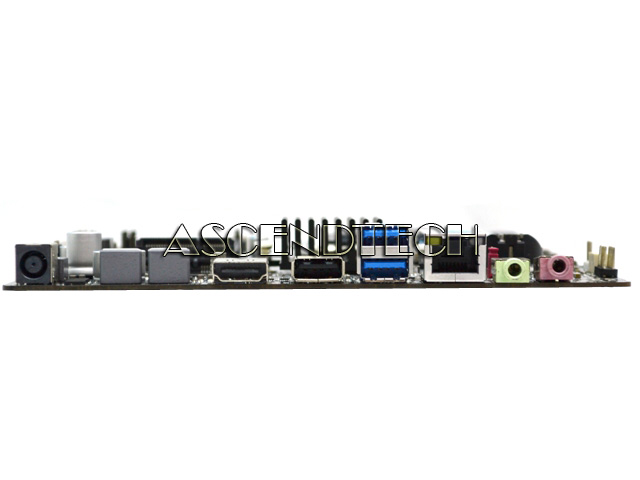

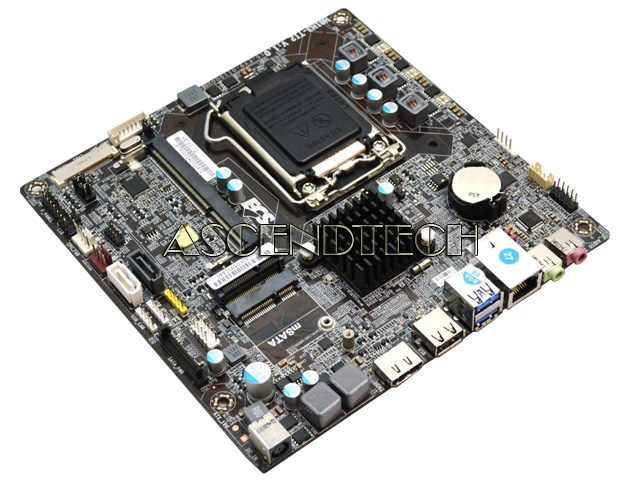

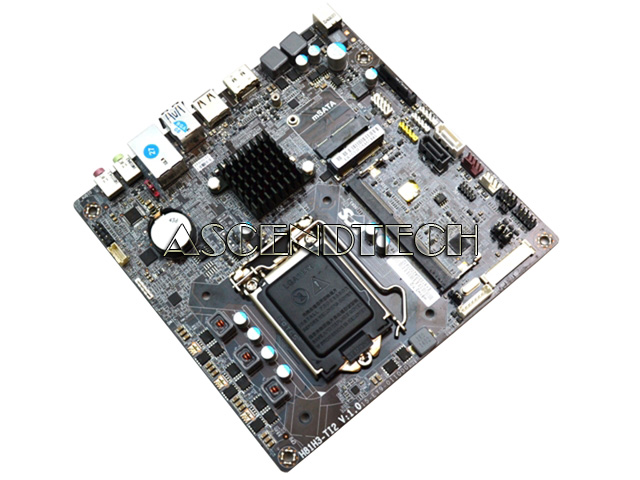

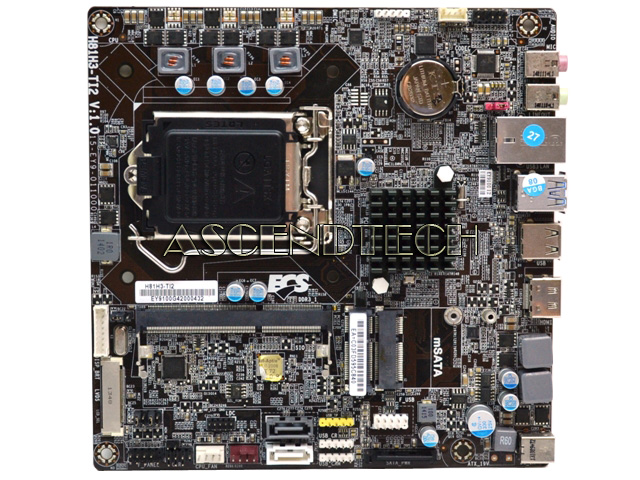

ECS H81H3-TI2 V1.0 Motherboard
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBECH81H3TI2V10
Brand Ecs - Elitegroup
Model H81H3-TI2 V1.0
Category Intel Lga1150 Motherboard
Condition Like New Grade A
Description
ECS H81H3-TI2 V1.0 Intel Chipset H81 Socket LGA1150 DDR3 HDMI SATA 6GB/s USB 3.0 Thin Mini-ITX Motherboard.
Features:
Integrated LVDS for an extra display option
Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system. (Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs)
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment
Microsoft Windows 8 Certified
Intel 22nm 4th generation Multi-Core CPU support
Specifications:
| CPU Socket Type | LGA1150 |
| CPU Type | Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) |
| Chipset | Intel H81 |
| Number of Memory Slots | x1 204-Pin SO-DIMM |
| Memory Standard | DDR3 1600 |
| Maximum Memory Supported | 8GB |
| Mini Card Slots | x1 Mini PCI-Express x1 (Mini SATA Supported) x1 Mini PCI-Express x1 for Wi-Fi / Bluetooth modules |
| SATA 3GB/s | x1 SATA 3GB/s |
| SATA 6GB/s | x1 SATA 6GB/s |
| Onboard Video Chipset | Supported only by CPU with integrated graphics |
| Audio Chipset | Realtek ALC662 |
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111G |
| Max LAN Speed | 10/100/10000 MBps |
| HDMI | x1 HDMI |
| USB 3.0 | x2 USB 3.0 |
| USB 1.1/2.0 | x1 USB 2.0 |
| Audio Ports | 2 Ports |
| Onboard USB | x5 USB 2.0 |
| Other Connectors | x1 4-pin CPU_FAN connector x1 4-pin SYS_FAN connector x1 Front panel audio header x1 Speaker header x1 CLR_CMOS header x1 CIR header x1 LVDS connector x1 SATA power connector |
| Form Factor | Thin Mini-ITX |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 24-Pin |
