ECS HDC-I2/E-350D V2.0 AMD A45 HDMI MB

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

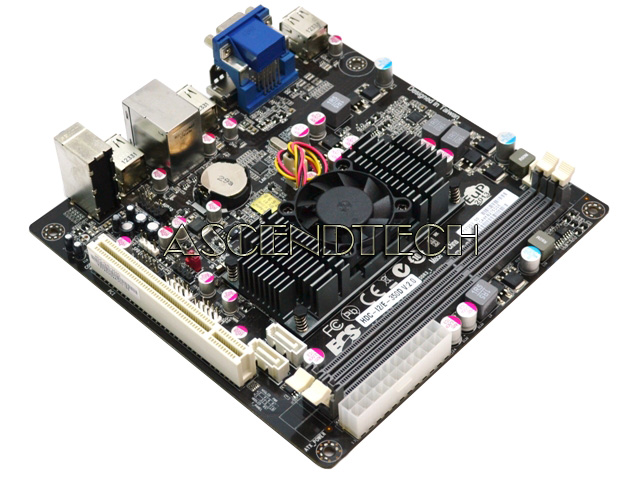

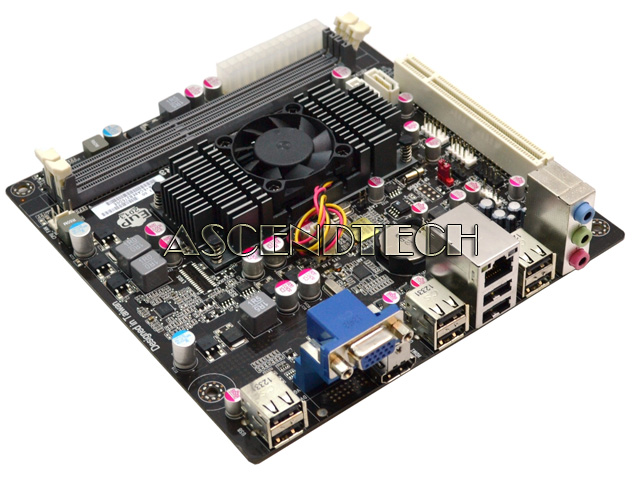

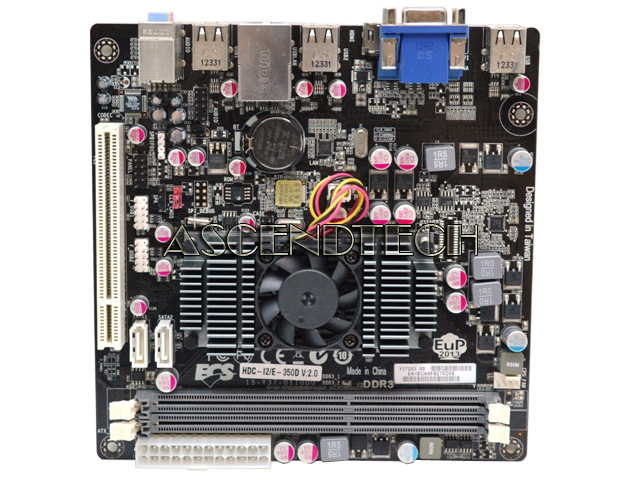

Ecs Hdc-I2/E-350D V2.0 Amd A45 Hdmi Mb. Model: Hdc-I2/E-350D Hdmi No I/O
  Enlarge
Ecs Hdc-I2/E-350D V2.0 Amd A45 Hdmi Mb. Model: Hdc-I2/E-350D Hdmi No I/O
Ecs Hdc-I2/E-350D V2.0 Amd A45 Hdmi Mb. Model: Hdc-I2/E-350D Hdmi No I/O
Ecs Hdc-I2/E-350D V2.0 Amd A45 Hdmi Mb. Model: Hdc-I2/E-350D Hdmi No I/O
Ecs Hdc-I2/E-350D V2.0 Amd A45 Hdmi Mb. Model: Hdc-I2/E-350D Hdmi No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBHDCI2E350DHDN
Brand Ecs - Elitegroup
Model HDC-I2/E-350D HDMI No I/O
Category Motherboard & Cpu - Ready To Go Combos

Description

ECS HDC-I2/E-350D V2.0 AMD E-350D APU AMD A45 FCH VGA HDMI Mini ITX Motherboard/CPU Combo. ECS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.





Features:

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Dual Display design for multiple output support
Windows 8 Workable support
Supports DirectX® 11 to enhance graphical performance
Supports AMD UVD 3.0 Engine





Specifications:

CPU

º Onboard AMD® E-350D Dual-Core processors
º Solid Capacitor for CPU side

CHIPSET

º AMD® A45 FCH

GRAPHICS

º AMD Radeon™ HD6310 graphics
º Supports DirectX® 11
º Supports AMD UVD 3.0

MEMORY

º Single-channel DDR3 Memory architecture
º Supports DDR3 1066/800 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 8 GB*
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 X PCI slot(s)

Storage

º Support by AMD® A45 Express Chipset
    • 2 X Serial ATAII 3Gb/s
º Supports NCQ, AHCI and "Hot Plug" functions

Audio

º 6-Channel HD audio CODEC
º VIA 1705
‧VIA® VT1705 6-channel High Definition audio CODEC
‧Compliant with HD audio specification for a whole new immersive surround sound experience
‧3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
‧Low Power Consumption
‧Capability for “full rate” BluRay / DVD / HD DVD support.

LAN

º Atheros AR8151 Gigabit Fast Ethernet Controller
º (Atheros AR8152 10/100Mbps Fast Ethernet Controller optional)
º Wake-On-LAN

USB

º Support by AMD A45 Express Chipset
    • 12 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 8 port(s)
      Onboard 4 port(s)

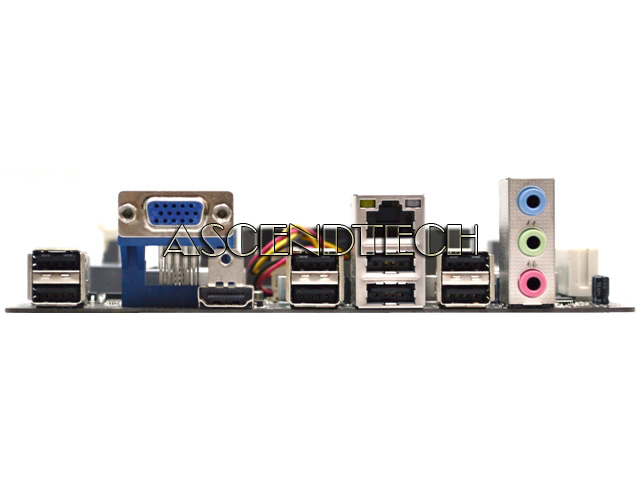

REAR PANEL I/O

º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X D-Sub (VGA) port
º 1 X HDMI port
º 8 X USB2.0 ports

CONNECTORS & HEADERS

º 1 X 4-pin CPU_FAN connector
º 1 X Clear_CMOS button
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Speaker header
º 2 X USB 2.0 header
    • Support additional 4 USB ports
º 1 X S/PDIF out header
º 2 X SATA II 3Gb/s connector(s)
º 1 X Chassis intrusion header

SYSTEM BIOS

º AMI BIOS with 32 MB SPI Flash ROM
º Dual Display
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS

FORM FACTOR

º Mini ITX Form Factor
º  170mm(W)*170mm(H)

OS Support

º Windows XP 32-bit
º Windows XP 64-bit
º Windows Vista 32-bit
º Windows Vista 64-bit
º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 32-bit
º Windows 8 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification
