ECS HDC-M V1.0 AMD A45 FCH Micro ATX Motherboard.

Features:

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system

ECS Durathon Technology ensure the stability, reliability and performance of system.

ESD Protection prevents computers from electrostatic discharge damage to enhance
its durability and lifespan

Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language
environment

ECS MIB III - A friendly interface for overclocking

Dual Display design for multiple output support

Integrated Printer (LPT) port / header to expand functionality

Microsoft Windows 8 Certified

Supports DirectX^® 11 to enhance graphical performance

Supports AMD UVD 3.0 Engine

Supports AMD Dual Graphics Technology

Free Bundle: CyberLink Media Suite

ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF

Specifications:

CPU	º Onboard AMD^® C-60 Dual-Core processors º Solid Capacitor for CPU side
CHIPSET	º AMD^® A45 FCH
GRAPHICS	º AMD Radeon™ HD6290 graphics º Supports DirectX^® 11 º Supports AMD UVD 3.0 º Supports AMD Dual Graphics
MEMORY	º Single-channel DDR3 Memory architecture º Supports DDR3 1333/1066 non-ECC, Un-buffered SDRAM Memory º 2 X 240-pin DDR3 DIMM socket º Support up to 8 GB* º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation º Note:Please refer to the latest Memory support list for details
EXPANSION SLOT	º 1 X PCI Express X16 Gen 2.0 slot(s) º 2 X PCI slot(s) º *PCI Express X16 run@ 4
Storage	º Support by AMD® A45 Express Chipset • 4 X Serial ATAII 3Gb/s º Supports NCQ, AHCI and "Hot Plug" functions
Audio	º 6-Channel HD audio CODEC º Realtek ALC662 ‧Realtek ALC662 6-channel High Definition audio CODEC ‧Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs ‧Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution ‧Emulation of 26 sound environments to enhance gaming experience ‧Voice Cancellation and Key Shifting in Karaoke mode ‧Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN	º Realtek 8111E Gigabit Fast Ethernet Controller º (Realtek 8105E 10/100Mbps Fast Ethernet Controller optional) º Wake-On-LAN
USB	º Support by AMD A45 Express Chipset • 12 X USB2.0 port(s) Up to 480 Mb/s Back Panel 6 port(s) Onboard 6 port(s)
REAR PANEL I/O	º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 port º 1 X D-Sub (VGA) port(s) º 1 X HDMI port(s) º 6 X USB2.0 port(s)
CONNECTORS & HEADERS	º 1 X 24-pin ATX Power Supply connector º 1 X 4-pin 12V Power connector º 1 X 4-pin CPU_FAN connector º 1 X 3-pin SYS_FAN connector º 1 X Clear_CMOS button º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Speaker header º 3 X USB 2.0 header • Support additional 6 USB ports º 4 X SATA II 3Gb/s connector(s) º 1 X Serial port header (COM) º 1 X Parallel port header (LPT) º 1 X TPM header º 1 X Chassis intrusion header
SYSTEM BIOS	º AMI BIOS with 32 MB SPI Flash ROM º Supports M.I.B III Utility º Supports ACPI 3.0 & DMI º F7 hot key for boot up devices option º Dual Display º Support GUI UEFI BIOS º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Dual-Monitor function
FORM FACTOR	º mATX Form Factor º 225mm(W)*170mm(H)
OS Support	º Windows XP 32-bit º Windows XP 64-bit º Windows Vista 32-bit º Windows Vista 64-bit º Windows 7 32-bit º Windows 7 64-bit º Windows 8 32-bit º Windows 8 64-bit
Certifications	º CE/FCC Certification º ErP/EuP Certification º WHQL Certification
Bundled Software	º ECS Intelligent EZ Utility : eBLU, eDLU, eOC, eSF º Free Bundle: CyberLink Media Suite

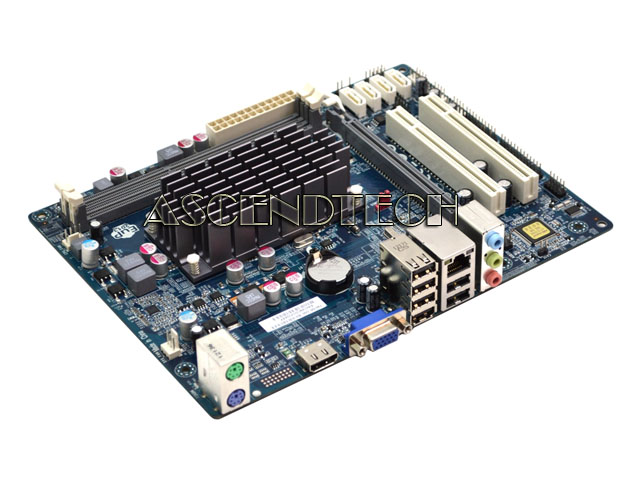

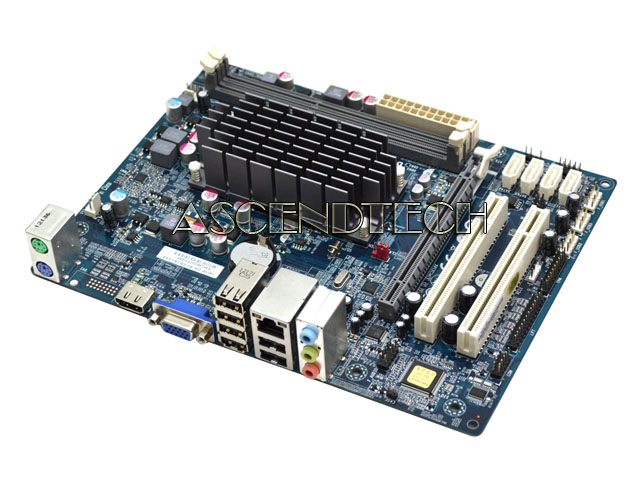

ECS HDC-M V1.0 Micro ATX Motherboard

Description
