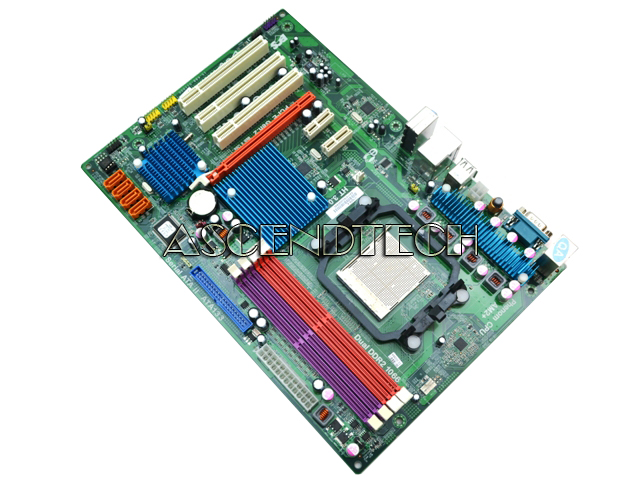

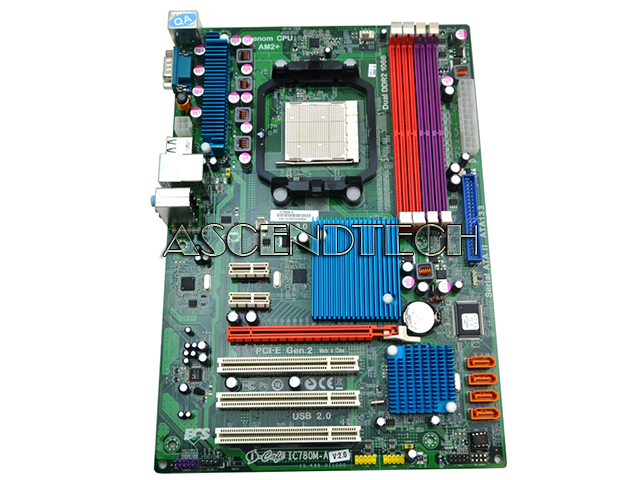

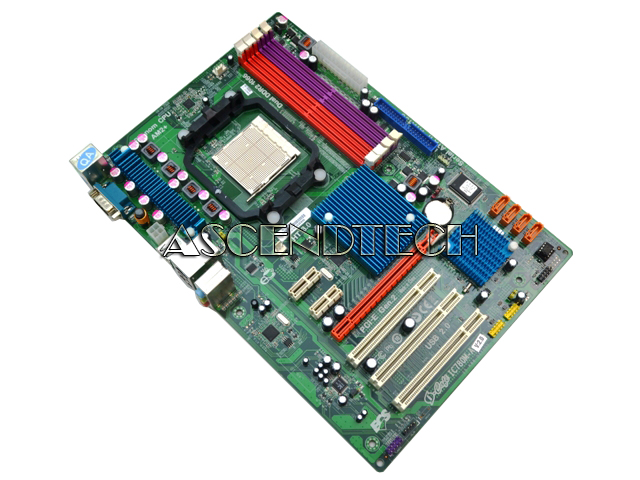

ECS IC780M-A V2.0 AM2+ ATX Motherboard

ECS IC780M-A V:2.0 AMD Socket AM2+ DDR2 USB 2.0 ATX Motherboard.

ECS Model Number: IC780M-A V:2.0

Please Note: This is an OEM replacement motherboard and does not come with an I/O shield/backplate.

Specifications:

Model Number: IC780M-A V:2.0
Processor: AMD PhenomII/Phenom, AMD Athlon 64 FX/Athlon 64 X2 Dual Core/Athlon 64/Sempron, Supports 125W Phenom II X6 Processors
Note: This board supports CPUs up to 125W TDP only; you can refer to the AMD website to check your CPU.
Socket: AM2+
Chipset: AMD 770 & AMD SB710, North Bridge: AMD 770, South Bridge: AMD SB710
Memory: Dual-channel DDR2 Memory Architecture, 4 x 240-pin DDR2 DIMM Socket Support up to 32GB RAM*, Support DDR2 1066/800/667/533/400 DDR2 SDRAM
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Expansion Slots: 1 x PCI Express x16 Slot, 2 x PCI Express x1 Slots, 3 x PCI Slots
Storage: Support by AMD SB710, 2 x Ultra DMA133/100/66 Devices, 4 x Serial ATA 3.0Gb/s Devices, RAID 0/1/10 Configuration
Audio: Realtek ALC662 6-channel Audio, Compliant with HD Audio Specification
LAN: RealTek 8111C Gigabit Fast Ethernet NIC

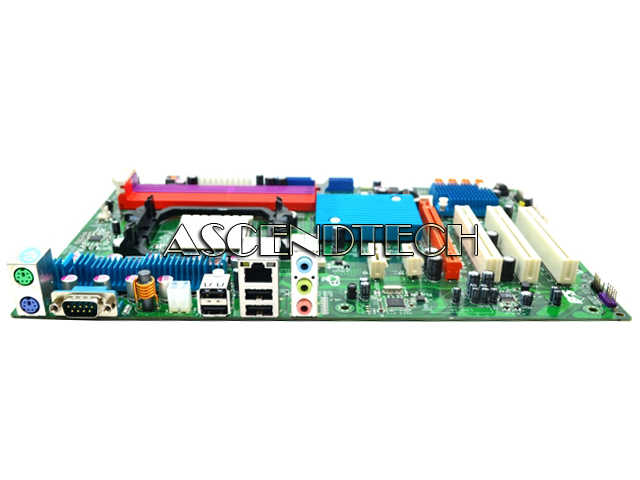

Back Panel I/O Ports:
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
4 x USB 2.0 Ports
1 x Gigabit Ethernet Port
3 x Audio Ports (1x Line in, 2x Line out)
1 x COM Port
Internal I/O Connectors:
1 x 24-pin ATX Power Supply Connector
1 x 4-pin 12V Connector
1 x CPU_FAN Connector
1 x IDE Connector
1 x SYS Fan Header
4 x Serial ATA Connectors
1 x Speaker Header
1 x Front Panel Switch/LED Header
1 x Front Panel Audio Header
2 x USB 2.0 Headers Support Additional 4 x USB 2.0 Ports
1 x S/PDIF-out Header
BIOS Features: Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI, AMI BIOS with 8Mb SPI Flash ROM, Supports ACPI 3.0 & DMI, Supports Non Disk Utility, Supports ECS M.I.B II Utility
Form Factor: ATX, 305mm x 210mm
