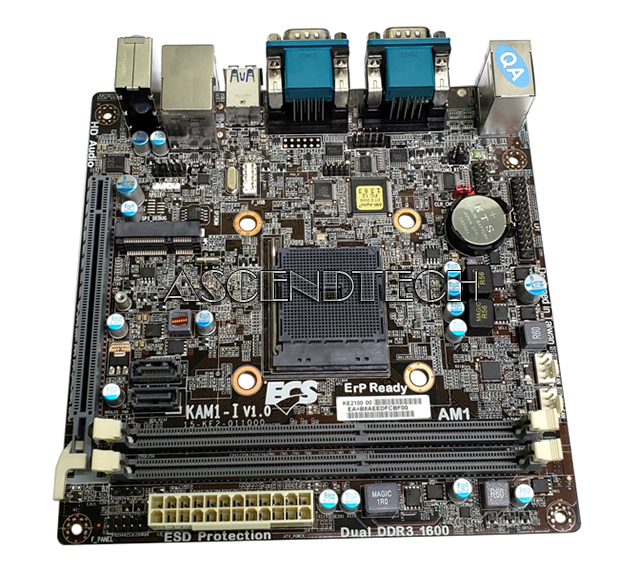

ECS KAM1-I V1.0 AMD AM1 Motherboard

ECS KAM1-I V1.0 AMD KABINI Chipset AMD AM1 Socket SATA3 6GB/S DDR3 Mini ITX Motherboard.

ECS Model Number: KAM1-I V1.0 (Dual Serial)

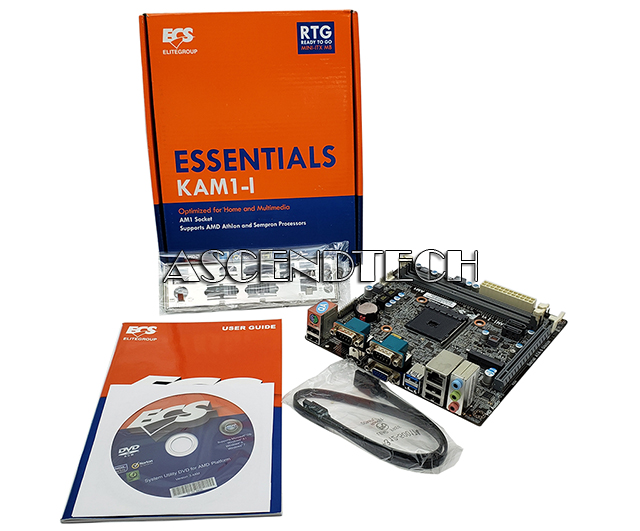

Includes: I/O Shield, SATA Cable, Manual, and System Utility DVD







Features:

Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
Microsoft Windows 8 Certified
Microsoft Windows 8.1 Certified
Supports DirectX 11.1 to enhance graphical performance
ECS Intelligent EZ Utility: eBLU, eDLU, eSF

CPU	AMD AM1 Socket Type
	Supports AMD  Athlon & Sempron
	100% Solid capacitor design
	Please refer to CPU support list for details
MEMORY	Single-channel DDR3 Memory architecture
	Supports DDR3 1600 non-ECC, Un-buffered SDRAM Memory
	2 X 240-pin DDR3 DIMM socket
	Support up to 16 GB*
	Note:Please refer to the latest Memory support list for details
EXPANSION SLOT	1 X PCI Express X16 Gen 2.0 slot(s)
	1 X Mini PCI Express X1 slot(s)
	Mini PCI Express X1 slot(s) doesn’t support Mini SATA
STORAGE	2 X Serial ATAIII 6Gb/s
AUIDO	6-Channel HD audio CODEC
	Realtek ALC662 6-channel High Definition audio CODEC
	Realtek ALC662
	Realtek ALC662 6-channel High Definition audio CODEC
	Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs
	Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution
	Emulation of 26 sound environments to enhance gaming experience
	Voice Cancellation and Key Shifting in Karaoke mode
	Compatible with Direct Sound 3D, A3D, I3DL2
LAN	Realtek 8111G Gigabit Fast Ethernet Controller
	Wake-On-LAN
USB	2 X USB3.1 Gen1 port(s) up to 5Gb/s
	6 X USB2.0 port(s) Up to 480 Mb/s
	Back Panel 4 port(s)
	Onboard 2 port(s)

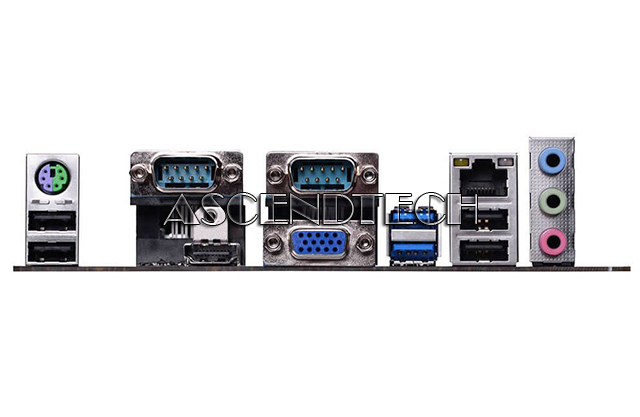

REAR PANEL I/O	1 X PS/2 Keyboard & PS/2 mouse connectors
	2 X Serial port (COM)
	1 X Audio port (Line Out/Line In/Mic In)
	1 X RJ-45 port
	1 X HDMI port(s)
	1 X DVI-I port(s) (optional)
	1 X D-Sub (VGA) port(s)
	2 X USB3.1 Gen1 port(s)
	4 X USB2.0 port(s)
CONNECTORS & HEADERS	1 X 24-pin ATX Power Supply connector
	1 X 4-pin CPU_FAN connector with smart fan
	1 X 4-pin SYS_FAN connector
	1 X Clear_CMOS button
	1 X Front panel audio header
	1 X Onboard Buzzer
	1 X USB 2.0 header
	Support additional 2 USB ports
	1 X S/PDIF out header
	2 X SATA III 6Gb/s connector(s)
	1 X CLR_CMOS header
	2 X Serial port header (COM)
	1 X Parallel port header (LPT)
	1 X Chassis intrusion header
	1 X VGA header
SYSTEM BIOS	AMI BIOS with 32 MB SPI Flash ROM
	Dual Display
	Support GUI UEFI BIOS
	Multi-Language BIOS
FORM FACTOR	Mini ITX Form Factor
	170mm(W)*170mm(H)

Socket	Family	Processor	P/N Number	Wattage	Frequency	L2 Cache	L3 Cache	Stepping	Since BIOS
Socket AM1	AMD Athlon	5150	AD5150JAH44HM	25W	1.60GHz	2MB	N/A	C1	5/28/2014
Socket AM1	AMD Athlon	5350	AD5350JAH44HM	25W	2.05GHz	2MB	N/A	C1	5/28/2014
Socket AM1	AMD Athlon	5370	AD5370JAH44HM	25W	2.20GHz	2MB	N/A	A1	6/25/2014
Socket AM1	AMD Sempron	2650	ED2650JAH23HM	25W	1.45GHz	1MB	N/A	C1	5/28/2014
Socket AM1	AMD Sempron	3850	ED3850JAH44HM	25W	1.30GHz	2MB	N/A	C1	5/28/2014
