ECS KBN-I/2100 V1.1 Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Ecs Kbn-I/2100 V1.1 Motherboard No I/O
  Enlarge
Ecs Kbn-I/2100 V1.1 Motherboard No I/O
Ecs Kbn-I/2100 V1.1 Motherboard No I/O
Ecs Kbn-I/2100 V1.1 Motherboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSKBNI210012
Brand Ecs - Elitegroup
Model KBN-I/2100 V1.1
Category Motherboard & Cpu - Ready To Go Combos

Description

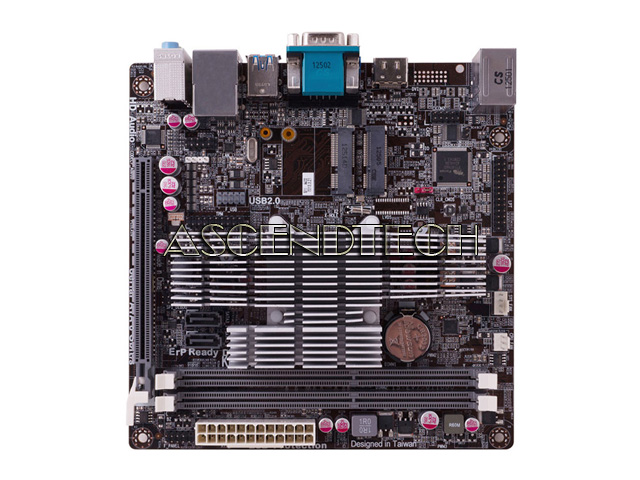

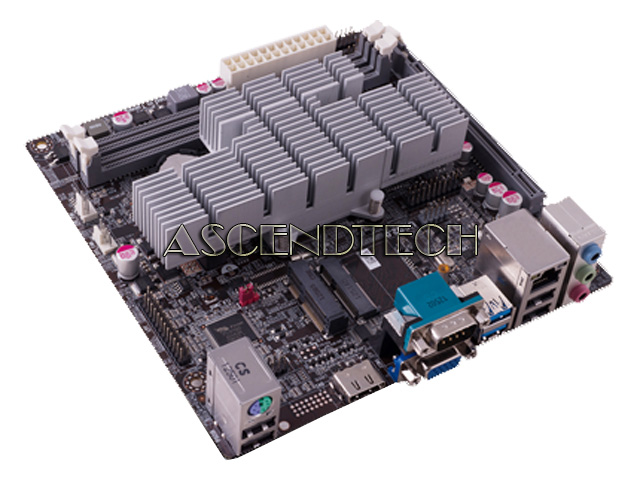

ECS KBN-I/2100 V1.1 AMD E1-2100 AMD Kabini DDR3 Mini ITX Motherboard.





Features:

  • Applied 100% Solid capacitor design to maximize component reliability.
  • ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan.
  • Microsoft Windows 8 Certified
  • ECS Intelligent EZ Utility : eBLU, eDLU, eSF





Specifications:

CPU

º Onboard AMD® E1-2100 Dual Core(Kabini) processors
º High Performance AMD HyperTransport 2.0 CPU Interface
º 100% Solid capacitor design
º Please refer to CPU support list for details

CHIPSET

º AMD® Kabini (SOC)

GRAPHICS

º AMD Radeon™ HD 8210 graphics
º Supports DirectX® 11

MEMORY

º Single-channelDDR3 Memory architecture
º Supports 1333 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 32 GB*
º * Due to AMD CPU spec limitation, please refer to Memory QVL for more information.

EXPANSION SLOT

º 1 X PCI Express X16 Gen 2.0 slot(s)
º 2 X Mini PCI Express X1 slot(s)

STORAGE

º Support by AMD® Kabini Express Chipset
   • 2 X Serial ATAIII 6Gb/s

AUDIO

º 6-Channel HD audio CODEC
º VIA 1705
   -VIA® VT1705 6-channel High Definition audio CODEC
   -Compliant with HD audio specification for a whole new immersive surround sound experience
   -3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
   -Low Power Consumption
   -Capability for “full rate” BluRay / DVD / HD DVD support.

LAN

º RTL8111E Gigabit Fast Ethernet Controller
º (RTL8106E Gigabit Fast Ethernet Controller optional)
º Wake-On-LAN

USB

º Support by AMD® Kabini (SOC) Express Chipset
   • 2 X USB3.0 port(s) up to 5Gb/s
     Back Panel 2 port(s)
   • 6 X USB2.0 port(s) Up to 480 Mb/s
     Back Panel 4 port(s)
     Onboard 2 port(s)

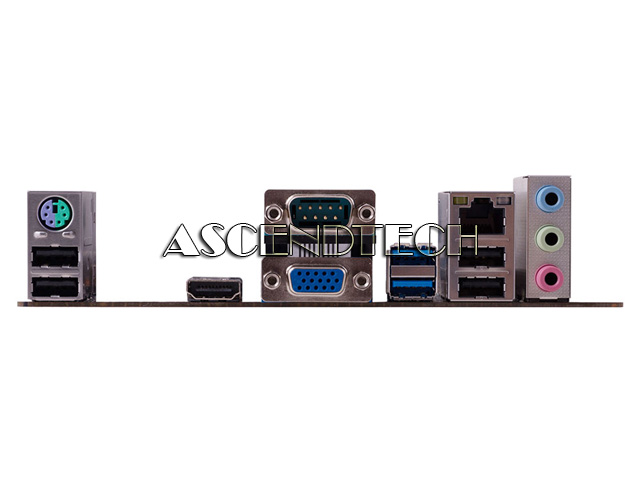

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Serial port (COM)
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X HDMI port(s)
º 1 X DVI-D port(s) (optional)
º 1 X D-Sub (VGA) port(s)
º 2 X USB3.0 port(s)
º 4 X USB2.0 port(s)

INTERNAL I/O CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 3-pin CPU_FAN connector with smart fan
º 1 X 4-pin SYS_FAN connector
º 1 X Front panel audio header
º 1 X Onboard Buzzer
º 1 X USB 2.0 header
º 1 X S/PDIF out header
º 2 X SATA III 6Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X Serial port header (COM)
º 1 X Parallel port header (LPT)
º 1 X TPM header
º 1 X Chassis intrusion header
º 1 X LVDS connector (optional)

SYSTEM BIOS

º AMI BIOS with 32 MB SPI Flash ROM
º Supports M.I.B III Utility
º Dual Display
º Support GUI UEFI BIOS

FORM FACTOR

º Mini ITX Form Factor

OS SUPPORT

º Windows Vista 32-bit
º Windows Vista 64-bit
º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 32-bit
º Windows 8 64-bit





CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.


Socket

Family

Processor

P/N Number

Wattage

Frequency

L2 Cache

L3 Cache

Stepping

Since BIOS

Socket FT3

AMD E1-2100 Series

2100

EM2100ICJ23HM

9W

1.00GHz

1MB

N/A

A1

04/01/2013

Socket FT3

AMD A6-5200 Series

5200

AM5200IAJ44HM

25W *

2.00GHz

2MB

N/A

A1

04/01/2013

Socket FT3

AMD A4-5000 Series

5000

AM5000IBJ44HM

15W *

1.50GHz

2MB

N/A

A1

04/01/2013
