ECS LGA775 Micro ATX Motherboard No IO

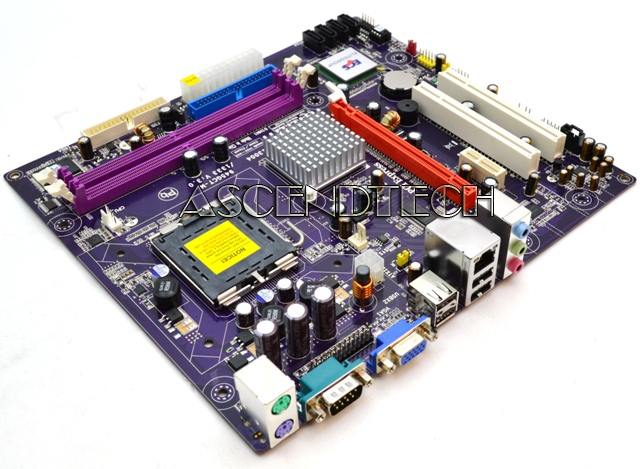

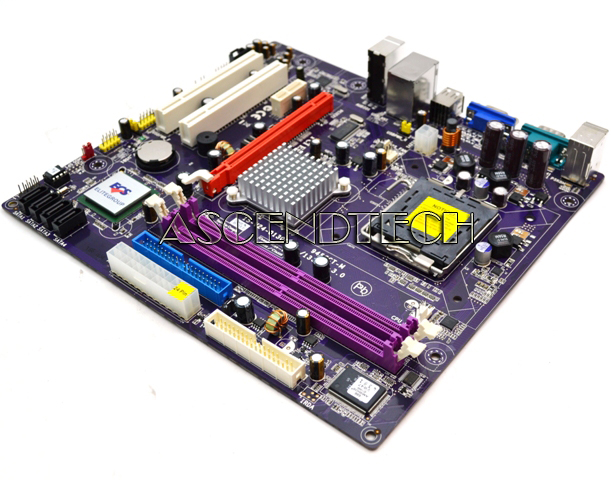

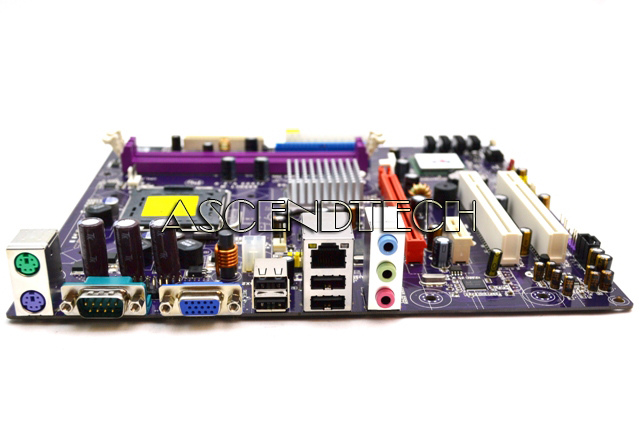

ECS Elitegroup 945GCT-M/1333 V3.0 LGA775 Intel945GC Micro ATX Intel Motherboard NO I/O Shield. ECS 945GCT-M/1333 V3.0 features Intel 945GC and ICH7 chipsets, and is ready to support Intel FSB1333 MHz processors. With terrific function and competitive price, ECS 945GCT-M/1333 v3.0 provides increditable performance.

Manufacturer: ECS Elitegroup
Part Number: 945GCT-M/1333
Compatible Part Number: 15-V24-013004 945GCTM

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.



Specifications:


CPU Socket Type: LGA 775
CPU Type: Core 2 Duo / Pentium D / Celeron D
FSB: 1333*/1066/800/533 MHz
Chipset: Intel 945GC
Number of Memory Slots: 2×240pin
Memory Standard: DDR2 667
Maximum Memory Supported: 2GB
Channel Supported: Dual Channel

PCI Express x16: 1
PCI Express x1: 1
PCI Slots: 2
PATA: 1 x ATA100 2 Dev. Max
SATA 3Gb/s: 4

Onboard Video Chipset: Intel GMA 950
Audio Chipset: IDT 92HD202
Audio Channels: 6 Channels

LAN Chipset: Realtek 8101E
Max LAN Speed: 10/100Mbps
PS/2: 2
COM: 1
Video Ports: D-Sub
USB 1.1/2.0: 4 x USB 2.0
Audio Ports: 3 Ports
Onboard USB: 4 x USB 2.0
