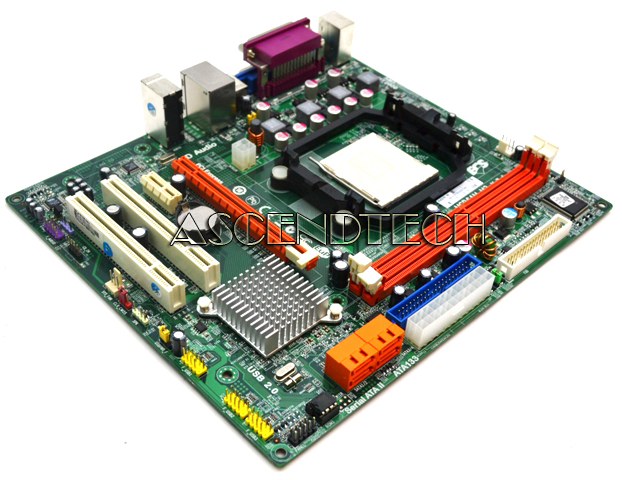

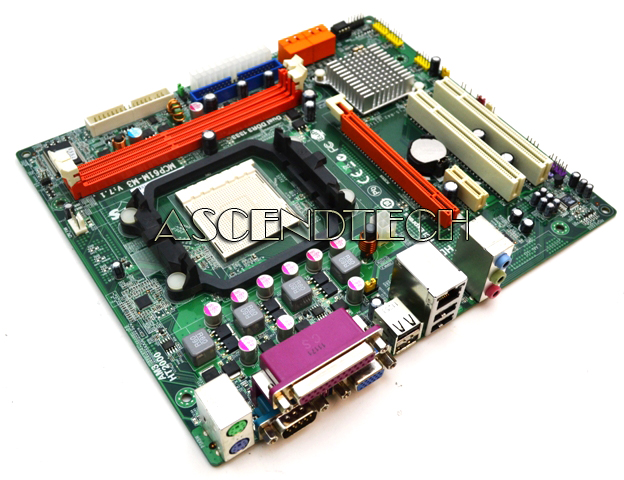

ECS MCP61M-M3 V7.1 AM3 AMD Motherboard

CPU

º Supports AMD^® AM3 socket for AMD^® Phenom™ II processors
º High Performance AMD HyperTransport 3.0 CPU Interface
º Please refer to CPU support list for details

CHIPSET

º NVIDIA GeForce 6150SE/nForce 430

MEMORY

º Dual-channel DDR3 Memory architecture
º Supports DDR3 1333/1066/800 non-ECC, Un-buffered SDRAM Memory
º 2 X 240-pin DDR3 DIMM socket
º Support up to 16 GB*
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 X PCI Express X16 Gen 2.0 slot(s)
º 1 X PCI Express X 1 Gen 2.0 slot(s)
º 2 X PCI slot(s)

Storage

º Support by NVIDIA GeForce 6150SE/nforce 430 Express Chipset
    • 4 X Serial ATAII 3Gb/s
    • 2 X Ultra DMA 133/100/66

Audio

º VIA 1705
‧VIA^® VT1705 6-channel High Definition audio CODEC
‧Compliant with HD audio specification for a whole new immersive surround sound experience
‧3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR
‧Low Power Consumption
‧Capability for “full rate” BluRay / DVD / HD DVD support.

LAN

º Realtek 8201EL-GR 10/100Mbps Fast Ethernet Controller
º (Realtek 8211CL-GR Gigabit Fast Ethernet Controller optional)

USB

º Support by NVIDIA GeForce 6150SE/nforce 430 Express Chipset
    • 10 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 4 port(s)
      Onboard 6 port(s)

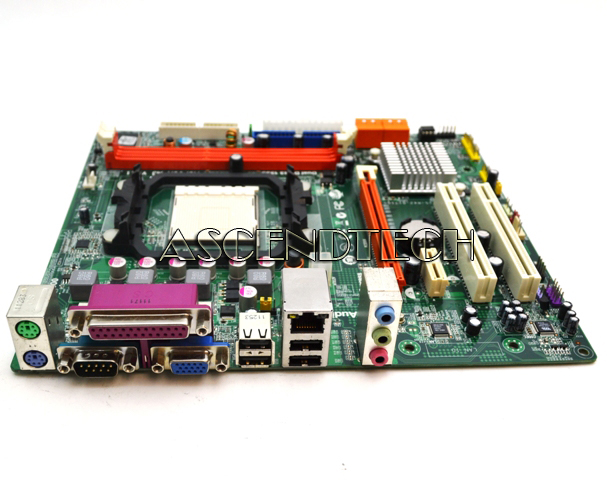

REAR PANEL I/O

º 1 X PS/2 Keyboard & PS/2 mouse connectors
º 1 X Serial port (COM)
º 1 X Parallel port (LPT) (optional)
º 1 X Audio port (Line Out/Line In/Mic In)
º 1 X RJ-45 port
º 1 X D-Sub (VGA) port(s)
º 4 X USB2.0 port(s)

CONNECTORS & HEADERS

º 1 X 24-pin ATX Power Supply connector
º 1 X 4-pin 12V Power connector
º 1 X 4-pin CPU_FAN connector
º 1 X 3-pin SYS_FAN connector
º 1 X IDE connector
º 1 X FDD connector (supports one 360K~2.88MB FDD)
º 1 X Front panel audio header
º 1 X Speaker header
º 3 X USB 3.0 header
    • Support additional 6 USB ports
º 1 X S/PDIF out header
º 4 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X IR header (optional)
º 1 X CD in header

SYSTEM BIOS

º AMI BIOS with 8 MB SPI Flash ROM
º ACPI & DMI
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot

FORM FACTOR

º mATX Form Factor
º 244 mm(W) X 214 mm(H)

OS Support

º Windows XP 32-bit
º Windows XP 64-bit
º Windows Vista 32-bit
º Windows Vista 64-bit
º Windows 7 32-bit
º Windows 7 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHQL Certification

Socket

Family

Processor

P/N Number

Wattage

Frequency

L2 Cache

L3 Cache

Stepping

Since BIOS

Socket AM3

AMD Phenom™ II X6 Six-Core

1035T

HDT35TWFK6DGR

95W

2.60GHz

512KB x6

6MB

E0

11/03/2010

Socket AM3

AMD Phenom™ II X6 Six-Core

1035T

HDT35TWFK6DGR

95W

2.60GHz

512KB x6

N/A

E0

11/03/2010

Socket AM3

AMD Phenom™ II X6 Six-Core

1045T

HDT45TWFK6DGR

95W

2.70GHz

512KB x6

6MB

E0

11/03/2010

Socket AM3

AMD Phenom™ II X6 Six-Core

1045T

HDT45TWFK6DGR

95W

2.70GHz

512KB x6

N/A

E0

11/03/2010

Socket AM3

AMD Phenom™ II X6 Six-Core

1055T

HDT55TWFK6DGR

95W

2.80GHz

512KB x6

6MB

E0

11/03/2010

Socket AM3

AMD Phenom™ II X6 Six-Core

1055T

HDT55TWFK6DGR

95W

2.80GHz

512KB x6

N/A

E0

11/03/2010

Socket AM3

AMD Phenom™ II X6 Six-Core

1065T

HDT65TWFK6DGR

95W

2.90GHz

512KB x6

N/A

E0

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

805

HDX805WFK4FGI

95W

2.50GHz

512KB x4

4MB

C2

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

810

HDX810WFK4FGI

95W

2.60GHz

512KB x4

4MB

C2

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

820

HDX820WFK4FGI

95W

2.80GHz

512KB x4

4MB

C2

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

840

HDX840WFK42GM

95W

3.20GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

840T

HD840TWFK4DGR

95W

2.90GHz

512KB x4

6MB

E0

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

850

HDX850WFK42GM

95W

3.30GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

900e

HD900EOCK4DGI

65W

2.40GHz

512KB x4

6MB

C2

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

900e

HD900EOCK4DGI

65W

2.40GHz

512KB x4

N/A

C2

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

905e

HD905EOCK4DGI

65W

2.50GHz

512KB x4

6MB

C2

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

905e

HD905EOCK4DGM

65W

2.50GHz

512KB x4

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

910

HDX910WFK4DGI

95W

2.60GHz

512KB x4

6MB

C2

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

910e

HD910EOCK4DGM

65W

2.60GHz

512KB x4

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

925

HDX925WFK4DGI

95W

2.80GHz

512KB x4

6MB

C2

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

945

HDX945WFK4DGM

95W

3.00GHz

512KB x4

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

955

HDX955WFK4DGM

95W

3.20GHz

512KB x4

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

960

HDX960WFK4DGM

95W

3.30GHz

512KB x4

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X4 Quad-Core

960T

HD96ZTWFK4DGR

95W

3.00GHz

512KB x4

N/A

E0

11/03/2010

Socket AM3

AMD Phenom™ II Quad-Core

925

HDX925WFK4DGM

95W

2.80GHz

512KB x4

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X3 Triple-Core

700e

HD700EOCK3DGI

65W

2.40GHz

512KB x3

6MB

C2

11/03/2010

Socket AM3

AMD Phenom™ II X3 Triple-Core

700e

HD700EOCK3DGI

65W

2.40GHz

512KB x3

N/A

C2

11/03/2010

Socket AM3

AMD Phenom™ II X3 Triple-Core

705e

HD705EOCK3DGI

65W

2.50GHz

512KB x3

N/A

C2

11/03/2010

Socket AM3

AMD Phenom™ II X3 Triple-Core

710

HDX710WFK3DGI

95W

2.60GHz

512KB x3

N/A

C2

11/03/2010

Socket AM3

AMD Phenom™ II X3 Triple-Core

720 (BE)

HDZ720WFK3DGI

95W

2.80GHz

512KB x3

N/A

C2

11/03/2010

Socket AM3

AMD Phenom™ II X2 Dual-Core

545

HDX545WFK2DGI

95W

3.00GHz

512KB x2

6MB

C2

11/03/2010

Socket AM3

AMD Phenom™ II X2 Dual-Core

545

HDX545WFK2DGM

95W

3.00GHz

512KB x2

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X2 Dual-Core

545

HDX545WFK2DGI

95W

3.00GHz

512KB x2

N/A

C2

11/03/2010

Socket AM3

AMD Phenom™ II X2 Dual-Core

550

HDZ550WFK2DGI

95W

3.10GHz

512KB x2

6MB

C2

11/03/2010

Socket AM3

AMD Phenom™ II X2 Dual-Core

550

HDX550WFK2DGM

95W

3.10GHz

512KB x2

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X2 Dual-Core

555

HDZ555WFK2DGM

95W

3.20GHz

512KB x2

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X2 Dual-Core

560

HDZ560WFK2DGM

95W

3.30GHz

512KB x2

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X2 Dual-Core

565

HDZ565WFK2DGM

95W

3.40GHz

512KB x2

6MB

C3

11/03/2010

Socket AM3

AMD Phenom™ II X2 Dual-Core

570

HDZ570WFK2DGM

95W

3.50GHz

512KB x2

6MB

C3

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

600e

AD600EHDK42GI

45W

2.20GHz

512KB x4

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

605e

AD605EHDK42GI

45W

2.30GHz

512KB x4

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

605e

AD605EHDK42GM

45W

2.30GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

610e

AD610EHDK42GM

45W

2.40GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

615e

AD615EHDK42GM

45W

2.50GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

620

ADX620WFK42GI

95W

2.60GHz

512KB x4

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

630

ADX630WFK42GI

95W

2.80GHz

512KB x4

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

630

ADX630WFK42GM

95W

2.80GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

635

ADX635WFK42GI

95W

2.90GHz

512KB x4

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

635

ADX635WFK42GM

95W

2.90GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

640

ADX640WFK42GM

95W

3.00GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

645

ADX645WFK42GM

95W

3.10GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

650

ADX650WFK42GM

95W

3.20GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X4 Quad-Core

655

ADX655WFK42GM

95W

3.30GHz

512KB x4

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

400e

AD400EHDK32GI

45W

2.20GHz

512KB x3

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

400e

AD400EHDK42GI

45W

2.20GHz

512KB x3

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

405e

AD405EHDK32GI

45W

2.30GHz

512KB x3

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

405e

AD405EHDK32GM

45W

2.30GHz

512KB x3

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

415e

AD415EHDK32GM

45W

2.50GHz

512KB x3

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

420e

AD420EHDK32GM

45W

2.60GHz

512KB x3

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

425

ADX425WFK32GI

95W

2.70GHz

512KB x3

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

435

ADX435WFK32GI

95W

2.90GHz

512KB x3

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

435

ADX435WFK32GM

95W

2.90GHz

512KB x3

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

440

ADX440WFK32GI

95W

3.00GHz

512KB x3

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

440

ADX440WFK32GM

95W

3.00GHz

512KB x3

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

445

ADX445WFK32GM

95W

3.10GHz

512KB x3

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

450

ADX450WFK32GM

95W

3.20GHz

512KB x3

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

455

ADX455WFK32GM

95W

3.30GHz

512KB x3

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X3 Triple-Core

460

ADX460WFK32GM

95W

3.40GHz

512KB x3

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

215

ADX215OCK22GM

65W

2.70GHz

512KB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

220

ADX220OCK22GM

65W

2.80GHz

512KB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

225

ADX225OCK22GM

65W

2.90GHz

512KB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

235e

AD235EHDK23GQ

45W

2.70GHz

1MB x2

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

240

ADX240OCK23GQ

65W

2.80GHz

1MB x2

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

240e

AD240EHDK23GQ

45W

2.80GHz

1MB x2

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

240e

AD240EHDK23GM

45W

2.80GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

245

ADX245OCK23GQ

65W

2.90GHz

1MB x2

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

245

ADX245OCK23GM

65W

2.90GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

245e

AD245EHDK23GM

45W

2.90GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

250

ADX250OCK23GQ

65W

3.00GHz

1MB x2

N/A

C2

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

250

ADX250OCK23GM

65W

3.00GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

250e

AD250EHDK23GM

45W

3.00GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

255

ADX255OCK23GM

65W

3.10GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

260

ADX260OCK23GM

65W

3.20GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

260u

AD260USCK23GM

25W

1.80GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

265

ADX265OCK23GM

65W

3.30GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

270

ADX270OCK23GM

65W

3.40GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II X2 Dual-Core

275

ADX275OCK23GM

65W

3.50GHz

1MB x2

N/A

C3

11/03/2010

Socket AM3

AMD Athlon™ II

170u

AD170UEAK13GM

20W

2.00GHz

1MB

N/A

C3

11/03/2010

Socket AM3

AMD Sempron™

140

SDX140HBK13GQ

45W

2.70GHz

1MB

N/A

C2

11/03/2010

Socket AM3

AMD Sempron™

145

SDX145HBK13GM

45W

2.80GHz

1MB

N/A

C3

11/03/2010
