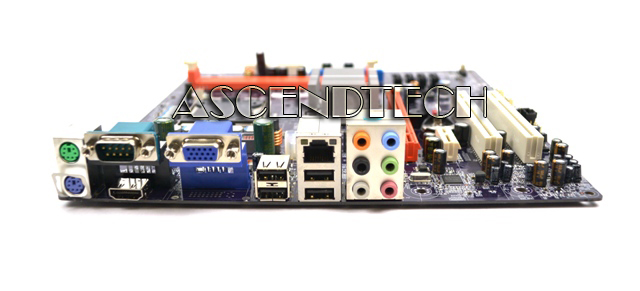

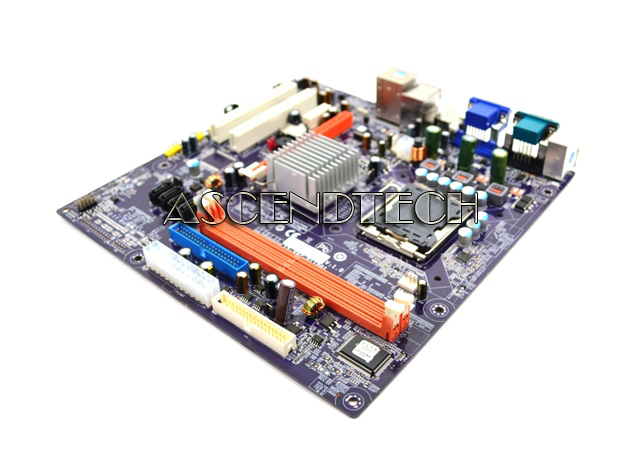

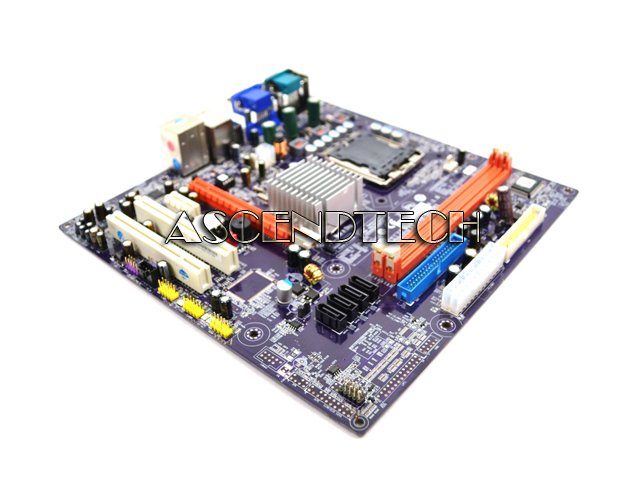

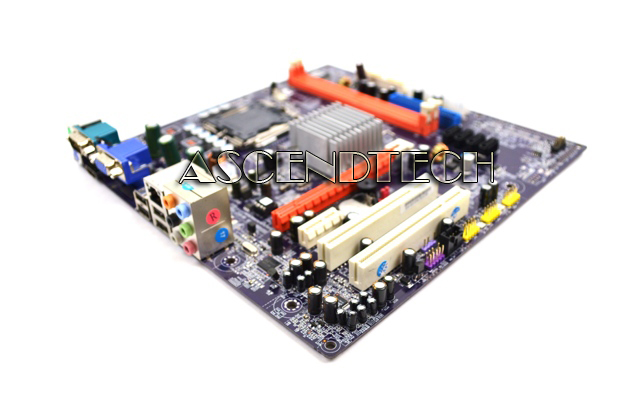

ECS MCP73PVT-SM LGA775 Motherboard

ECS MCP73PVT-SM nForce 630i LGA775 Motherboard. Designed for Intel Socket 775, the 630i motherboard delivers an exceptional Windows Vista experience together with outstanding graphics. It supports a full range of Intel CPUs. The onboard HDMI output enables users to connect their PCs directly to any high definition display for optimal viewing of HD content.
ECS meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Manufacturer: ECS
Part Number: MCP73PVT-SM

Specifications:

Key Features

Product Type
Motherboard

Form Factor
Micro ATX

Width
22.5 cm

Depth
24.5 cm

CPU Type
Celeron D, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Pentium 4, Pentium D, Pentium Extreme Edition

CPU Socket Type
LGA775 Socket

Chipset Type
VIDIA GeForce 7150 / nForce 630i

Data Bus Speed
1333 MHz

Storage Controllers
IDE, Serial ATA-300 (RAID)

Processor
Installed Qty (Max Supported) 1

Memory
Supported RAM Technology DDR2 SDRAM

Video
Graphics Controller NVIDIA GeForce 7150

Audio
Audio Output Type Sound card
Compliant Standards High Definition Audio

I/O Ports
4 x USB Ports
6 x Audio Ports
2 x PS2 Ports
1 x VGA Port
1 x HDMI Port
1 x Serial Port
