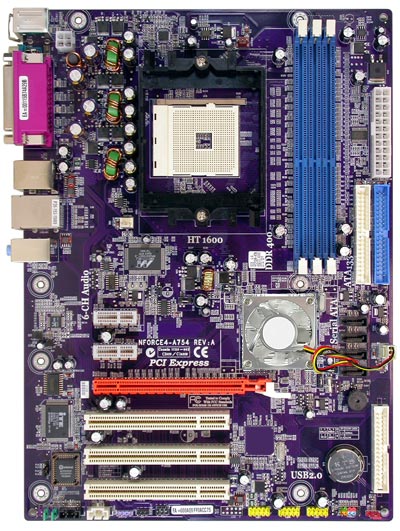

ECS NFORCE4-A754 S.754 PCI-E SATA MBoard
Actual product may vary.
Description
ECS nForce4-A754 V1.0 Socket 754 PCI Express X16 SATA DDR400 Motherboard For AMD Athlon 64 / Sempron Processors.
Specifications:
CPU: High-performance Hyper Transport CPU interface.
Support transfer rate of 1600/1200/800/400 mega-transfers per second.
Socket 754 for AMD Athlon™ 64/Sempron™ processor
CHIPSET: NVIDIA nForce4-4X single chip
MEMORY: 3 x184-pin DDR DIMM socket support up to 2 GB
Support DDR400/333/266/200 DDR SDRAM
EXPANSION SLOT: 1 x PCI Express x16 slot
2 x PCI Express x1 slots
3 x PCI slots
STORAGE: Supported by nForce4-4X
4 x Ultra DMA133/100/66 devices
4 x Serial ATA devices
RAID0, RAID1& RAID 0+1 configuration
AUDIO: Realtek ALC655 6-Channel audio CODEC
Compliant with AC'97 2.3 specification
LAN: Marvell 88E1111 Giga LAN PHY
REAR PANEL I/O: 1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x Parallel port (LPT)
1 x Serial port (COM1)
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS: 1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports two 360K~2.88MB FDDs
2 x IDE connectors
4 x Serial ATA connectors
3 x USB 2.0 headers support additional 6 USB ports
1 x IrDA for SIR header
1 x SPDIF out header
1 x Front panel switch/LED header
1 x Front panel audio header
CD in/ AUX in headers
CPUFAN/NB_FAN/CASFAN connectors
SYSTEM BIOS: Award BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0B, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR: ATX Size, 305mm*220mm
CPU Support List:
| AMD Athlon 64 3700+ (Rev.CG) | 2400 MHz (1MB,1600,Socket 754) |
| AMD Athlon 64 3400+ (Rev.CG) | 2400 MHz (512KB,1600,Socket 754) |
| AMD Athlon 64 3400+ (Rev.C0) | 2200 MHz (1MB,1600,Socket 754) |
| AMD Athlon 64 3200+ (Rev.CG) | 2200 MHz (512KB,1600,Socket 754) |
| AMD Athlon 64 3200+ (Rev.C0) | 2200 MHz (1MB,1600,Socket 754) |
| AMD Athlon 64 3000+ (Rev.C0) | 2000 MHz (512KB,1600,Socket 754) |
| AMD Athlon 64 2800+ (Rev.CG) | 1800 MHz (512KB,1600,Socket 754) |
| AMD Sempron 3400+ 64bit (Rev.E6) | 2000 MHz (256KB,1600,Socket 754) |
| AMD Sempron 3300+ 64bit (Rev.E6) | 2000 MHz (128KB,1600,Socket 754) |
| AMD Sempron 3300+ (Rev.D0) | 2000 MHz (128 KB,1600,Socket 754) |
| AMD Sempron 3100+ 64bit (Rev.E6) | 1800 MHz (256KB,1600,Socket 754) |
| AMD Sempron 3100+ (Rev.CG) | 1800 MHz (256KB,1600,Socket 754) |
| AMD Sempron 3000+ 64bit (Rev.E6) | 1800 MHz (128KB,1600,Socket 754) |
| AMD Sempron 3000+ (Rev.D0) | 1800 MHz (128KB,1600,Socket 754) |
| AMD Sempron 2800+ 64bit (Rev.E6) | 1600 MHz (256KB,1600,Socket 754) |
| AMD Sempron 2800+ (Rev.D0) | 1600 MHz (256KB,1600,Socket 754) |
| AMD Sempron 2600+ 64bit (Rev.E6) | 1600 MHz (128KB,1600,Socket 754) |
| AMD Sempron 2600+ (Rev.D0) | 1600 MHz (128KB,1600,Socket 754) |
| AMD Sempron 2500+ 64bit (Rev.E6) | 1400 MHz (256KB,1600,Socket 754) |
