ECS NM70-I V1.0 | Ecs Nm70-I V1.0 Intel 847 Motherboard

ECS NM70-I V1.0 Intel 847 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

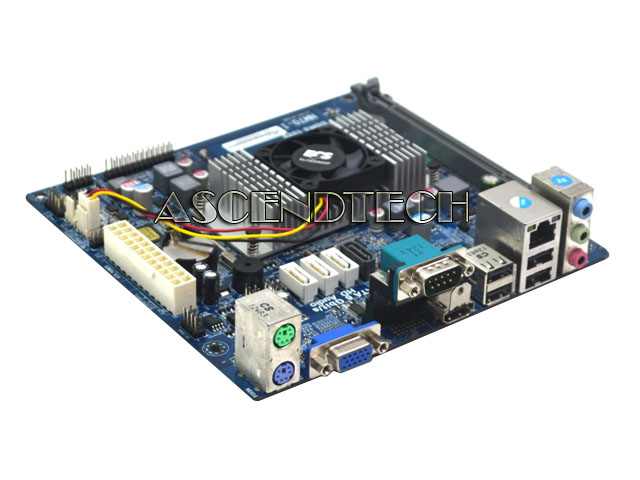

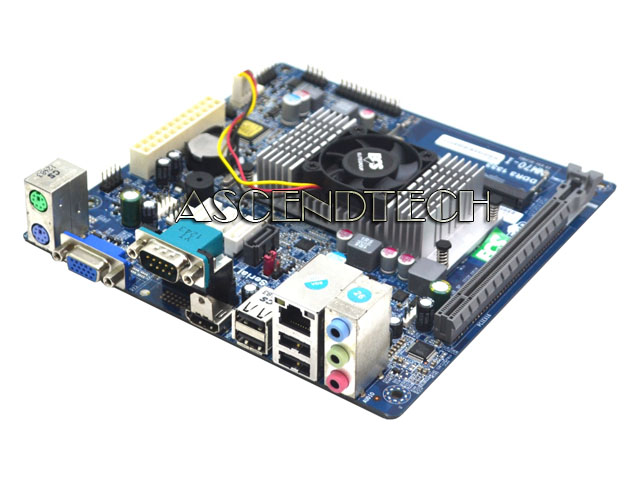

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item CodeMBECSNM70IV1000

BrandEcs - Elitegroup

ModelECS NM70-I V1.0

CategoryMotherboard & Cpu - Ready To Go Combos

Description

ECS NM70-I V1.0 Intel Celeron 847 DDR3 Mini-ITX Motherboard/CPU Combo. When it comes to the quality and durability of your motherboard, ECS goes above and beyond industry standards to ensure that you have a motherboard that will last long and always continue to out perform the competition.

Features:

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system. (Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs)
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Integrated Printer (LPT) port / header to expand functionality
Microsoft Windows 8 Certified
Supports DirectX® 10.1 to enhance graphical performance
Supports Intel® HD Graphics
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function
ECS Intelligent EZ Utility : eBLU, eDLU, eSF

Specifications:

CPU	º Onboard IntelCeleron 847 º Solid Capacitor for CPU side º Please refer to CPU support list for details
CHIPSET	º Intel^® NM70 Express Chipset
GRAPHICS	º Support Intel HD Graphics 2000 º Supports DirectX 10.1 º Supports HDMI 1.4a & Premium Audio º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY	º Single-channel DDR3 Memory architecture º Supports DDR3 1333/1066 non-ECC, Un-buffered SO DIMM Memory º 1 X DDR3 SO-DIMM socket º Support up to 8 GB* º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation º Note:Please refer to the latest Memory support list for details
EXPANSION SLOT	º 1 X PCI Express X16 Gen 2.0 slot(s) º *PCI Express X16 run@ 8
Storage	º Support by Intel NM70 Express Chipset • 1 X Serial ATAIII 6Gb/s • 3 X Serial ATAII 3Gb/s º Supports NCQ, AHCI and "Hot Plug" functions
Audio	º 6-Channel HD audio CODEC º Compliant with HD audio specification º VIA 1705 VIA VT1705 6-channel High Definition audio CODEC Compliant with HD audio specification for a whole new immersive surround sound experience 3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR Low Power Consumption Capability for “full rate” BluRay / DVD / HD DVD support.
LAN	º Realtek RTL8111E Gigabit Fast Ethernet Controller º (Realtek RTL8105 10/100Mbps Fast Ethernet Controller optional) º Wake-On-LAN
USB	º Support by Intel NM70 Express Chipset • 8 X USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 4 port(s)

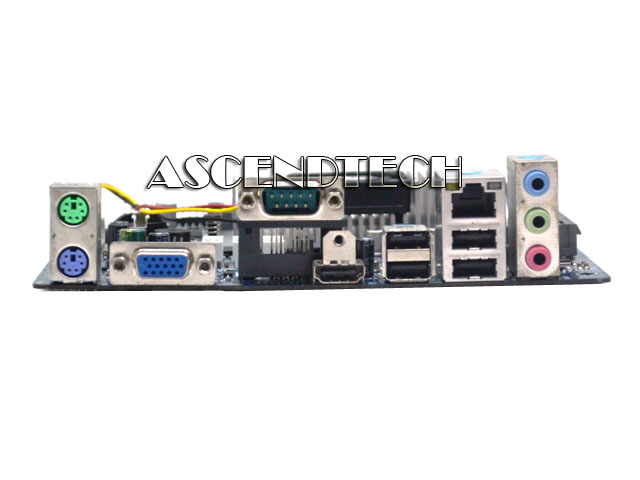

REAR PANEL I/O	º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Serial port (COM) º 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 port º 1 X HDMI port(s) º 1 X DVI-D port(s) (optional) º 1 X D-Sub (VGA) port(s) º 4 X USB2.0 port(s)
CONNECTORS & HEADERS	º 1 X 24-pin ATX Power Supply connector º 1 X 3-pin CPU_FAN connector with smart fan º 1 X 3-pin SYS_FAN connector º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Onboard Buzzer º 2 X USB 2.0 header • Support additional 4 USB ports º 1 X S/PDIF out header º 1 X SATA III 6Gb/s connector(s) º 3 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 1 X Serial port header (COM) º 1 X Parallel port header (LPT) º 1 X Chassis intrusion header
SYSTEM BIOS	º AMI BIOS with 64 MB SPI Flash ROM º Supports ACPI 3.0 & DMI º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Dual-Monitor function
FORM FACTOR	º Mini ITX Form Factor º 170mm(W)*170mm(H)
OS Support	º Windows XP 32-bit º Windows XP 64-bit º Windows 7 32-bit º Windows 7 64-bit º Windows 8 32-bit º Windows 8 64-bit
Certifications	º CE/FCC Certification º ErP/EuP Certification º WHQL Certification º WHCK Certification

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket	Family	Processor	Wattage	Frequency	Cache	Stepping	Since BIOS
BGA1023	Intel Celeron	1037U	17W	1.80GHz	2MB	P0	12/27/2013
BGA1023	Intel Celeron	807	17W	1.50GHz	2MB	Q0	8/23/2012
BGA1023	Intel Celeron	847	17W	1.10GHz	2MB	Q0	8/23/2012
