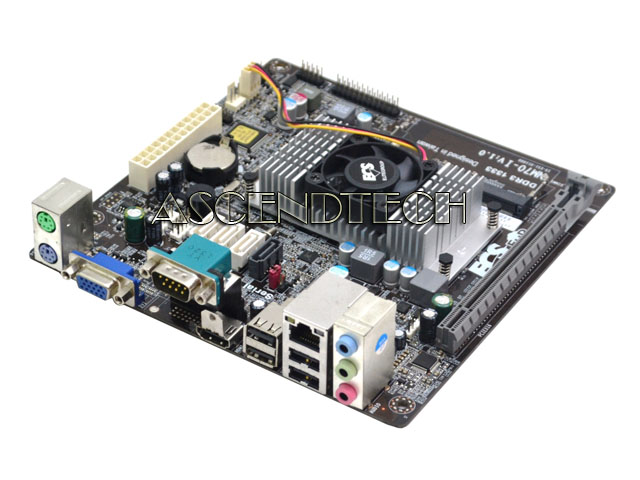

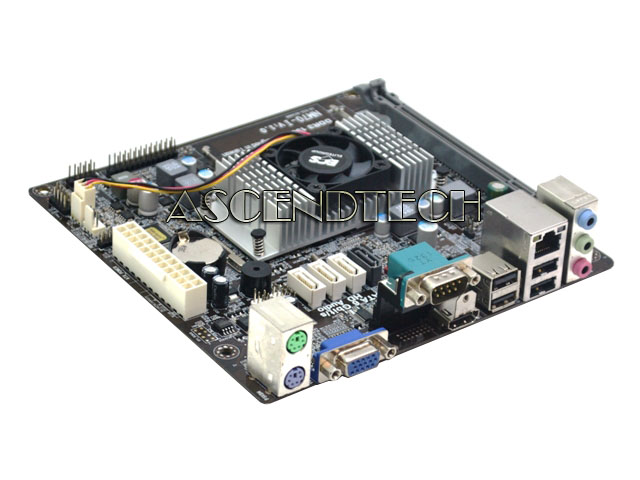

NM70-I V1.0 | Ecs Nm70-I V1.0 Motherboard No I/O

ECS NM70-I V1.0 Intel Celeron 1037U 1.80Ghz Processor DDR3 HDMI VGA SATA 6GB/s Mini-ITX Desktop Motherboard.

Chipset: Intel NM70

Socket: Intel BGA1023

Processor/CPU: Intel Celeron 1037U

Processor/CPU Speed: 1.80Ghz

Number of Cores: 2

Max Supported Memory: 8GB

Number of Memory Slots: 1

Memory Type: DDR3 SDRAM

Storage Interface: SATA 6.0Gb/s

Network/Communications: Realtek RTL8111E Gigabit Fast Ethernet Controller

Audio: VIA VT1705 6-channel High Definition audio CODEC

Connectors: 1x 24-pin ATX Power Supply connector, 1x 3-pin CPU_FAN connector with smart fan, 1x 3-pin SYS_FAN connector, 1x Front Panel switch/LED header, 1x Front panel audio header, 1x Onboard Buzzer, 2x USB 2.0 header, Support additional 4 USB ports, 1x S/PDIF out header, 1x SATA III 6Gb/s connector(s), 1x CLR_CMOS header, 1x Serial port header (COM) 1x Parallel port header (LPT), 1x Chassis intrusion header, 1x LVDS connector (optional)

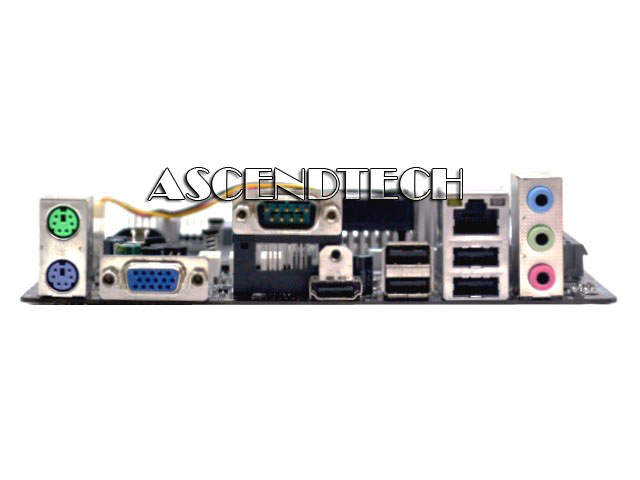

Input/Output Ports: 1x PS/2 Keyboard & PS/2 mouse connectors, 1x Serial port (COM), 1x Audio port (Line Out/Line In/Mic In), 1x RJ-45 port, 1x HDMI port(s), 1x D-Sub (VGA) port(s), 4x USB2.0 port(s)

Expansion Slots: 1x PCI Express X16 Gen 2.0 slot(s)

Form Factor: Mini-ITX

Type: Desktop Motherboard

Supported Operating System: Windows XP 32/64 bit, Windows 7 32/64 bit, Windows 8 32/64 bit

Features: Processor, Heatsink fan assembly

Additional Specifications:

Unique Feature
Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system. (Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs)
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
Integrated Printer (LPT) port / header to expand functionality
Microsoft Windows 8 Certified
ECS Intelligent EZ Utility : eBLU, eDLU, eSF

BIOS
AMI BIOS with 64 MB SPI Flash ROM
Supports ACPI 3.0 & DMI
Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
Multi-Language BIOS
Dual-Monitor function

Graphics
Support Intel HD Graphics 2000
Supports HDMI 1.4a & Premium Audio
Supports Full HD 1080P Blu-ray / HD-DVD Playback

Certifications
CE/FCC Certification
ErP/EuP Certification
WHQL Certification
WHCK Certification

CPU Support

Socket BGA1023
Vendor	CPU Model	CPU Frequency	L3 Cache	BIOS	Family	Stepping	Wattage
Intel	1037U	1.80GHz	2MB	N/A	Intel Celeron	P0	17W
Intel	807	1.50GHz	2MB	8/23/2012	Intel Celeron	Q0	17W
Intel	847	1.10GHz	2MB	8/23/2012	Intel Celeron	Q0	17W
