ECS NM70-I2 V1.0 Intel Motherboard NO IO
Description

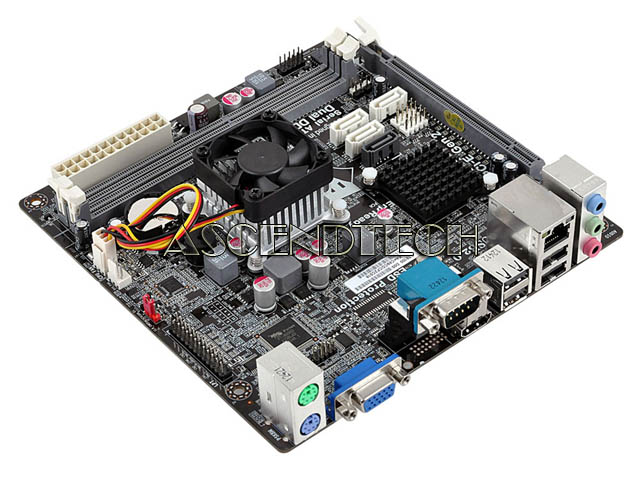

ECS NM70-I2 V1.0 Intel Celeron 1037U DDR3 Mini-ITX Motherboard/CPU Combo Kit. When it comes to the quality and durability of your motherboard, ECS goes above and beyond industry standards to ensure that you have a motherboard that will last long and always continue to out perform the competition.
Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover. This part is not needed and you can still install the board in standard ATX case.
Features:
Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system
ECS Durathon Technology ensure the stability, reliability and performance of system. (Triple Density PCB; Extreme Temp Resistance; 1.5K Marathon Test; Superior Solid CAPs)
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan Microsoft Windows 8 Certified Supports DirectX 10.1 to enhance graphical performance
Specifications:
| CPU | Onboard Intel Celeron processor Solid Capacitor for CPU side Intel Celeron 1037U |
| Chipset | Intel NM70 Express Chipset |
| Graphics | Support Intel HD Graphics 2000 Supports DirectX 10.1 Supports HDMI 1.4a & Premium Audio Supports Full HD 1080P Blu-ray / HD-DVD Playback |
| Memory | Dual-channel DDR3 Memory architecture Supports DDR3 1333/1066 non-ECC, Un-buffered SDRAM Memory x2 240-pin DDR3 DIMM socket Support up to 16 GB* |
| Expansion Slot | x1 PCI Express X16 Gen 2.0 slot(s) |
| Storage | Support by IntelNM70 Express Chipset x1 Serial ATAIII 6Gb/s x3 Serial ATAII 3Gb/s |
| Audio | VIA 1705 VIA VT1705 6-channel High Definition audio CODEC Compliant with HD audio specification for a whole new immersive surround sound experience 3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR Low Power Consumption Capability for “full rate” BluRay / DVD / HD DVD support. |
| LAN | Realtek 8111E Gigabit Fast Ethernet Controller (Realtek 8105E 10/100Mbps Fast Ethernet Controller optional) |
| USB | Support by NM70 Express Chipset - x8 USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 4 port(s) |
| Rear Panel I/O | x1 PS/2 Keyboard & PS/2 mouse connectors x1 Serial port (COM) x1 Audio port (Line Out/Line In/Mic In) x1 HDMI port(s) x1 DVI-I port(s) (optional) x1 D-Sub (VGA) port(s) 4 X USB2.0 port(s) |
| Connectors & Headers | x1 24-pin ATX Power Supply connector x1 3-pin CPU_FAN connector x1 3-pin SYS_FAN connector x1 Front Panel switch/LED header x1 Front panel audio header x1 Onboard Buzzer x2 USB 2.0 header - Support additional 4 USB ports x1 S/PDIF out header x1 SATA III 6Gb/s connector(s) x3 SATA II 3Gb/s connector(s) x1 CLR_CMOS header x1 Serial port header (COM) x1 Parallel port header (LPT) x1 ME_UNLOCK header x1 Chassis intrusion header x1 LVDS connector (optional) x1 LDC header |
| System BIOS | AMI BIOS with 32 MB SPI Flash ROM Over-Clocking Multi-Language BIOS |
| Form Factor | Mini ITX Form Factor 170mm X 170mm |
| OS Support | Windows XP 64-bit Windows 7 32-bit Windows 7 64-bit Windows 8 64-bit |
| Certifications | CE/FCC Certification ErP/EuP Certification WHQL Certification WHCK Certification |
