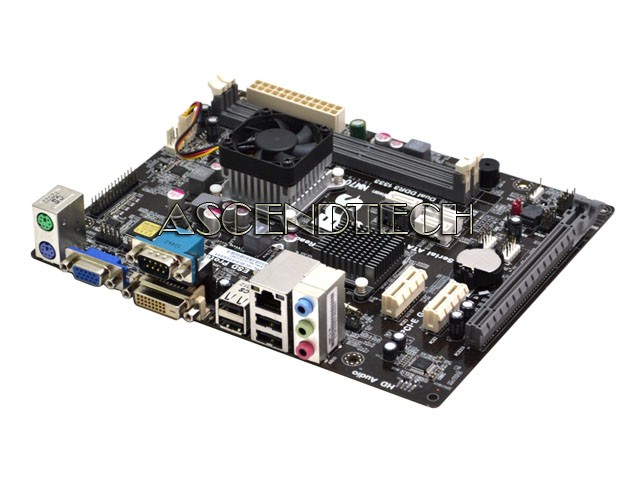

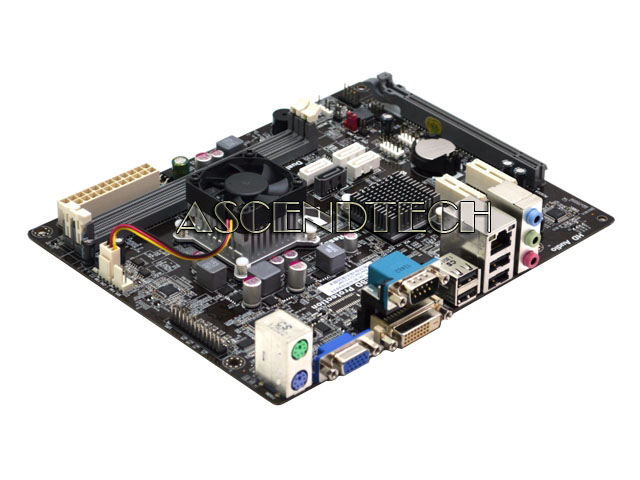

NM70-M V1.0 | Ecs Nm70-M V1.0 Micro Atx Motherboard

ECS NM70-M V1.0 Intel Celeron 847 DDR3 DIMM Socket Serial ATAIII 6Gb/s Micro ATX Motherboard/CPU Combo.

Features:

Integrated LVDS for an extra display option

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system

ECS Durathon Technology ensure the stability, reliability and performance of system.

ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan

Dual Display design for multiple output support

Integrated Printer (LPT) port / header to expand functionality

Microsoft Windows 8 Certified

Supports DirectX® 10.1 to enhance graphical performance

ECS Intelligent EZ Utility : eBLU, eDLU, eSF

Free Bundle: CyberLink Media Suite

Specifications:

CPU	º Onboard Intel^® Celeron 847 processors º Solid Capacitor for CPU side
CHIPSET	º Intel^® NM70 Express Chipset
GRAPHICS	º Supports DirectX^® 10.1
MEMORY	º Dual-channel DDR3 Memory architecture º Supports DDR3 1333/1066 non-ECC, Un-buffered SDRAM Memory º 2 X 240-pin DDR3 DIMM socket º Support up to 16 GB*
EXPANSION SLOT	º 1 X PCI Express X16 Gen 2.0 slot(s) º 2 X PCI Express X 1 Gen 2.0slot(s)
Storage	º Support by IntelNM70 Express Chipset • 1 X Serial ATAIII 6Gb/s • 3 X Serial ATAII 3Gb/s
Audio	º 6-Channel HD audio CODEC º VIA 1705 ‧VIA^® VT1705 6-channel High Definition audio CODEC ‧Compliant with HD audio specification for a whole new immersive surround sound experience ‧3 DACs and 2 ADCs with High-performance ADCs with 100dB SNR, DACs with 100dB SNR ‧Low Power Consumption ‧Capability for “full rate” BluRay / DVD / HD DVD support.
LAN	º Realtek 8111G Gigabit Fast Ethernet Controller º (Realtek 8106 10/100Mbps Fast Ethernet Controller optional)
USB	º Support by NM70 Express Chipset • 4 X USB2.0 port(s) Up to 480 Mb/s Back Panel 4 port(s) Onboard 4 port(s)

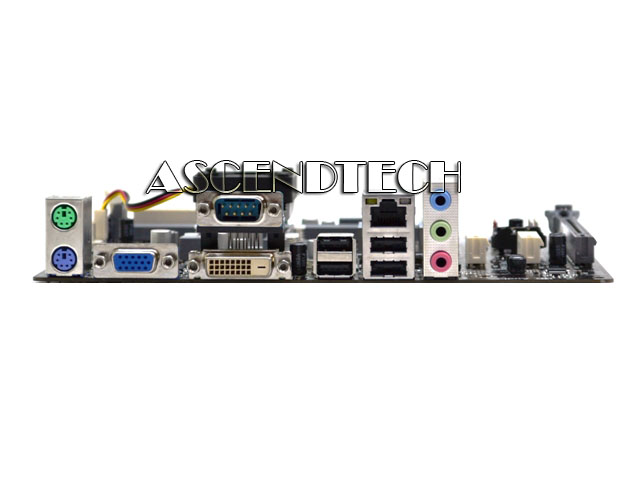

REAR PANEL I/O	º 1 X PS/2 Keyboard & PS/2 mouse connectors º 1 X Serial port (COM) º 1 X Audio port (Line Out/Line In/Mic In) º 1 X RJ-45 port º 1 X HDMI port(s) º 1 X DVI-I port(s) (optional) º 1 X D-Sub (VGA) port(s) º 4 X USB2.0 port(s)
CONNECTORS & HEADERS	º 1 X 24-pin ATX Power Supply connector º 1 X 3-pin SYS_FAN connector º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Onboard Buzzer º 4 X USB 2.0 header º 1 X S/PDIF out header º 1 X SATA III 6Gb/s connector(s) º 3 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 1 X Serial port header (COM) º 1 X Parallel port header (LPT) º 1 X ME_UNLOCK header º 1 X Chassis intrusion header
SYSTEM BIOS	º AMI BIOS with 4 MB SPI Flash ROM º Supports ACPI 3.0 & DMI º F7 hot key for boot up devices option º Dual Display º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Supports PgUp clear CMOS Hotkey º Dual-Monitor function
FORM FACTOR	º mATX Form Factor º 210mm X 170mm
OS Support	º Windows 7 32-bit º Windows 7 64-bit º Windows 8 64-bit
Certifications	º CE/FCC Certification º ErP/EuP Certification º WHQL Certification º WHCK Certification
Bundled Software	º ECS Intelligent EZ Utility : eBLU, eDLU, eSF º Free Bundle: CyberLink Media Suite

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket	Family	Processor	Wattage	Frequency	Cache	Stepping	Since BIOS
BGA1023	Intel Celeron	1037U	17W	1.80GHz	2MB	P0	05/31/2013
BGA1023	Intel Celeron	807	17W	1.50GHz	1.5MB	Q0	05/31/2013
BGA1023	Intel Celeron	847	17W	1.10GHz	2MB	Q0	05/31/2013
