ECS NM70-TI Celeron 847 Combo No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

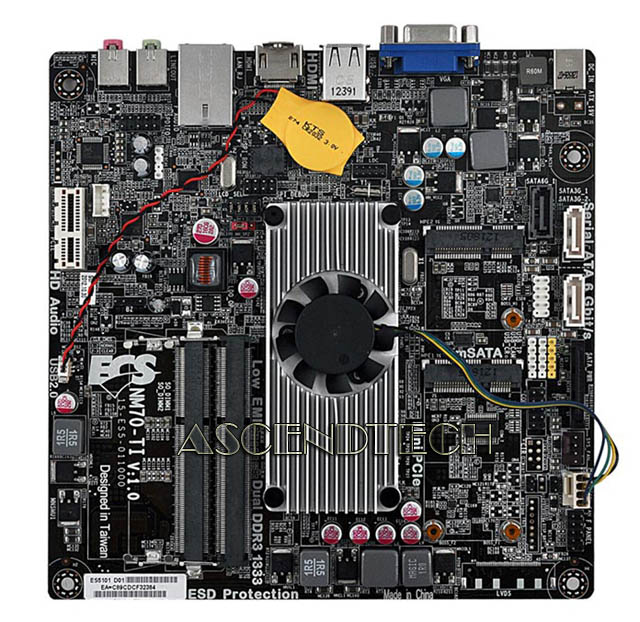

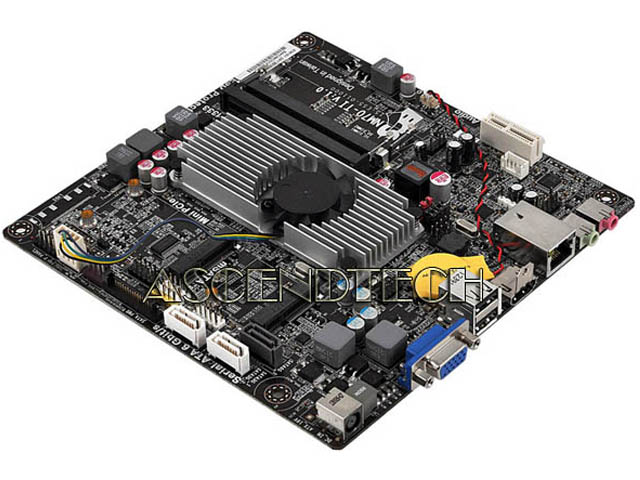

Ecs Nm70-Ti Celeron 847 Combo No I/O. Model: Nm70-Ti V1.0A
  Enlarge
Ecs Nm70-Ti Celeron 847 Combo No I/O. Model: Nm70-Ti V1.0A
Ecs Nm70-Ti Celeron 847 Combo No I/O. Model: Nm70-Ti V1.0A
Ecs Nm70-Ti Celeron 847 Combo No I/O. Model: Nm70-Ti V1.0A
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBECSNM70TINOIO
Brand Ecs - Elitegroup
Model NM70-TI V1.0A
Category Motherboard & Cpu - Ready To Go Combos
Condition Like New Grade A
Condition Description Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.

Description

ECS NM70-TI V1.0A Intel Celeron 847 DDR3 Thin Mini-ITX Motherboard/CPU Combo. ECS NM70-TI features Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system, ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan, Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment. ECS MIB III - A friendly interface for overclocking Microsoft Windows 8 Certified. ECS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.







Features:

Dual Channel DDR3 1333/1066
Doubles the bandwidth of your system memory up to 21.0GB/s and pumps up the system performance.

Mini PCI Express
The Mini-PCIe slot has a new 52 pin edge connector and it is much smaller in overall size. It is designed for laptops and other small-footprint computer systems and supports Mini-PCI card for mini- Wireless, mini-TV tuner, mini-SATA cards and so on.

SATA 6Gb/s
Doubles the transfer speed of SATA 3G, running at speed up to 6.0Gb/s, and can connect with any other SATA 3.0Gb/s and 1.5Gb/s devices for backward compatibility.

2 Channel High Definition Audio
Integrated 2-channel HD Audio CODEC.

HDMI Output
The interface supports existing high-definition video formats(720p, 1080i, and even 1080p), plus multi-channel digital audio on a single cable. Combination with HDCP, provides a secure audio/video interface that meets the security requirements of content providers and systems operators.

D-Sub output
D-Sub connection technology is used for connecting computer and monitor by analog signal. It is reliable and stable for signals transmit from point A to B.





Specifications:

CPU

º Onboard Intel Celeron 847 processor
º Solid Capacitor for CPU side

CHIPSET

º Intel NM70 Express Chipset

GRAPHICS

º Supports DirectX 10.1
º Supports Full HD 1080P Blu-ray / HD-DVD Playback

MEMORY

º Dual-channel DDR3 Memory architecture
º Supports DDR3 1333/1066 non-ECC, Un-buffered SDRAM Memory
º 2 X DDR3 SO-DIMM socket
º Support up to 16 GB*
º * Due to the DRAM maximum size is 8 GB at present
    • The memory maximum size we have tested is 16 GB
º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

º 1 X PCI Express X 1 slot(s) (optional)
º 2 X Mini PCI Express X1 slot(s)

Storage

º Support by Intel NM70 Express Chipset
    • 1 X Serial ATAIII 6Gb/s
    • 2 X Serial ATAII 3Gb/s

Audio

º 2-Channel HD audio CODEC

LAN

º Realtek 8111E Gigabit Fast Ethernet Controller
º Wake-On-LAN

USB

º Support by NM70 Express Chipset
    • 4 X USB2.0 port(s) Up to 480 Mb/s
      Back Panel 2 port(s)
      Onboard 2 port(s)

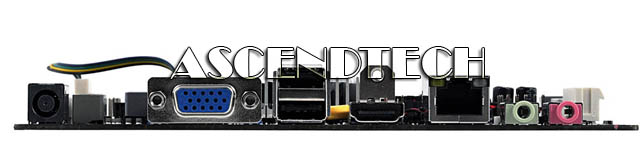

REAR PANEL I/O

º 2 x Audio jacks (Line Out, Mic In)
º 1 X RJ-45 port
º 1 X HDMI port(s)
º 1 X D-Sub (VGA) port(s)
º 4 X USB2.0 port(s)
º 1 X DC-in Connector

CONNECTORS & HEADERS

º 1 X 4-pin CPU_FAN connector
º 1 X 4-pin SYS_FAN connector with smart fan
º 1 X Front Panel switch/LED header
º 1 X Front panel audio header
º 1 X Speaker header
º 1 X USB 2.0 header
    • Support additional 2 USB ports
º 1 X S/PDIF out header
º 1 X SATA III 6Gb/s connector(s)
º 2 X SATA II 3Gb/s connector(s)
º 1 X CLR_CMOS header
º 1 X IR header (optional)
º 1 X mSATA connector
º 1 X ME_UNLOCK header
º 1 X Chassis intrusion header
º 1 X Touch board header
º 1 X Camera header
º 1 X LVDS connector (optional)
º 1 X LDC header
º 1 X SATA power connector

SYSTEM BIOS

º AMI BIOS with 64 MB SPI Flash ROM
º Supports M.I.B III Utility
º ACPI & DMI
º F7 hot key for boot up devices option
º Dual Display
º Support ECS EZ BIOS
º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot
º Multi-Language BIOS
º Audio, LAN, can be disabled in BIOS
º Supports PgUp clear CMOS Hotkey
º CPU FSB adjustment(increase of 1MHz)

FORM FACTOR

º Thin Mini ITX Form Factor

OS Support

º Windows XP 32-bit
º Windows XP 64-bit
º Windows 7 32-bit
º Windows 7 64-bit
º Windows 8 32-bit
º Windows 8 64-bit

Certifications

º CE/FCC Certification
º ErP/EuP Certification
º WHCK Certification
