NM70-TI V1.0A | Ecs Nm70-Ti Celeron 847 Mb/Cpu Combo

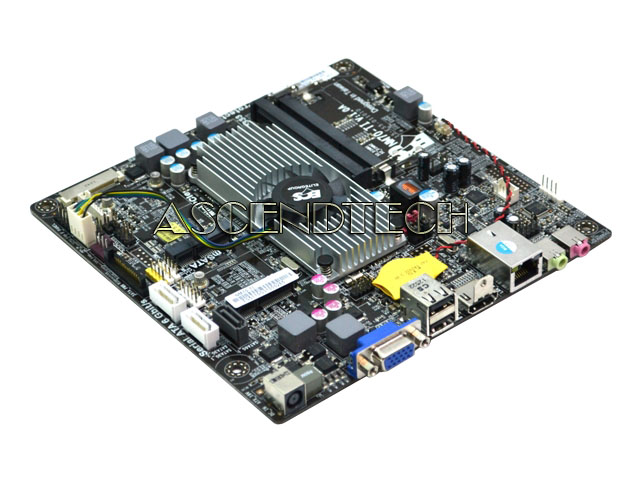

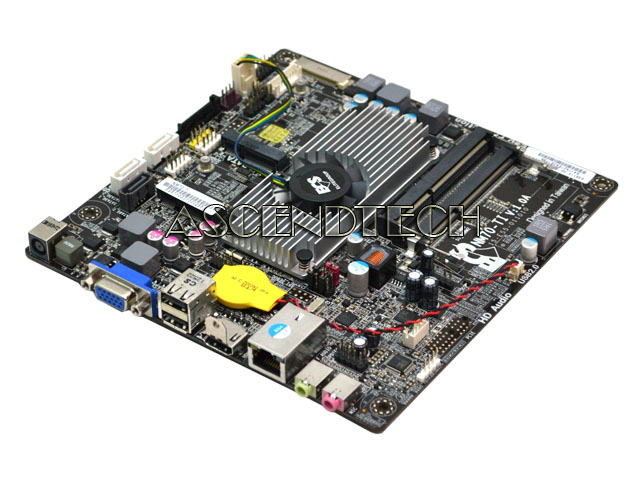

ECS NM70-TI V1.0A Intel Celeron 847 DDR3 Thin Mini-ITX Motherboard/CPU Combo.

Features:

Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system

ECS Durathon Technology ensure the stability, reliability and performance of system.

ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan

Supports ECS EZ BIOS for tweaking BIOS in graphical user interface within a multi language environment

ECS MIB III - A friendly interface for overclocking

Microsoft Windows 8 Certified

Supports DirectX® 10.1 to enhance graphical performance

Free Bundle: CyberLink Media Suite

Specifications:

CPU	º Onboard Intel^® Celeron 847 processors º Solid Capacitor for CPU side
CHIPSET	º Intel^® NM70 Express Chipset
GRAPHICS	º Supports DirectX^® 10.1 º Supports Full HD 1080P Blu-ray / HD-DVD Playback
MEMORY	º Dual-channel DDR3 Memory architecture º Supports DDR3 1333/1066 non-ECC, Un-buffered SDRAM Memory º 2 X DDR3 SO-DIMM socket º Support up to 16 GB* º * Due to the DRAM maximum size is 8 GB at present • The memory maximum size we have tested is 16 GB º * Due to the operation system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation
Storage	º Support by Intel NM70 Express Chipset • 1 X Serial ATAIII 6Gb/s • 2 X Serial ATAII 3Gb/s
Audio	º 2-Channel HD audio CODEC
LAN	º Realtek 8111E Gigabit Fast Ethernet Controller º Wake-On-LAN
USB	º Support by NM70 Express Chipset • 4 X USB2.0 port(s) Up to 480 Mb/s Back Panel 2 port(s) Onboard 2 port(s)

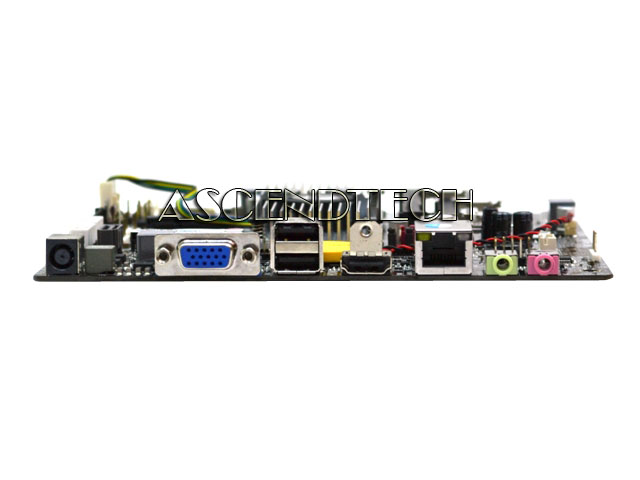

REAR PANEL I/O	º 2 x Audio jacks (Line Out, Mic In) º 1 X RJ-45 port º 1 X HDMI port(s) º 1 X D-Sub (VGA) port(s) º 4 X USB2.0 port(s) º 1 X DC-in Connetor
CONNECTORS & HEADERS	º 1 X 4-pin CPU_FAN connector º 1 X 4-pin SYS_FAN connector with smart fan º 1 X Front Panel switch/LED header º 1 X Front panel audio header º 1 X Speaker header º 1 X USB 2.0 header • Support additional 2 USB ports º 1 X S/PDIF out header º 1 X SATA III 6Gb/s connector(s) º 2 X SATA II 3Gb/s connector(s) º 1 X CLR_CMOS header º 1 X IR header (optional) º 1 X mSATA connector º 1 X ME_UNLOCK header º 1 X Chassis intrusion header º 1 X Touch board header º 1 X Camera header º 1 X LVDS connector (optional) º 1 X LDC header º 1 X SATA power connector
SYSTEM BIOS	º AMI BIOS with 64 MB SPI Flash ROM º Supports M.I.B III Utility º ACPI & DMI º F7 hot key for boot up devices option º Dual Display º Support ECS EZ BIOS º Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot º Multi-Language BIOS º Audio, LAN, can be disabled in BIOS º Supports PgUp clear CMOS Hotkey º CPU FSB adjustment(increase of 1MHz)
FORM FACTOR	º Thin Mini ITX Form Factor
OS Support	º Windows XP 32-bit º Windows XP 64-bit º Windows 7 32-bit º Windows 7 64-bit º Windows 8 32-bit º Windows 8 64-bit
Certifications	º CE/FCC Certification º ErP/EuP Certification º WHCK Certification

CPU Socket List:

* means validated by ECS at time of writing. Changes to component or CPU may produce a different outcome. The result shown is for reference only and is subject to change w/o notification.

Socket	Family	Processor	Wattage	Frequency	Cache	Stepping	Since BIOS
BGA1023	Intel Celeron	1037U	17W	1.80GHz	2MB	P0	05/30/2013
BGA1023	Intel Celeron	807	17W	1.50GHz	1.5MB	Q0	11/14/2012
BGA1023	Intel Celeron	847	17W	1.10GHz	2MB	Q0	11/14/2012
