ECS P4M890T-M2 LGA775 1066FSB PCI-Ex

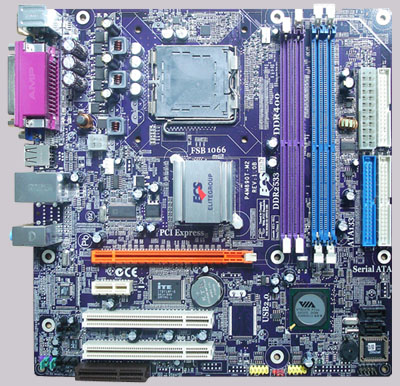

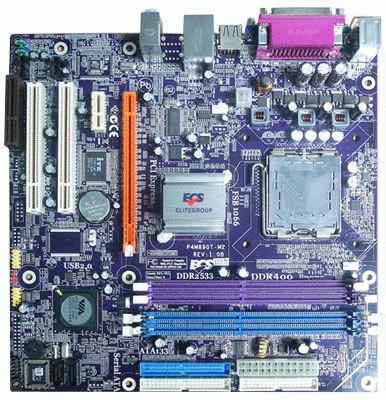

ECS P4M890T-M2 V1.0B Motherboard, features: VIA P4M890 ChipSet 1066/800/533 FSB PCI-Express x16 Socket LGA775 for Celeron D / Pentium D / Pentium 4 / Core 2 Duo Processors.

SPECIFICATIONS:

CPU: LGA775 socket for latest Intel Core 2 Duo / Pentium D / Pentium 4 / Celeron D processor
FSB 1066/800/533 MHz
Support Hyper-Threading Technology
CHIPSET: VIA® P4M890 & VT8237R+
North Bridge: VIA® P4M890
South Bridge: VIA® VT8237R Plus
GRAPHICS: Integrated S3 UniChrome Pro 2D/3D Graphics
Share memory : 64MB
MEMORY: Single-channel DDR memory architecture
2 x 184-pin DDR DIMM socket support up to 2 GB
2 x 240-pin DDR2 DIMM socket support up to 4 GB
Support DDR400/333 DDR SDRAM or DDR2 533/400 DDR2 SDRAM
EXPANSION SLOT: 1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
1 x CNR slot
STORAGE: Supported by VIA VT8237R Plus
-- 4 x Ultra DMA133/100/66 devices
-- 2 x Serial ATA devices
RAID0 & RAID1 configuration
AUDIO: Realtek ALC655 6-Channel audio CODEC
Compliant with AC'97 2.3 specification
LAN: VIA® VT6103L 10/100 Mbps Fast Ethernet PHY
REAR PANEL I/O: 1 x PS/2 keyboard & PS/2 mouse connectors
1 x Parallel port (LPT1)
1 x Serial port (COM1)
1 x VGA port
4 x USB ports
1 x RJ45 LAN connector
1 x Audio port (Line-in, Line-out, Mic-in)
INTERNAL I/O CONNECTORS & HEADERS: 1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector
2 x IDE connectors
2 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB Ports
1 x Buzzer
1 x Front panel switch/LED header
1 x Front panel audio header
AUX-in header
CD in header
CPUFAN/SYSFAN connectors
SYSTEM BIOS: AMI BIOS with 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR: Micro-ATX Size, 244mm*244mm
PRODUCT TYPE: Recertified
