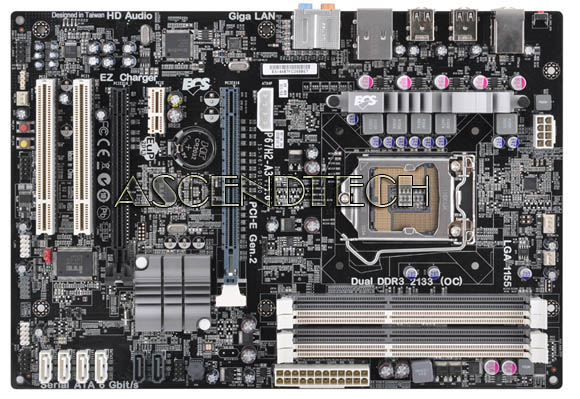

ECS P67H2-A3 LGA1155 DDR3 Motherboard

ECS P67H2-A3 LGA1155 Intel P67 Chipset DDR3 SATA 6GB/s Motherboard. ECS P67H2-A3 Mainstream Motherboard with Best Cost/Performance. P67H2-A3 is ECS latest Mainstream product fully supports the 2nd Generation Intel Core i3, i5, i7 and unlocked edition K-sku desktop processors to deliver amazing overclocking capabilities.P67H2-A3 features Intel P67 chip by supporting DDR3 1066/1333/1600/1800(OC)/2133(OC), using ECS eOC or Intel XTU to gain great performance. In addition P67H2-A3 features SATAIII and proprietary ECS BIOS tweaking through the M.I.B III Overclocking utility. ECS application kit including eOC, eGS, eSF, eBLU, eDLU and eJIFFY also offers a convenient way to extract performance, save energy consumption and keep drivers and BIOS up-to-date. P67H2-A3 is the best chioce for your computing experience.

Features:

M.I.B. III
M.I.B. III brings the same convenience interface of overclocking as M.I.B. II, it also comes with advance range of frequency tuning for CPU/MEMORY/PCI-E bus speed to take the system performance to superior level. Icon please access the following address.

XTU Utility
Intel Extreme Tuning Utility is the ideal way to monitor and boost the performance of your of Intel technology-based PC. Automatic performance tuning reduces the overclocking effort for everyone, while expert users retain the option to personalize their system configuration.

Intel 2nd Gen Core™ Processor
Supports latest Intel LGA 1155 CPU-socket interface processor which is built on 32 nm technologies to provide smart performance and responsiveness on executing tasks, It combines the CPU and GPU to offer fantastic HD media and graphics, especially on 3D gaming experience.

LGA1155
Motherboard Supports LGA 1155 CPU-socket interface, which is designed for 2nd Gen Intel Core™ Processors, and built on 32 nm technologies to provide high smart performance and responsiveness on executing tasks.

Dual Channel DDR3 2133 OC
Dual DDR3 2133 O.C. is able to raise processor and RAM clock up to 2133mHz through capable RAM in overclock mode. It assists system to obtain optimal performance to meet the O.C. enthusiast needs.

PCI EXPRESS 2.0
The exceptionally increased interconnect bit rate from 2.5GT/s up to 5.0GT/s would effectively eliminates the bottle neck of the system performance and brings the most terrific computing experience from the present to the future.

RAID 0, 1, 5, 10
Supports RAID 0(Striped disk array), RAID 1(Mirroring disk array), RAID 5(Block Interleaved Distributed Parity), RAID 10 (A Stripe of Mirrors). Provides users the performance and protection.

eSATA 6Gb/s
eSATA III with 6Gb/s data transfer rate can promise substantial performance gain to a new hard drive enclosure. The data transfer rate is double than previous SATA II(3Gb/s) and also supports external HDD hot plug and keyed connector end for fool-proof.

Gigabit LAN
Delivers transfer speed ten times faster than conventional 10/ 100 Ethernet connections, supporting a high transfer rate up to Gigabit/s. Gigabit LAN is the networking standards for the future and is ideal for handing large amount of data such as video, audio, and voice.

Specifications:

CPU Support List:
