ECS Q67H2-AM V1.1 | Ecs Q67h2-Am V1.1 Ddr3 Intel Motherboard

ECS Q67H2-AM V1.1 DDR3 Intel Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item Code MBECSQ67H2AMV11

Brand Ecs - Elitegroup

Model ECS Q67H2-AM V1.1

Category Intel Lga1155 Motherboard

Description

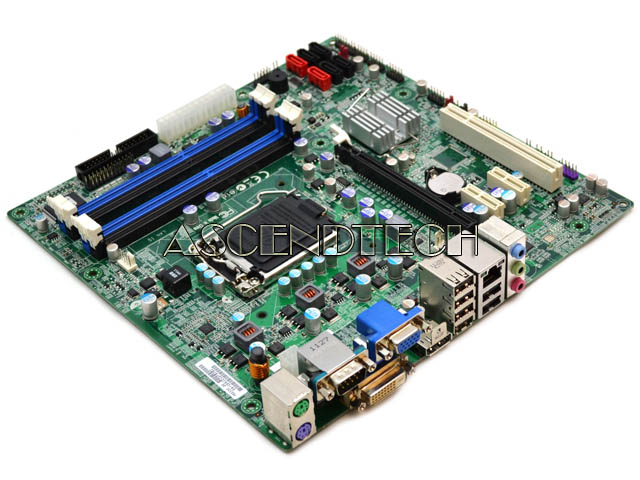

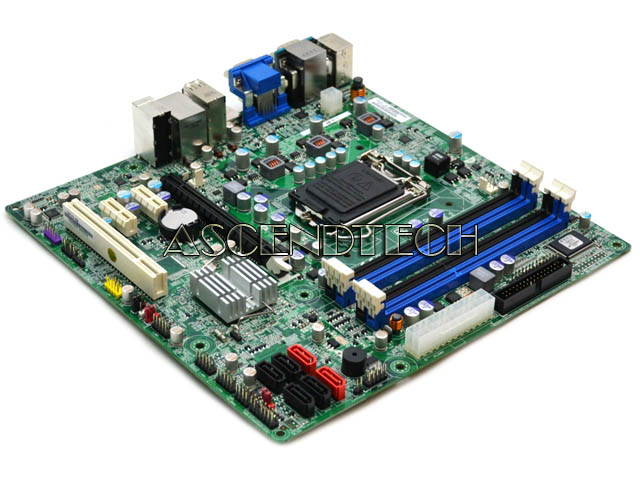

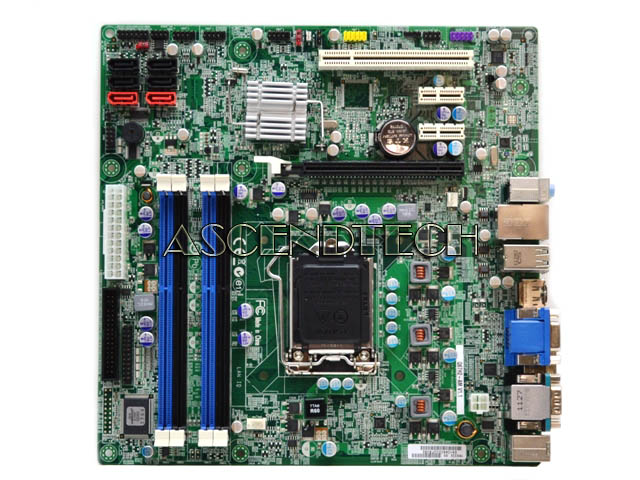

ECS Q67H2-AM V1.1 DDR3 LGA1155 Micro ATX Intel Q67 Desktop Motherboard. ECS meets the current and future demands of high performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications as well as for standard home use.

Compatible Acer Models: Acer Veriton M4610 Series

Specifications:

CPU	Support Processor Type: Intel 2nd Generation, Core i7, Core i5, Core i3, Pentium (Dual Core)
Socket Type	LGA 1155
Chipset	Intel Q67
Video	Intel HD Graphics
Memory	4x 240-pin DDR3 DIMM Slots Supports Dual Channel DDR3 1333 MHz non-ECC, Un-buffered Memory (Max 16GB on 64-bit Operating Systems)
Expansion Slots	1x PCI Express x16 2x PCI Express x1 1x PCI
Storage	2x SATAIII 6Gb/s Connectors (red color) 4x SATAII 3Gb/s Connectors (black color)
Audio	Realtek ALC662 – High Definition
LAN	Intel – (Gigabit)

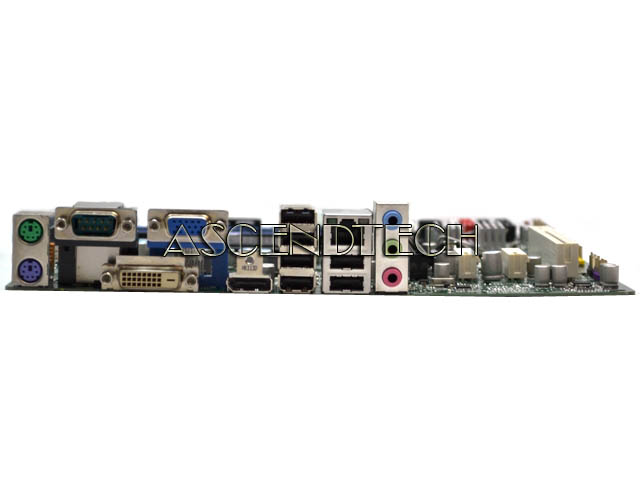

Rear Panel	1x VGA Port 1x Audio I/O 6x USB Ports 1x Serial Port 1x DVI-D Port 1x Display Port 1x RJ45 LAN Port
Internal	1x 24-pin ATX Power connector 1x 4-pin ATX 12V Power connector 1x 4-pin CPU Fan connector 1x 3-pin Rear System Fan connector 1x Clear CMOS jumper 1x Battery socket (3V) 1x Front Panel header 1x Front Audio header 2x USB headers 1x Floppy header
Form Factor	Micro-ATX
